GlobalSpiral Female JIC 37 Flare Swivel Coupling, 16GS-16FJX XBULK
Product Overview

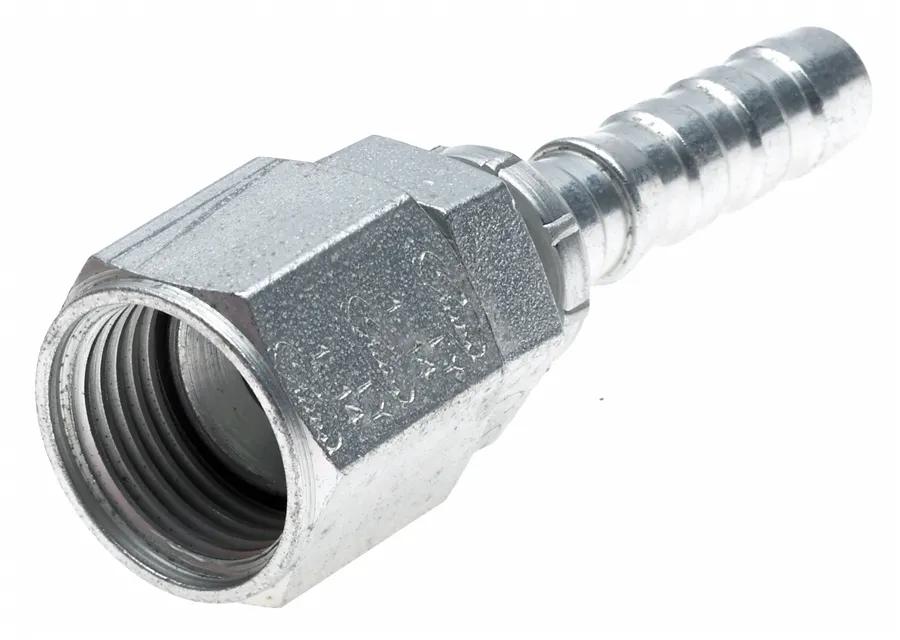

Gates GlobalSpiral couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor-made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors, and contamination of the fluid power system. Maximum application coverage - GlobalSpiral couplings are available in more than 80 thread configurations, making it easier to find the right fit for your assembly. GlobalSpiral thread ends handle working pressures up to 6,000 psi. Coated with TuffCoat plating, offering more than five times better corrosion resistance than SAE ASTMB117 specification.GlobalSpiral Coupling, Female JIC 37 deg Flare Swivel Connection Type 1, Hose Connection Type 2, 6000 psi Operating Pressure, 5.669 in Length
Features & Benefits
- Maximum Application Coverage - Globalspiral Couplings are Available in More Than 80 Thread Configurations, so Finding the Right Fit for Your Assembly has Never Been Easier.
- Surpasses one million impulse cycles. Innovative, two-piece, no-skive design.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention.
- The GlobalSpiral Two-Piece Configuration Greatly Reduces the Chance of Assembly Error.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & Contamination of the Fluid Power System.
- GlobalSpiral Couplings Surpassed One Million Impulse Cycles at +250 Deg. F (+121 Deg. C) w/o Causing Stress Cracks in the Hose Tubing.
- Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types.
- Reduces assembly time, labor, fabrication errors and contamination.
- Note: MGS Couplings For Use w/ MC4-20 Crimper Only.
- Coated w/ TuffCoat Plating - More Than Five Times Better Corrosion Resistance Than SAE ASTMB117 Specification.
- Machined from Unleaded Steel Bar Stock, GlobalSpiral Thread Ends are Able to Handle Working Pressures Up to 6,000 PSI.
- Surpasses one million impulse cycles
Specifications
| Application | Assemblages de flexibles hydrauliques avec flexible à fil spiralé |
| Finition | Placage TuffCoat |
| Hauteur | 1-1/2 po |
| Longueur | 4-19/64 po |
| N° de pièce d'origine | G20170-1616X |
| Numéro de produit | 73472455 |
| Filetage | 1-5/16 po-12 |
| Type | Pivotant évasé JIC 37 femelle GlobalSpiral |
| Width | 1-1/2 po |
| Connection Type 1 | Female JIC 37 deg Flare Swivel |
| Connection Type 2 | Hose |
| Operating Pressure | 6000 psi |
| Standards | Résistance à la corrosion plus de cinq fois supérieure à la spécification SAE ASTMB117 |
| Product Category | Raccord GlobalSpiral |
| Weight | 0,75 lb (0,34 kg) |
Interchanges & Equivalent parts:
| G20170-1616X |
| 73472455 |
