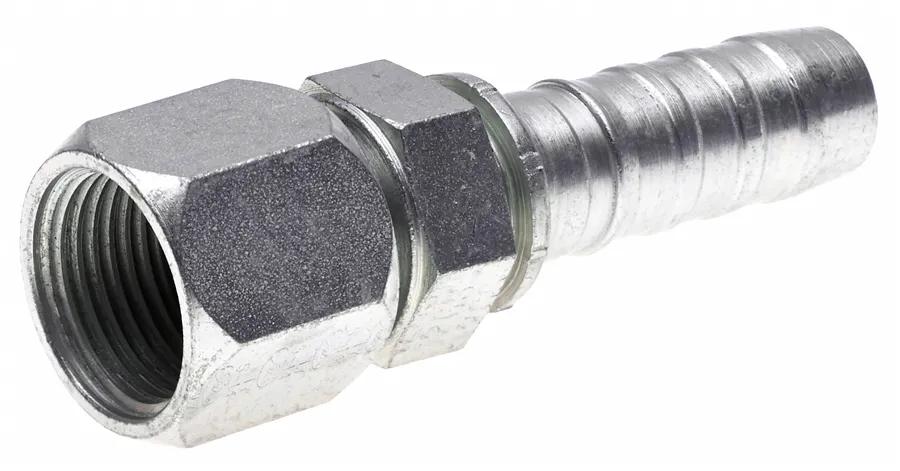

GlobalSpiral Female MegaSeal Swivel, 20GS-20FMX
#GATG20140-2020
Product Overview
Gates GlobalSpiral No-Skive Coupling Design Provides Superior Performance for Extremely High-Pressure, High-Impulse Spiral-Wire Hydraulic Hose Applications.
Features & Benefits
- Maximum Application Coverage - Globalspiral Couplings are Available in More Than 80 Thread Configurations, so Finding the Right Fit for Your Assembly has Never Been Easier.
- By Pulling the Ferrule Away From the Hose End, it's Easier to See When the Stem is Fully & Securely Inserted Into the Hose.
- The Two-Piece Design Potentially Reduces Inventory by 30 Percent Since Only One Stem is Required for All Spiral Wire Hose Types.
- The Innovative Two-Piece, No-Skive Design Allows for Fast, Tailor Made Assemblies.
- Unique Bite-the-Wire Crimp Design Allows for Improved Coupling Retention & Blow-Off Prevention.
- The GlobalSpiral Two-Piece Configuration Greatly Reduces the Chance of Assembly Error.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & Contamination of the Fluid Power System.
- GlobalSpiral Couplings Surpassed One Million Impulse Cycles at +250 Deg. F (+121 Deg. C) w/o Causing Stress Cracks in the Hose Tubing.
- Note: MGS Couplings For Use w/ MC4-20 Crimper Only.
- Coated w/ TuffCoat Plating - More Than Five Times Better Corrosion Resistance Than SAE ASTMB117 Specification.
- Machined from Unleaded Steel Bar Stock, GlobalSpiral Thread Ends are Able to Handle Working Pressures Up to 6,000 PSI.
Specifications
| Coupling Description | GlobalSpiral Female MegaSeal Swivel |
| Cut Off (in) – C | 2-9/16 in (6.5 cm) |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8000 psi |
| Industrial Description | 20GS-20FMX |
| Inside Diameter | 1-1/4 in (3.18 cm) |
| Length | 5-23/64 in (13.61 cm) |
| Nut Hex (in) – H2 | 5/64 in (0.2 cm) |
| Nut Hex Size | 2 in (5.08 cm) |
| Stem Hex (in.) | 1-7/8 in (4.78 cm) |
| Thread | 1-5/8 in-12 |
| Type | GlobalSpiral Female MegaSeal Swivel |
Interchanges & Equivalent parts:
| G20140-2020 |
| 734769645 |
