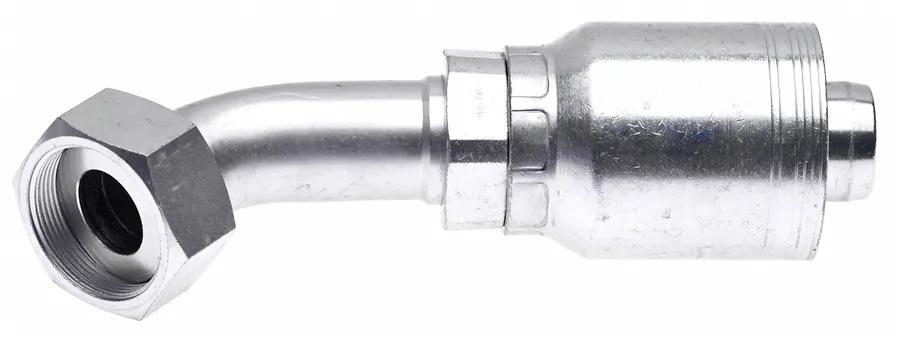

GlobalSpiral Female Swivel, 45*, 24GSM4K-24FFORX45-038
#GATG24234-2424
Product Overview
As Mobile Equipment Platforms Become More Compact & Powerful, They Require Larger Diameter Hydraulic Hose w/ Higher Working Pressures to Meet Performance Demands.
Features & Benefits
- Features: Flexible, Easier-to-Route Hose Assembly to Replace 2 in. Rigid Pipe on Crowded Equipment Platforms, Stem Machined From a Single Piece of Solid Steel for Greater Strength & Integrity, No-Skive Design Reducing the Risk of Blow-Offs and Leaks.
- This Unique Coupling Offers Greater Power & Capacity Than Existing Equipment by Replacing 2 in., 5000 PSI Hose Assemblies.
- The Assembly Exceeds All Performance Requirements of SAE, ISO & EN.
- Large Equipment Used in Industries Like Mining, Oil & Gas, & Construction Are Pushing Current Hose Size & Pressure Limits. To Meet This Demand, Gates Introduced an Industry First: The 32GSM No-Skive Coupling.
- During Testing, the 32GSM Coupling & -32 EFG6K & EFG6K-MTF Hose Assemblies Withstood 1,000,000 Impulse Cycles at +250 Deg. F (+121 Deg. C) w/o Evidence of Stress Cracks in the Tubing.
Specifications
| Coupling Description | GlobalSpiral MAX Pressure Female Flat-Face Swivel - 45 Bent Tube |
| Cut Off (in) – C | 5-9/16 in (14.12 cm) |
| Drop (in.) | 1-1/2 in (3.81 cm) |
| Hose Recommendation | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15; EFG5K - SAE 100R13 |
| Industrial Description | 24GSM4K-24FFORX45-038 |
| Inside Diameter | 1-1/2 in (3.81 cm) |
| Length | 9-5/16 in (23.65 cm) |
| Nut Hex (in) – H2 | 2-23/64 in (5.99 cm) |
| Nut Hex Size | 60 in (152.4 cm) |
| Type | GlobalSpiral MAX Pressure Female Flat-Face Swivel - 45 deg Bent Tube |
Interchanges & Equivalent parts:
| G24234-2424 |
| 734102455 |
