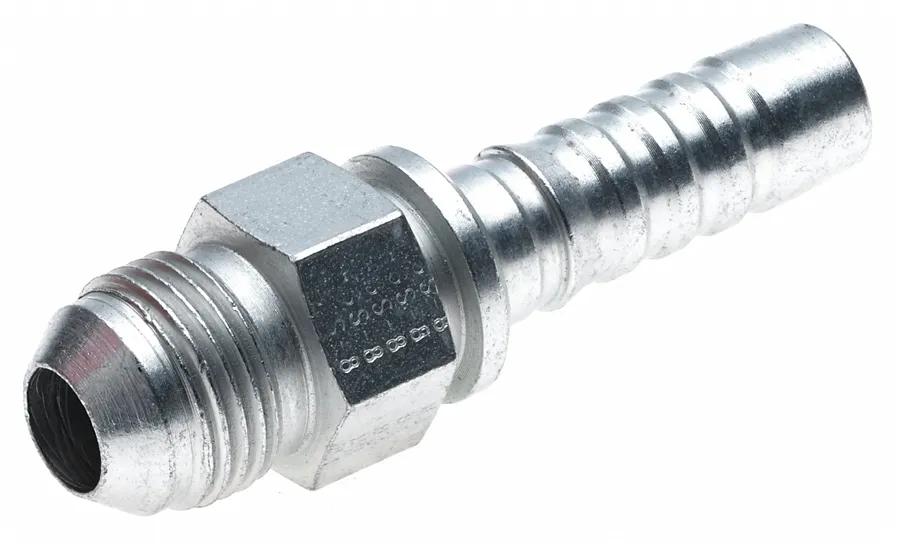

GlobalSpiral Male JIC 37 Flare, 8GS-10MJ
#GATG20165-0810
Product Overview
Gates GlobalSpiral No-Skive Coupling Design Provides Superior Performance for Extremely High-Pressure, High-Impulse Spiral-Wire Hydraulic Hose Applications.
Features & Benefits
- Maximum Application Coverage - Globalspiral Couplings are Available in More Than 80 Thread Configurations, so Finding the Right Fit for Your Assembly has Never Been Easier.
- Surpasses one million impulse cycles. Innovative, two-piece, no-skive design.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention.
- The GlobalSpiral Two-Piece Configuration Greatly Reduces the Chance of Assembly Error.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & Contamination of the Fluid Power System.
- GlobalSpiral Couplings Surpassed One Million Impulse Cycles at +250 Deg. F (+121 Deg. C) w/o Causing Stress Cracks in the Hose Tubing.
- Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types.
- Reduces assembly time, labor, fabrication errors and contamination.
- Note: MGS Couplings For Use w/ MC4-20 Crimper Only.
- Coated w/ TuffCoat Plating - More Than Five Times Better Corrosion Resistance Than SAE ASTMB117 Specification.
- Machined from Unleaded Steel Bar Stock, GlobalSpiral Thread Ends are Able to Handle Working Pressures Up to 6,000 PSI.
Specifications
| Description d'accouplement | GlobalSpiral Male JIC 37 Flare |
| Coupure (po) – C | 1-31/64 po (3,76 cm) |
| Hose Recommendation | Tuyau hydraulique à quatre et six fils en spirale All Gates MegaSys jusqu'à 8 000 psi |
| Industrial Description | 8GS-10MJ |
| Inside Diameter | 1/2 po (1,27 cm) |
| Length | 2-61/64 po (7,49 cm) |
| OEM Part # | G20165-0810 |
| Product Number | 734722255 |
| Stem Hex (in.) | 7/8 po (2,24 cm) |
| Type | GlobalSpiral mâle JIC 37 Flare |
Interchanges & Equivalent parts:
| 28450-0810 |
| 284500810 |
| GYH28450-0810 |
| 1BA10MJ8 |
| G20165-0810 |
| 734722255 |
