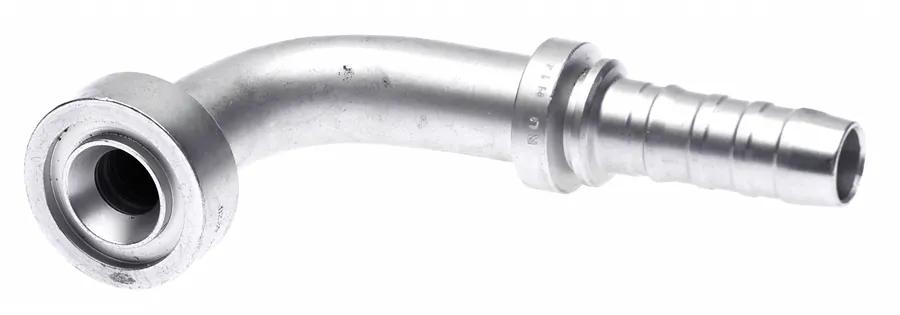

GlobalSpiral O-Ring Flange, 90*, 12GS-16FLC90-068
#GATG20415-1216
Product Overview
Gates GlobalSpiral No-Skive Coupling Design Provides Superior Performance for Extremely High-Pressure, High-Impulse Spiral-Wire Hydraulic Hose Applications.
Features & Benefits
- Maximum Application Coverage - Globalspiral Couplings are Available in More Than 80 Thread Configurations, so Finding the Right Fit for Your Assembly has Never Been Easier.
- By Pulling the Ferrule Away From the Hose End, it's Easier to See When the Stem is Fully & Securely Inserted Into the Hose.
- The Two-Piece Design Potentially Reduces Inventory by 30 Percent Since Only One Stem is Required for All Spiral Wire Hose Types.
- The Innovative Two-Piece, No-Skive Design Allows for Fast, Tailor Made Assemblies.
- Unique Bite-the-Wire Crimp Design Allows for Improved Coupling Retention & Blow-Off Prevention.
- The GlobalSpiral Two-Piece Configuration Greatly Reduces the Chance of Assembly Error.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & Contamination of the Fluid Power System.
- GlobalSpiral Couplings Surpassed One Million Impulse Cycles at +250 Deg. F (+121 Deg. C) w/o Causing Stress Cracks in the Hose Tubing.
- Note: MGS Couplings For Use w/ MC4-20 Crimper Only.
- Coated w/ TuffCoat Plating - More Than Five Times Better Corrosion Resistance Than SAE ASTMB117 Specification.
- Machined from Unleaded Steel Bar Stock, GlobalSpiral Thread Ends are Able to Handle Working Pressures Up to 6,000 PSI.
Specifications
| Coupling Description | GlobalSpiral Caterpillar Style O-Ring Flange - 90 Bent Tube |
| Cut Off (in) – C | 2-19/32 in (6.58 cm) |
| Diameter | 1-7/8 in (4.78 cm) |
| Drop (in.) | 2-11/16 in (6.83 cm) |
| Flange Head Thickness (in) – F | 9/16 in (1.42 cm) |
| Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8000 psi |
| Industrial Description | 12GS-16FLC90-068 |
| Inside Diameter | 3/4 in (1.91 cm) |
| Length | 4-39/64 in (11.71 cm) |
| Type | GlobalSpiral Caterpillar Style O-Ring Flange - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| G204151216 |
| 1E16CTB12 |
| G20415-1216 |
| 734773955 |
