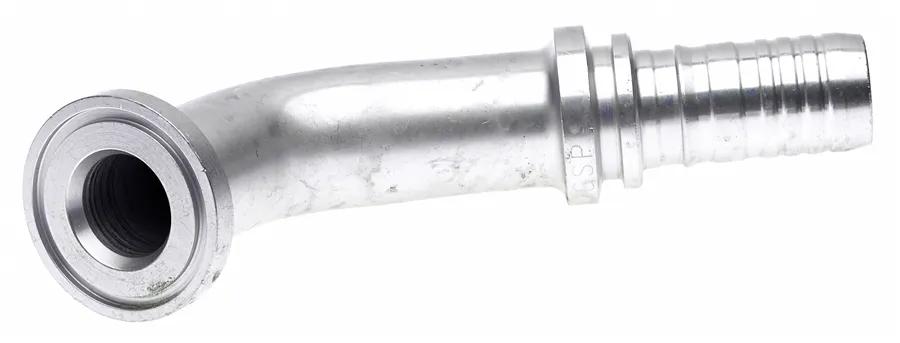

GlobalSpiral Plus Code 61 O-Ring Flange, 60*, 32GSP-32FL60S
#GATG22309-3232
Product Overview
Gates GlobalSpiral Plus No-Skive Couplings Are For Use on 1 1/2 in. & 2 in. Spiral & Wire Braid Hoses Requiring a Working Pressure of 3000 PSI or Less.
Features & Benefits
- -24FL Maximum Working Pressure 3,000 PSI; -32FL Maximum Working Pressure 3,000 PSI. S, M & L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
- Separate Ferrules Are Required for 4-Spiral Hose & Wire Braid Hose.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & the Contamination of the Fluid Power System.
- Just Like GlobalSpiral Couplings, the Innovative, 2-Piece, No-Skive Design is Fast, Secure & Allows for Tailor Made Assemblies.
Specifications
| Coupling Description | GlobalSpiral Plus Code 61 O-Ring Flange - 60 Bent Tube |
| Cut Off (in) – C | 6-9/16 in (16.66 cm) |
| Diameter | 2-13/16 in (7.14 cm) |
| Drop (in.) | 2-61/64 in (7.49 cm) |
| Flange Head Thickness (in) – F | 3/8 in (0.97 cm) |
| Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Industrial Description | 32GSP-32FL60S |
| Inside Diameter | 2 in (5.08 cm) |
| Length | 10-13/64 in (25.91 cm) |
| Pressure | 3000 psi (206.84 bar) |
| Type | GlobalSpiral Plus Code 61 O-Ring Flange - 60 deg Bent Tube |
Interchanges & Equivalent parts:
| G22309-3232 |
| 734745805 |
