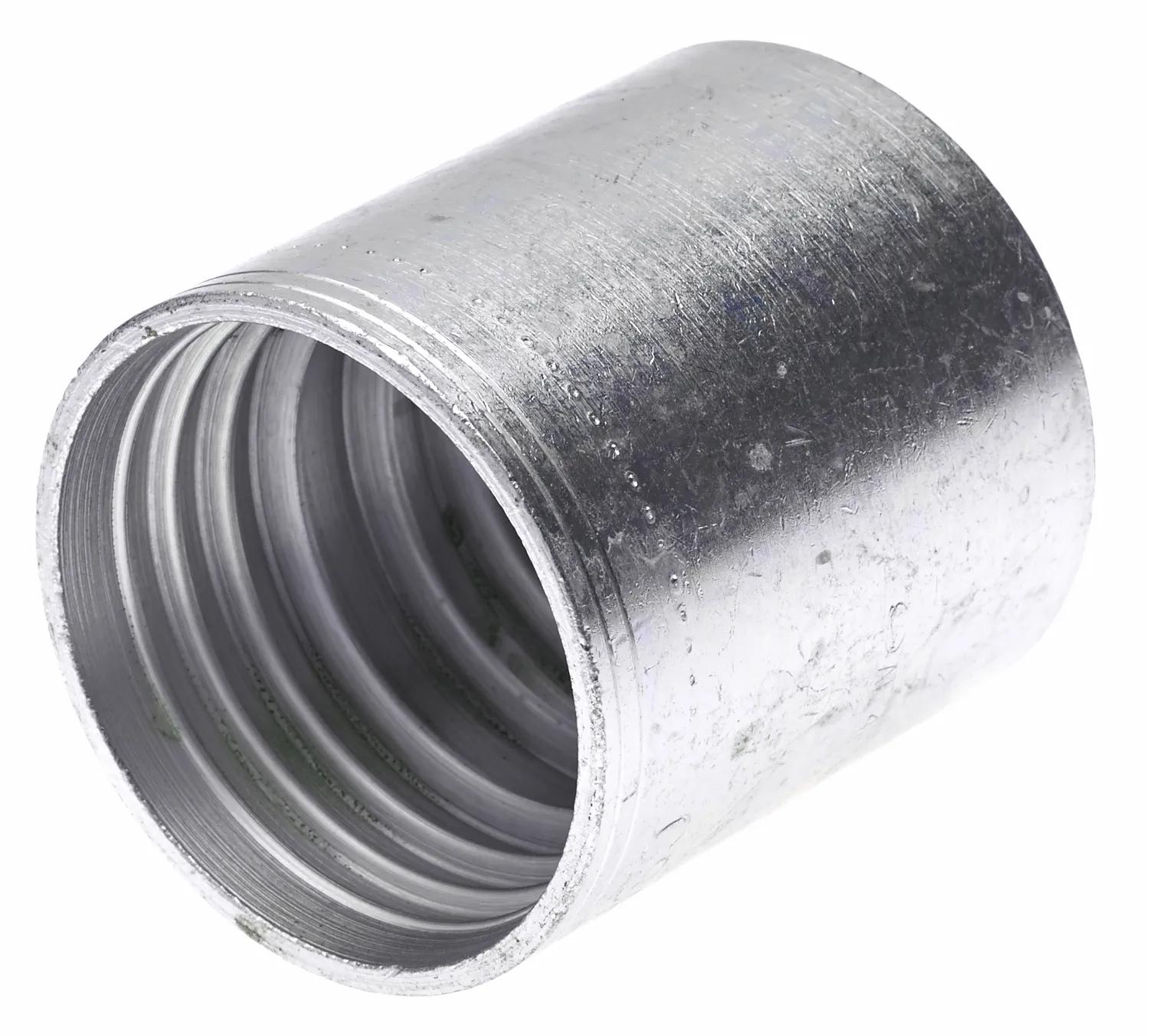

GlobalSpiral Plus GSP Ferrule for Wire Braid Hose, 32GSP1F-2
#GATG22995-0232
Product Overview
Gates GlobalSpiral Plus No-Skive Couplings Are For Use on 1 1/2 in. & 2 in. Spiral & Wire Braid Hoses Requiring a Working Pressure of 3000 PSI or Less.
Features & Benefits
- Surpasses one million impulse cycles. Innovative, two-piece, no-skive design.
- Separate Ferrules Are Required for 4-Spiral Hose & Wire Braid Hose.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & the Contamination of the Fluid Power System.
- Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types.
- Reduces assembly time, labor, fabrication errors and contamination.
Specifications
| Description d'accouplement | GlobalSpiral Plus GSP Ferrule for Wire Braid Hose |
| Recommandations pour le tuyau | Tuyau hydraulique extrêmement haute pression Gates (-24 et -32) |
| Description industrielle | 32GSP1F-2 |
| Diamètre intérieur | 2 po (5,08 cm) |
| Longueur | 3-35/64 po (9,02 cm) |
| N° de pièce d'origine | G22995-0232 |
| Diamètre extérieur | 3-19/64 po (8,38 cm) |
| Numéro de produit | 734703185 |
| Type | Embout GlobalSpiral Plus GSP pour tuyau tressé |
Interchanges & Equivalent parts:
| G22995-0232 |
| 734703185 |
