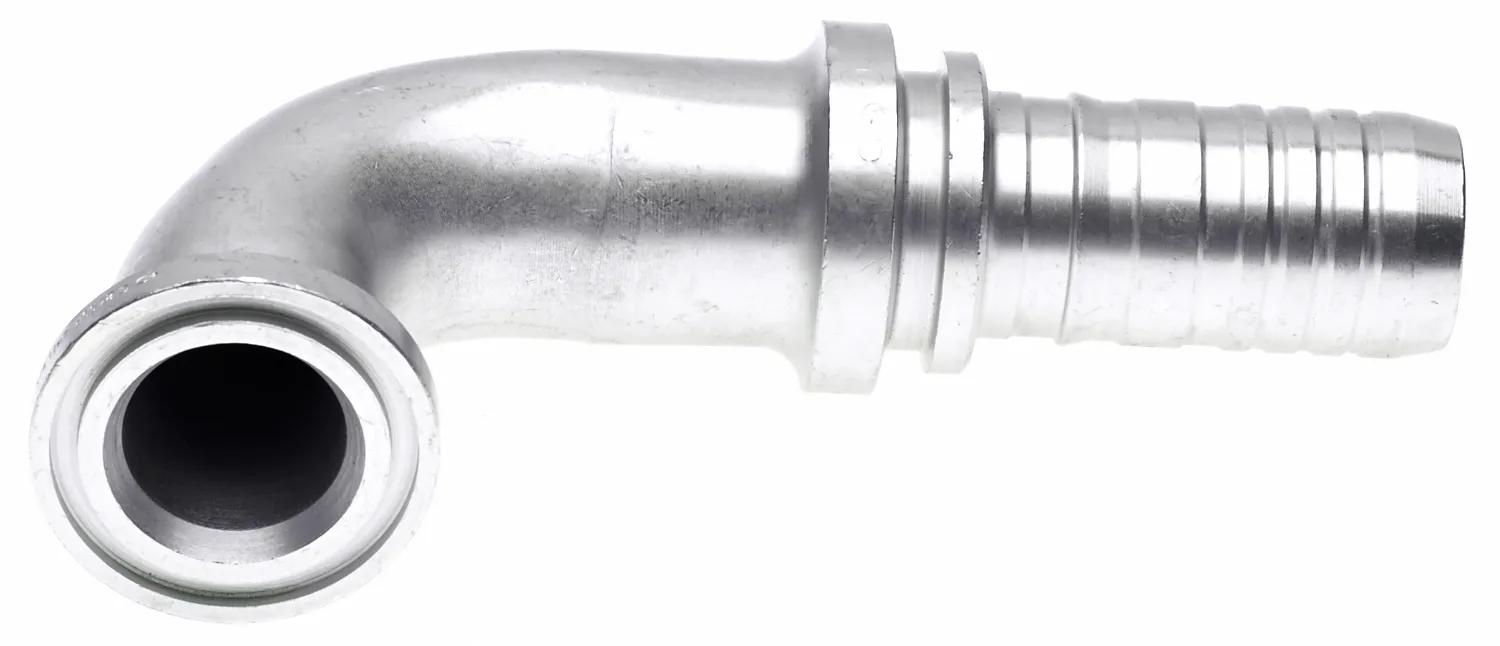

GlobalSpiral Plus O-Ring Flange, 90*, 24GSP-32FL90-080
#GATG22315-2432
Sommaire du produit
Gates GlobalSpiral Plus No-Skive Couplings Are For Use on 1 1/2 in. & 2 in. Spiral & Wire Braid Hoses Requiring a Working Pressure of 3000 PSI or Less.
Caractéristiques et avantages
- Surpasses one million impulse cycles. Innovative, two-piece, no-skive design.
- Separate Ferrules Are Required for 4-Spiral Hose & Wire Braid Hose.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & the Contamination of the Fluid Power System.
- Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types.
- Reduces assembly time, labor, fabrication errors and contamination.
Spécifications
| Coupling Description | GlobalSpiral Plus Code 61 O-Ring Flange - 90 Bent Tube |
| Cut Off (in) – C | 4 in (10.16 cm) |
| Diameter | 2-13/16 in (7.14 cm) |
| Drop (in.) | 3-5/32 in (8.03 cm) |
| Flange Head Thickness (in) – F | 3/8 in (0.97 cm) |
| Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Industrial Description | 24GSP-32FL90-080 |
| Inside Diameter | 1-1/2 in (3.81 cm) |
| Length | 6-63/64 in (17.73 cm) |
| Note | -24FL Max. W.P. 3000 psi; -32FL Max. W.P. 3000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings. |
| OEM Part # | G22315-2432 |
| Pressure | 3000 psi (206.84 bar) |
| Product Number | 734747745 |
| Type | GlobalSpiral Plus Code 61 O-Ring Flange - 90 deg Bent Tube |
Interchanges et pièces équivalentes:
| G22315-2432 |
| 734747745 |
