Goodyear

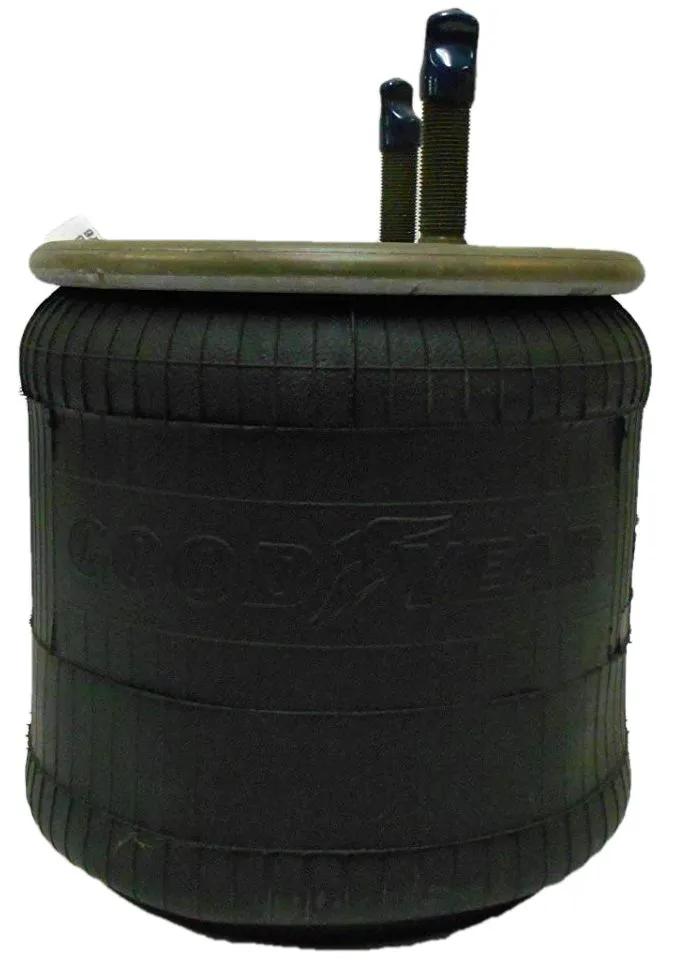

GOODYEAR AIR SPRING
#ARB1R12-092
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Firestone W01-358-9082, ContiTech 9 10-16 P 310, Dayton 352-9082, Fleetride 1R12-1053, Granning 2727, HAD PMABG-9082, International 36514-7, International B-2066, International 517559C9, Neway 905-57-006, Neway 905-57-027, Neway 905-57-037, Neway 905-57-054, Neway 905-57-075, Neway AR-1315-1-F, Neway AR-1315-1-G, Nova Bus N39112, Reyco 12882-01, Ridewell 1003589082C, Ridewell S-542-C, Toyo TRL-240/393, Watson & Chalin AS-0011
Specifications
| Air Spring Type | Rolling Lobe |
| Bead Plate (Top) Mounting Bolts Dimension Center to Center | 5-1/2 in (13.97 cm) |
| Bellows | Automann 1DK23K, Firestone 1T15M-6, Goodwill 566243163, Contitech 9 10-16, Triangle 6363 |
| Bottom Plate Alignment | 45 deg |
| Bottom Plate Diameter | 10-3/32 in (25.63 cm) |
| Bottom Plate Hole Stud Qty | 4 |
| Bumper | Yes |
| Compressed Length | 7-45/64 in (19.56 cm) |
| Contitech Bellow # | 9 10-16 |
| Firestone Bellows Number | 1T15M-6 |
| Goodyear Bellow # | 566243163 |
| Height | 14 in (35.56 cm) |
| Length | 12 in (30.48 cm) |
| Maximum Height | 21-3/32 in (53.57 cm) |
| Plate Type | Aluminum |
| Quantity | 1 |
| Top Plate Diameter | 9 in (22.86 cm) |
| Top Plate Hole Count | 2 |
| Triangle Bellows Number | 6363 |
| Type | Rolling Lobe Air Springs |
| Weight | 21 lb (9.52 kg) |
| Width | 12 in (30.48 cm) |
