Goodyear

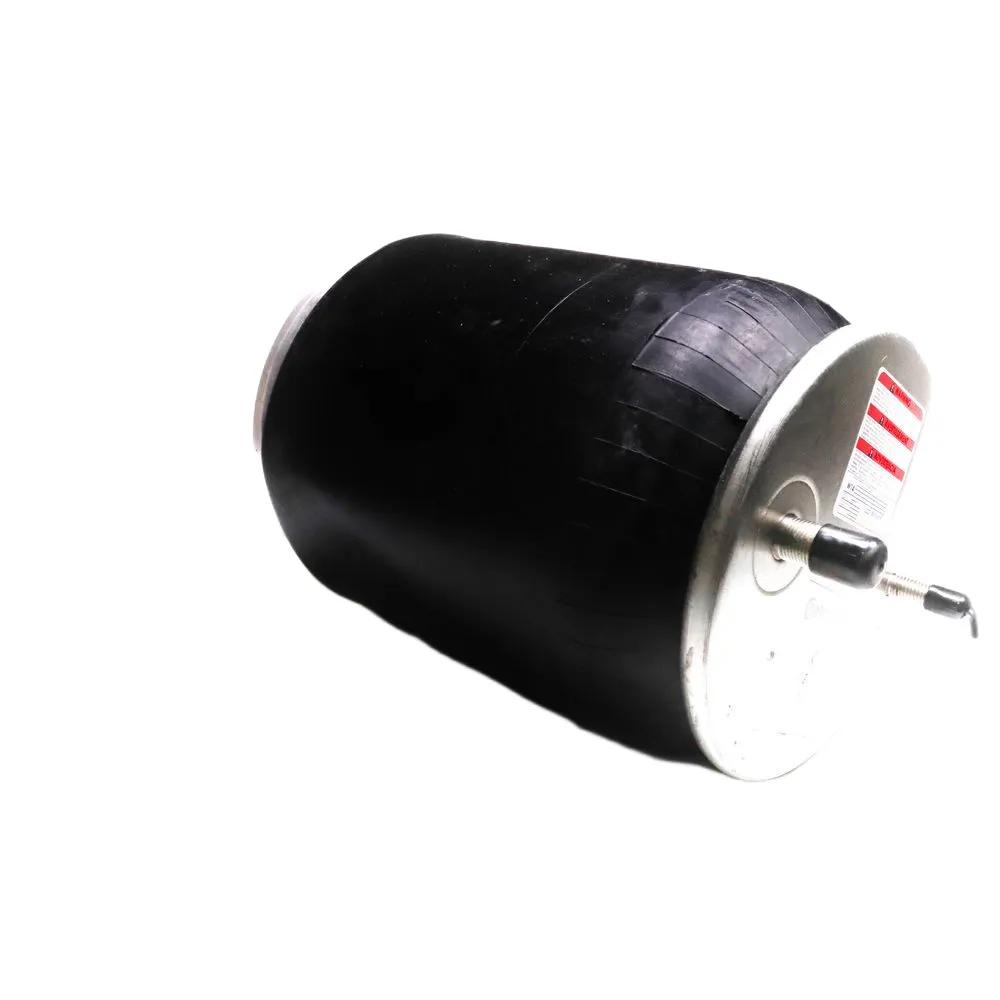

GOODYEAR AIR SPRING
#ARB1R13-115
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Firestone W01-358-9250, ContiTech 9 10D-21 A 324, Ridewell 1003589250C, Watson & Chalin AS-0096
Specifications
| Air Spring Type | Rolling Lobe |
| Bead Plate (Top) Mounting Bolts Dimension Center to Center | 5-1/2 in (13.97 cm) |
| Bellows | Automann 1DK23S, Firestone 1T15V-11, Goodwill 566263044, Contitech 9 10D-21, Triangle 6371 |
| Bottom Plate Alignment | 45 deg |
| Bottom Plate Diameter | 10-1/8 in (25.73 cm) |
| Bottom Plate Hole Stud Qty | 4 |
| Bumper | Yes |
| Compressed Length | 9-13/32 in (23.9 cm) |
| Contitech Bellow # | 9 10D-21 |
| Firestone Bellows Number | 1T15V-11 |
| Goodyear Bellow # | 566263044 |
| Height | 16 in (40.64 cm) |
| Length | 12 in (30.48 cm) |
| Maximum Height | 27 in (68.58 cm) |
| Plate Type | Aluminum |
| Quantity | 1 |
| Top Plate Diameter | 9 in (22.86 cm) |
| Top Plate Hole Count | 2 |
| Triangle Bellows Number | 6371 |
| Type | Rolling Lobe Air Springs |
| Weight | 24 lb (10.88 kg) |
| Width | 12 in (30.48 cm) |
