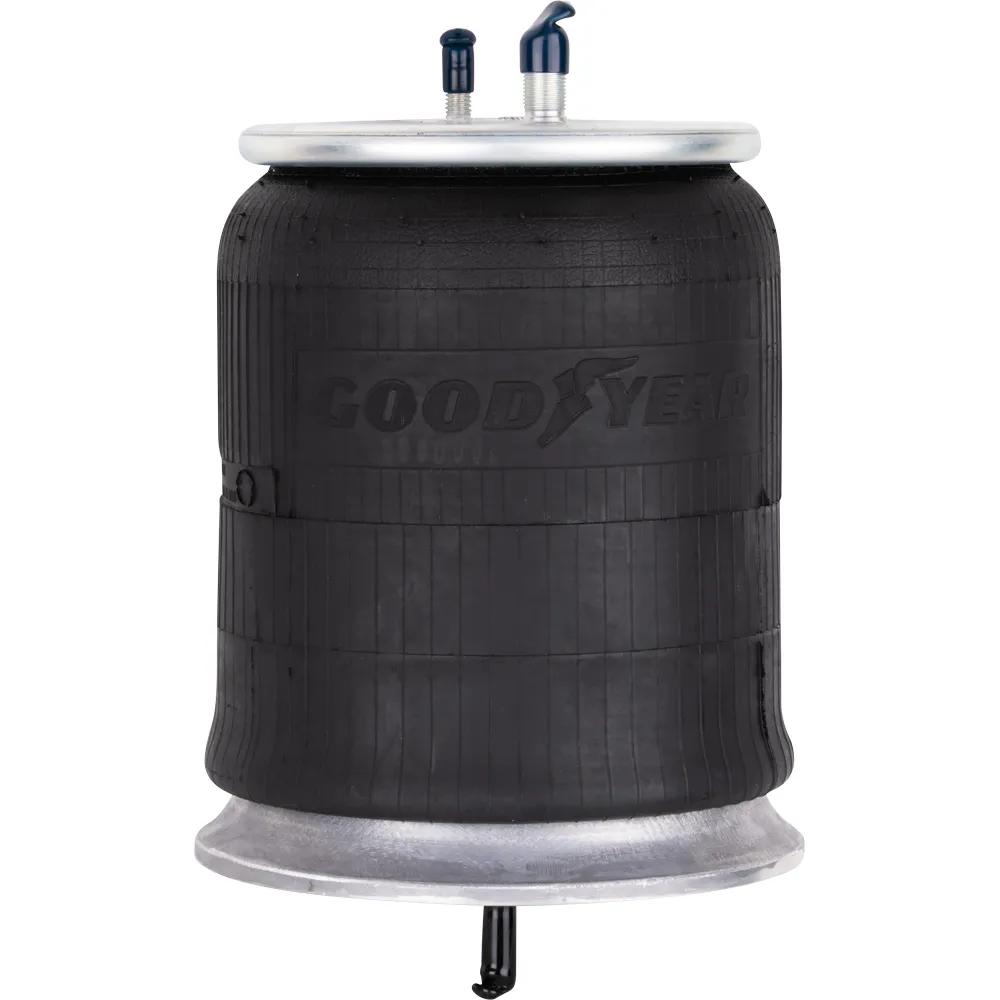

Goodyear Air Spring, Rolling Lobe, Aluminum Piston, 8.6 in Compressed Length, 19 in Extended Length

#ARB1R12-603

Product Overview


Super-Cushion air springs for trucks, trailers, buses, and cab and seat springs protect cargo, provide constant-level hauling, and deliver long, trouble-free service. Super-Cushion air springs give your trucks, trailers, and buses a new high in productivity and long life. They offer a quiet, cushioned ride. Truck, trailer, and bus bodies last longer than with steel springs because there is less vibration. The driver rides in greater comfort, becomes less fatigued, and stays more alert. Plus cargo has better protection from shock and vibration. Whenever you want to add an axle, Super-Cushion air springs fit right in. Super-Cushion air springs, when used with leveling valves, also maintain consistent trim regardless of the load. That means clearance heights remain constant, and trailer floors are flush with loading dock floors for ease of loading and unloading. For driver comfort, load cushioning, and long life for your trucks, trailers, bus, and cab and seat springs specify Goodyear engineered products Super-Cushion air springs.Air Spring, Rolling Lobe Air Spring, Aluminum Piston, 8.6 in Compressed Length, 19 in Extended Length

See More
See Less

Features & Benefits


  • Superior Rubber Chemistry
  • Reduced Weight
  • Internal Wall Cord
  • Comfort
  • Equipment Longevity

Specifications


Air Inlet 1/4 in NPTF
Air Spring Type Rolling Lobe
Bead Plate (Top) & Deflated Bellows O.D. 8.6 in @ 19 in
Bellows 566243108
Bottom Plate Diameter 10-5/8 in
Bottom Plate Alignment Parallel
Bottom Stud Configuration 1/2 in-13 UNC
Bottom Plate Hole/Stud Qty 1
Bumper No
Compressed Length 8.6 in
Contitech Bellow # 9 10S-16
Extended Length 19 in
Firestone Bellows Number 1T15ZR-6
Piston Height 6-29/32 in
Piston Number 566-20-7-322
Plate Type Aluminum
Top Bead Plate Hardware Key Bold or Stud 1/2-13 in
Top Plate Diameter 9 in
Top Plate Hole/Stud Qty 2
Triangle Bellows Number 6363
Type Air Springs
Weight 16.5 lb (7.48 kg)
Product Category Air Spring

Interchanges & Equivalent parts:


1R12-603
ZAGA9781
W01-358-9781
566-24-3-274
1R12603
A6813200017
AS9780A
GOD1R12603
W013589781
W013778536
CON73389
16-19465-000
1R12-1064
1R12-1082
566-20-7-322
566-24-3-108
64266
6813200017
8382
9 10-16 A 382
9781
A16-14004-000
A16-14004-001
AB1DF23-9781
