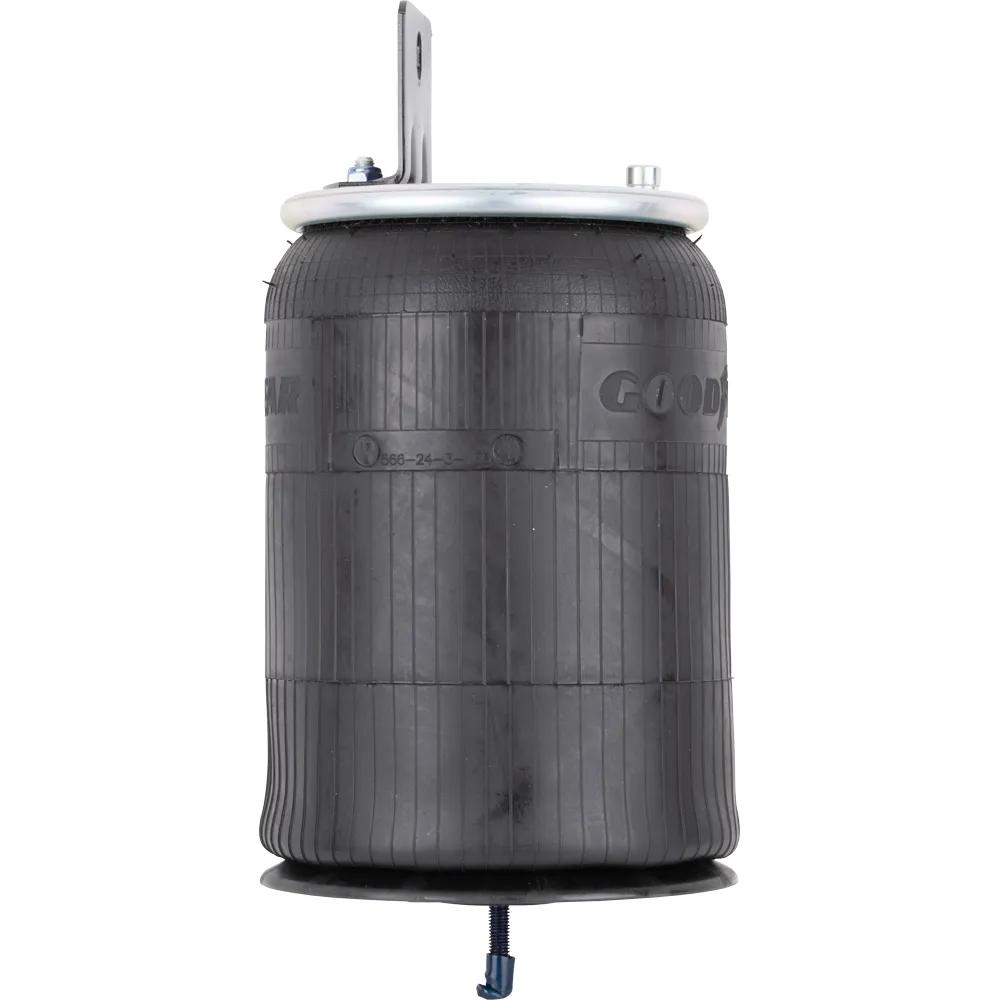

Goodyear Air Spring - Rolling Lobe, Composite Piston, 6.7 in Compressed Length, 23 in Extended Length

#ARB1R12-432

Product Overview


Super-Cushion air springs for trucks, trailers, buses, and cab and seat springs protect cargo, provide constant-level hauling, and deliver long, trouble-free service. These air springs offer a quiet, cushioned ride, reducing vibration to extend the life of truck, trailer, and bus bodies. Drivers benefit from greater comfort, reduced fatigue, and increased alertness. Cargo is better protected from shock and vibration. Super-Cushion air springs fit easily when adding an axle and, when used with leveling valves, maintain consistent trim regardless of load, keeping clearance heights constant and trailer floors flush with loading docks for easy loading and unloading. Specify Goodyear engineered Super-Cushion air springs for driver comfort, load cushioning, and long service life.Air Spring, Rolling Lobe Air Spring, Composite Piston, 6.7 in Compressed Length, 23 in Extended Length, 4.38 in Width

See More
See Less

Features & Benefits


  • Superior Rubber Chemistry
  • Reduced Weight
  • Internal Wall Cord
  • Comfort
  • Equipment Longevity

Specifications


Air Inlet 1/4 in NPT
Air Spring Type 1 Solid Sleeve / Rolling Lobe
Bead Plate (Top) & Deflated Bellows O.D. 9 in @ 10 in
Bellows Automann 1DK23R, Firestone 1T15MBTW-10, Goodwill 566243165, Contitech 9 10BP-20
Bottom Plate Diameter 10 in
Bottom Plate Alignment Parallel
Bottom Stud Configuration 1/2 in-13 UNC
Bottom Plate Hole/Stud Qty 4
Bracket Yes
Bumper No
Compressed Length 6.7 in
Contitech Bellow # 9 10BP-20
Extended Length 23 in
Firestone Bellows Number 1T15XR-9
Piston Height 4-21/32 in
Plate Type Composite
Ride Height Constant trim regardless of load
Top Bead Plate Hardware Key Bold or Stud 1/2-13 in
Top Plate Diameter 9 in
Top Plate Hole/Stud Qty 2
Weight 12.2 lb (5.53 kg)
Width 4.38 in
Capacity Trucks, trailers, buses
Finish Composite
Includes Bracket
Product Category Air Spring

Interchanges & Equivalent parts:


1R12-432
1R12432
FLTA1R12432
GOD1R12432
GY1R12432
W013581191
CON79121
1R12-1077
350243C94
566-20-7-236
566-24-3-165
66908
9 10B-19.5 P 889
AB1DK23R-1731
ASP8890
