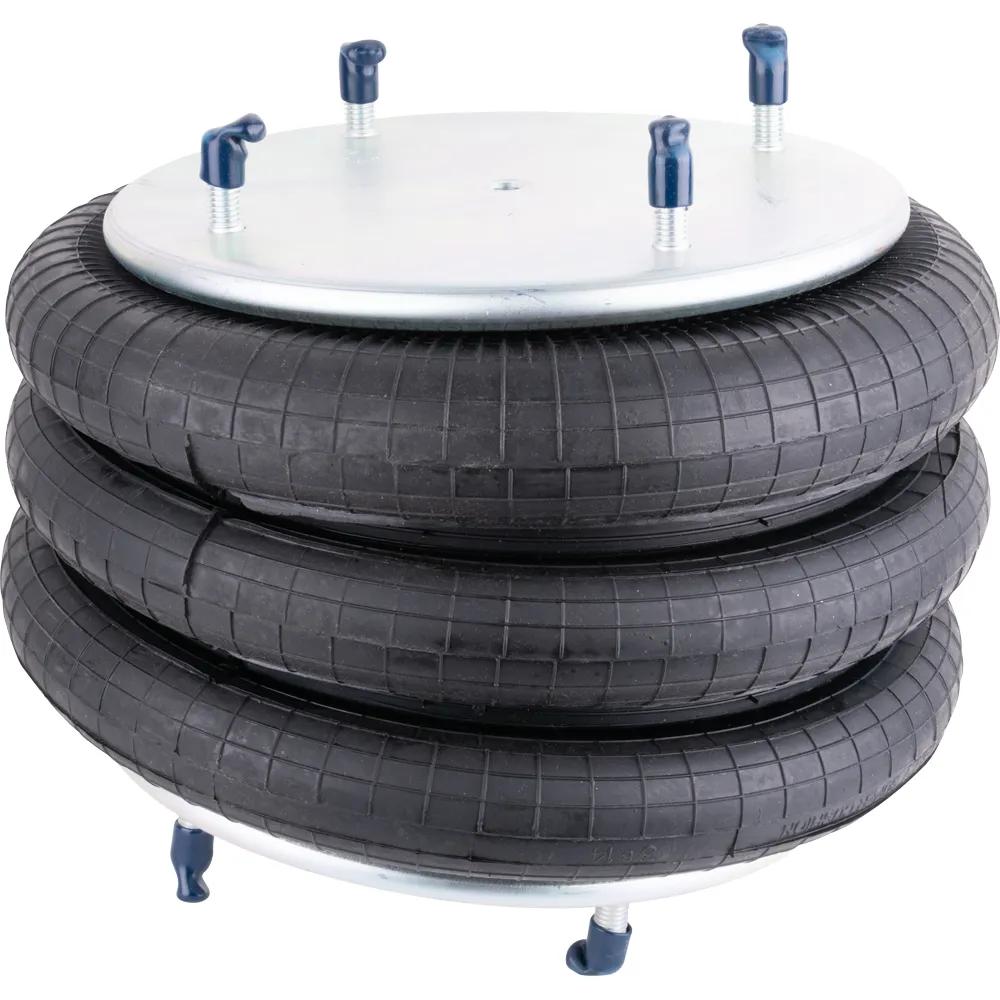

Goodyear Air Spring - Triple Convoluted - 4.9 in Compressed Length, 18 in Extended Length
Product Overview
Super-Cushion air springs for trucks, trailers, buses, and cab and seat springs protect cargo, provide constant-level hauling, and deliver long, trouble-free service. These air springs offer a quiet, cushioned ride, reducing vibration to extend the life of truck, trailer, and bus bodies. Drivers benefit from greater comfort and reduced fatigue, while cargo is better protected from shock and vibration. Super-Cushion air springs fit easily when adding an axle and, when used with leveling valves, maintain consistent trim regardless of load, keeping clearance heights constant and trailer floors flush with loading docks for easy loading and unloading. Specify Goodyear engineered Super-Cushion air springs for driver comfort, load cushioning, and long service life.Air Spring, Triple Convoluted Air Spring, 4.9 in Compressed Length, 18 in Extended Length
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Equipment Longevity
Specifications
| Air Spring Type | Triple Convoluted |
| Application | Trucks, trailers, buses, cab and seat springs |
| Bead Plate (Top) & Deflated Bellows O.D. | 11-5/16 in |
| Bellows | Automann SP3B32R, Firestone 313D was 313, Goodwill 578933350, Contitech FT 530-32, Triangle 6319 |
| Bottom Plate Diameter | 11-19/64 in |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Hole/Stud Qty | 4 |
| Bottom Stud Configuration | 3/8 in-16 UNC |
| Bumper | No |
| Compressed Length | 4.9 in |
| Contitech Bellow # | FT 530-32 |
| Extended Length | 18 in |
| Firestone Bellows Number | 313, 333 |
| Piston (Bottom) Mounting Bolt Dimensions Center to Center | 6-1/4 in |
| Ride Height | Maintains consistent trim regardless of load (implied) |
| Top Bead Plate Hardware Key | 4 x Threaded Hole 3/8-16 in Blind Nut on Bead Plates 1/2-13 in Pistons |
| Top Plate Diameter | 11-19/64 in |
| Top Plate Hole/Stud Qty | 4 |
| Triangle Bellows Number | 6319 |
| Fitting Size | 1/4 in NPTF |
| Includes | Leveling valves (implied from overview for maintaining consistent trim) |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| 1014 |
| 1476 |
| 3B14-359 |
| 7816 |
| 7818 |
| 7839 |
| AB7816 |
| AB7818 |
| AB7839 |
| W013587816 |
| W013587818 |
| W013587839 |
| 3917975 |
| 554803C1 |
| AS7818 |
| B6861 |
| FS7818 |
| G2297818500 |
| GBH3B14359 |
| GY3B14359 |
| GYR 3B14 359 |
| GYR3B14359 |
| S-13041 |
| 1003587818C |
| 3B14359 |
| 4325 |
| 4437 |
| CS314359 |
| E-FS7814 |
| E-FS7816 |
| E-FS7818 |
| FS7816 |
| RFS7816 |
| RFS7818 |
| S2685C |
| W01 358 7814 |
| W013587814 |
| 3B14359-CON64503 |
