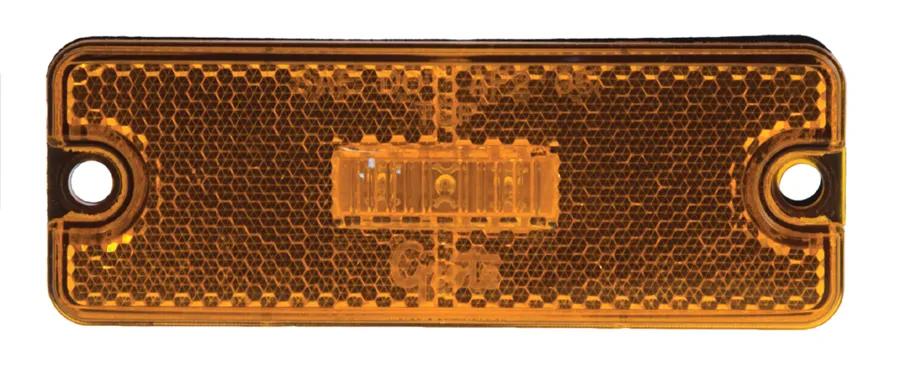

Grote Amber Rectangular LED Marker Clearance Light, Standard 0.180 in Male Bullet, PMMA Lens & Housing

#GRO47733

Product Overview


Grote's sealed rectangular LED clearance marker light is potted for total circuit board protection against moisture, vibration, and corrosion. It features a hermetic lens-to-housing seal and fits standard mounting holes with no bracket required. Uses the same .180 molded bullet terminations as incandescent versions for a quick, easy plug-and-go retrofit. Manufactured to meet or exceed OEM specifications in function, form, and fit.Clearance Marker Light, LED Bulb, Standard 0.180 in Male Bullet Connection Type, Screw Mounting, Amber Housing, Amber Lens, Amber Light Output, PMMA Lens, PMMA Housing, 0.04 A Current Rating, A, P2 Light Function, Rectangular, FMVSS 108 Standards, 12/24 V, 2 Years Warranty

See More
See Less

Features & Benefits


  • Resistant to vibration and corrosion
  • Hermetic seal prevents moisture ingress
  • LED technology for long-lasting illumination
  • No bracket required for standard mounting slots
  • Quick and easy retrofit with existing terminations
  • Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
  • Fits standard mounting holes, no bracket required
  • Hermetic lens to housing seal
  • Potted for total circuit-board protection against vibration and corrosion
  • Uses same 0.180 in molded bullet terminations as incandescent versions for a quick, easy retrofit

Specifications


Amps 0.04 amp
Bulb Type LED
Connection Type Standard 0.180 in Male Bullet
Housing Color Amber
Lens Color Amber
Mounting Type Screw
Mount Type Side Mount
Number Of Wires 2
Plug Side One .180 Bullet, Standard
Shape Rectangular
Standard FMVSS 108
Standards FMVSS 108
Technology LED
Type Marker Clearance Light
VMRS Code 034-004-253
Voltage Rating 12/24 V
Warranty 2 Years
Current Rating 0.04 A
Light Function A, P2
Light Output Color Amber
Product Category Clearance Marker Light

Interchanges & Equivalent parts:


47733
18300Y1
47733GR0
GRO 47733
GRO47733
ZBJ47733
ZBJD47733
21094733
7376-47733
TKL18050Y
TKL18300Y
0895PT
0898PT
0899PT
0906C
422279
18050Y
47242
