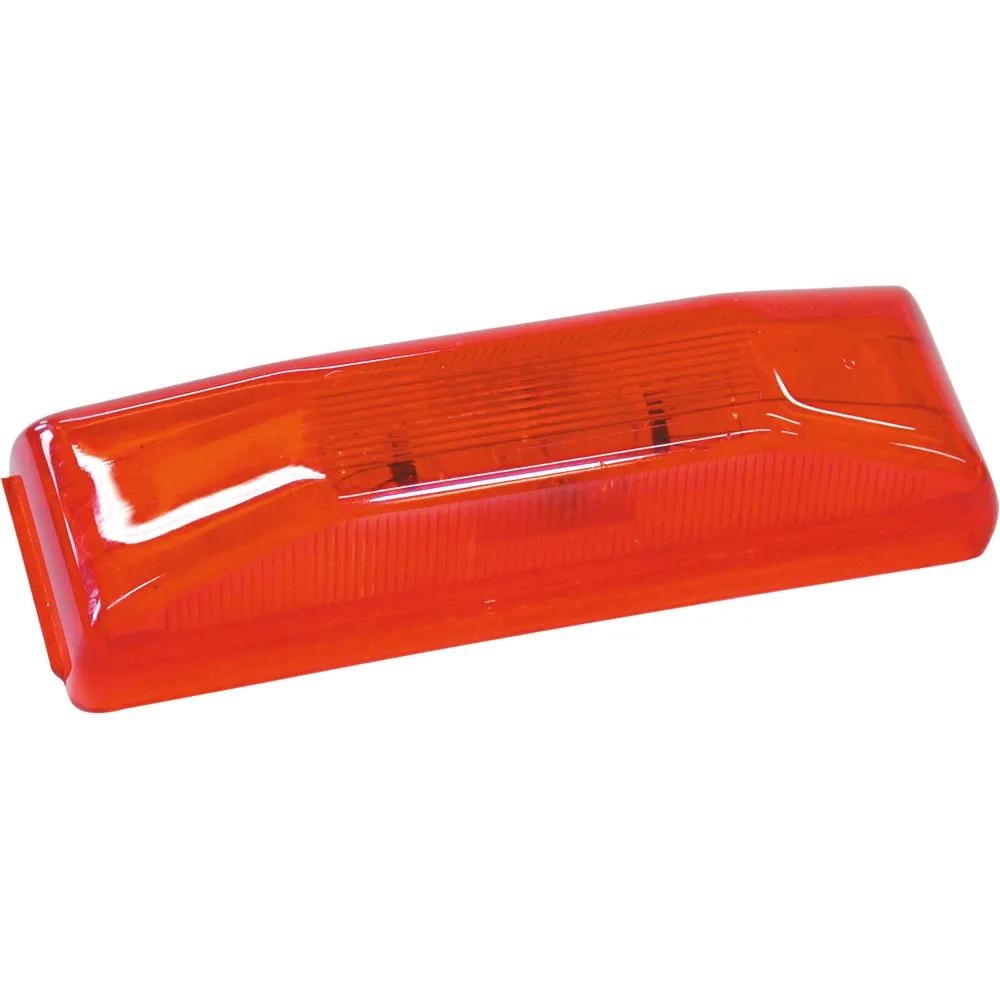

Grote Clearance Marker Light, Red, Rectangular, Polycarbonate, Double Bulb, 12V, Male Pin
#GRO46742
Product Overview
Grote's rectangular clearance marker light features a double bulb design for increased visibility and narrow mounting applications. It includes a hermetic lens-to-housing seal for superior protection and meets PC function only when mounted at a 45° angle. This 12-volt lamp offers a 12,000+ hour bulb life and is manufactured to meet or exceed OEM specifications. Recommended bracket: 43990.Clearance Marker Light, Male Pin Connection Type, Bracket Mounting, Red Lens, Red Light Output, Polycarbonate Lens, Polycarbonate Housing, (2) 2 CP Candle Power, 0.66 A Current Rating, P2, P3, PC Light Function, Rectangular, FMVSS 108 Standards, 1 Year Warranty
Features & Benefits
- Meets PC function when mounted at 45° angle
- Double-seal UBS pigtail ensures secure connection
- Hermetic lens-to-housing seal for superior protection
- Narrow mounting applications for versatile installation
- Rectangular, double bulb design for increased visibility
- Manufactured to meet or exceed OEM specifications in function, form & fit.
- Uses double-seal UBS pigtail
- Male pin connection for reliable wiring
Specifications
| Bulb Type | Double Bulb |
| Connection Type | Male Pin |
| Contents | Lamp Only |
| Height | 1-15/64 in |
| Length | 3-25/32 in |
| Lens Color | Red |
| Mounting Type | Bracket Mount |
| Shape | Rectangular |
| Size | 1 in |
| Standards | FMVSS 108 |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Voltage Rating | 12V |
| Warranty | 1 Year |
| Width | 1-15/64 in |
| Candlepower | (2) 2 CP |
| Current Rating | 0.66 amp |
| Light Output Color | Red |
| Light Function | P2, P3, PC |
| Product Line | 19 Series |
| Product Category | Clearance Marker Light |
Interchanges & Equivalent parts:
| 46742 |
| 1261900 |
| 154R |
| 19200R |
| 19200R3 |
| 46742-3 |
| 46742-5 |
| 467423 |
| 467425 |
| GRO46742-3 |
| GRO46742-5 |
| GRO467423 |
| GRO467425 |
| HB9316R |
| 080964-4 |
| 19200R1 |
| 19200R2 |
| 1960TLT |
| 3099180 |
| 3217 |
| 3221 |
| 46742-GL |
| 80964 |
| 81758 |
| 84051 |
| GRO 46742 |
| GRO46742 |
| RC CML65R |
| ZBJ46742 |
| ZBJD46742 |
| GR46742 |
| 013-00-022 |
| 1000-CML65R |
| 1900R |
| 5730601 |
| 7376-46742 |
| 800-200350R |
| ABP N54A B9006R |
| CML65R |
| FLTSE1040R |
| GRT46742 |
| GT46742 |
| LB046402 |
| LT19R |
| M154R |
| MKR4730R |
| PT1900R |
| SE1040R |
| TKL19200R |
| TKL1960 |
| 154KR |
| 9561 |
| TKL19002R |
| GR046742 |
| 1900AD |
| MC65RBP |
| 34-004-483 |
| 34004120 |
| P310812 |
| PA10175 |
| PB310812 |
| SLH34004120 |
| SLH46742 |
| MKR4730RPG |
| 726724 |
| 727690 |
| 728165 |
| 0906PT |
| 0922A |
| 0957C |
| 0957PT |
| 0961A |
| 33050Y |
| 5010202Y3 |
| 1900 |
