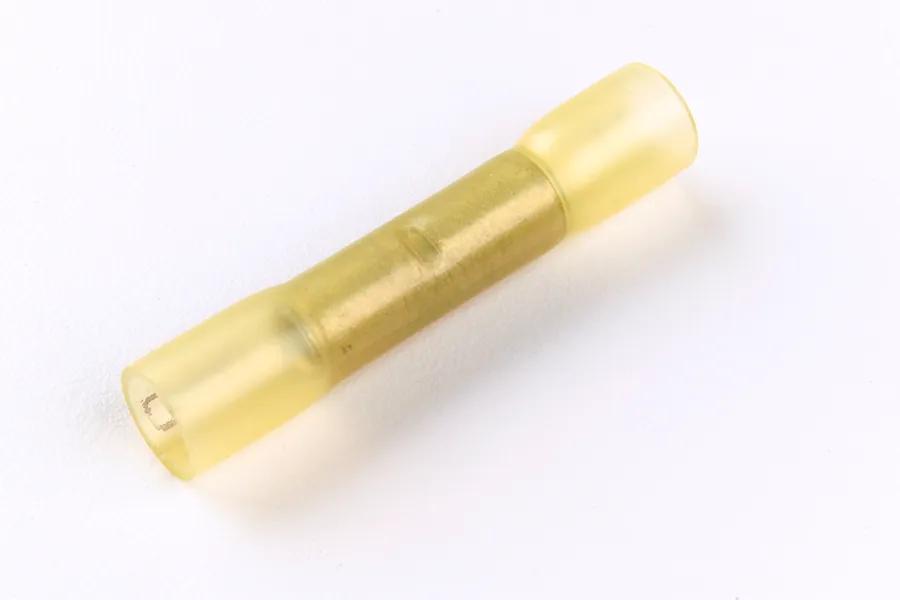

Grote Heat Shrinkable Polyolefin Butt Connector, Yellow, 12-10 Gauge, 3:1 Shrink Ratio, Pack of 50
Product Overview
The Grote Electrical Connector is a reliable and durable solution for connecting primary wires in electrical systems. Designed for 12-10 gauge wires, this heat shrinkable polyolefin butt connector ensures secure, insulated, and efficient electrical connections. It features color-coded tubing with wire gauge imprint for easy identification and provides protection against water, corrosion, salt, moisture, and vibration in rugged environments. Built to industry standards including cUL Listing and RoHS compliance, it is essential for maintaining effective power delivery and structural efficiency in various mechanical and industrial applications.Butt Connector, Yellow Insulation, Polyolefin, Heat Shrink Function, 12-10 GA Gauge, 3:1 Shrink Ratio, cUL Listed, RoHS Compliant Standards, -55 to 110 °C Temperature Range, 600 V
Features & Benefits
- Polyolefin jacketing provides superior protection
- No cracking after heat aging for 168 hours at 160°C (320°F)
- Wire pullout after crimping & recovery; yellow: 60lb
- Provides strain relief, protecting against added vibration in rugged environments
- Seamless butt connectors and brazed-seam rings & spades prevent connector barrel opening
- Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job
- Completely insulates and protects electrical connections
- Protects splices from water, corrosion, salt and moisture
- UL listed
- Adhesive-lined
Specifications
| Color | Yellow |
| Gauge | 10 ga, 12 ga |
| Quantity | 50 |
| Style | Heat Shrinkable |
| Temperature Range | -55°C (-67°F) to 110°C (230°F) |
| Terminal Type | Butt Connector |
| Type | Heat Shrinkable Butt Connectors - Polyolefin |
| UPC | 621935086923 |
| Function | Heat Shrink |
| Insulation Color | Yellow |
| Shrink Ratio | 3:1 |
| Standards | cUL Listed, RoHS Compliant |
| Voltage Rating | 600 V |
| Product Category | Butt Connector |
Interchanges & Equivalent parts:
| 1-1963 |
| 1-1963-100 |
| 83-2550 |
| 84-2550 |
| 84-3550 |
| PHI1-1963-100 |
| 7376-833550 |
| 83-3550GRC |
| GRO 83-3550 |
| GRO833550 |
| 11963100 |
| 58314 |
| 6000-C |
| 725256 |
| SS13 |
| TYBST |
| 83-3550 |
| SS12 |
| SS13B |
| STP198 |
| 833550 |
| HP2190 |
| STP553 |
| HP6560 |
| 711291 |
| 736213 |
| 736214 |
| 736217 |
| 736219 |
| CB21110 |
| CB21115 |
| BPATC-10ID |
| BPATC-15ID |
| BUS-HHC |
| 4721P6 |
| 7821138 |
| 0099PT |
| FT3864A |
| 3305D |
| PT8428 |
| 85273 |
| 729154 |
