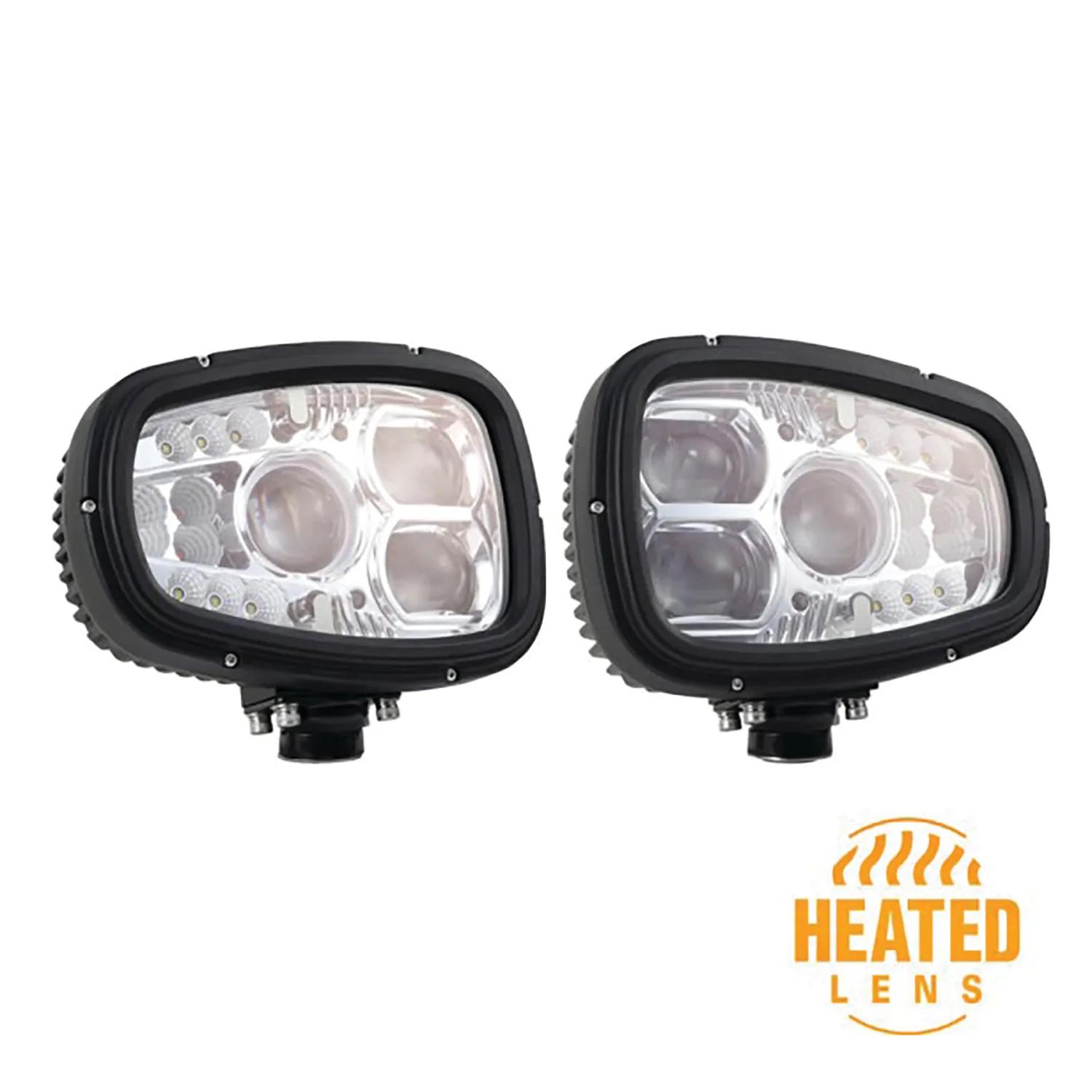

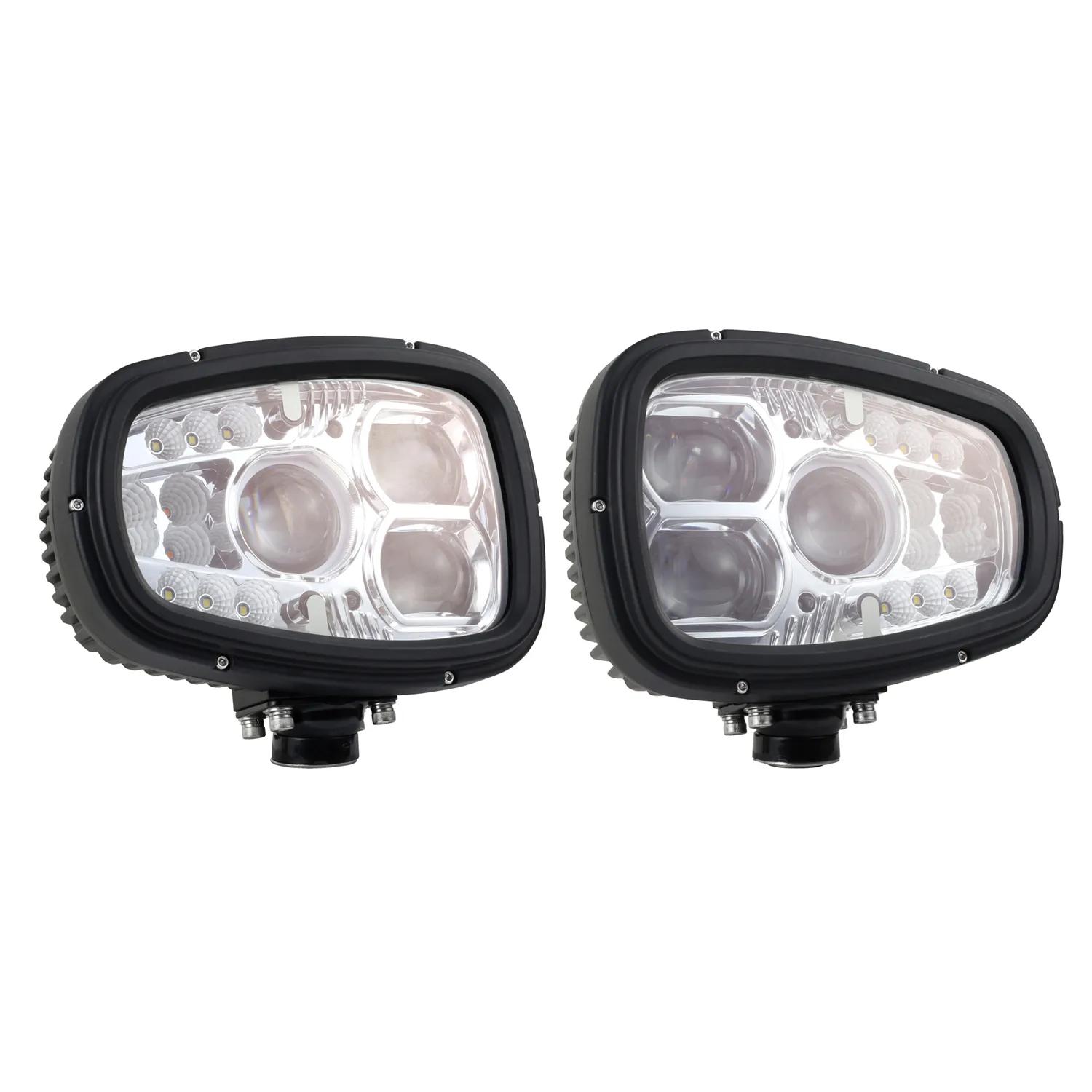

Grote Heated LED Snow Plow Headlight Kit, High/Low Beam, Right & Left-Hand, Glass Lens
Product Overview
In climates where snow and ice impair visibility, Grote’s LED Heated Snow Plow Headlights provide reliable cold weather supplemental lighting or road-legal driving lights when vehicle headlights are obstructed. Featuring an integrated sensor that monitors lens temperature and activates an internal heating element to melt snow and prevent ice buildup, these headlights are designed for the toughest conditions faced by plow operators. Suitable for tractors, ATVs, and other vehicles operating in winter conditions, they combine durability with advanced functionality.Snow Plow Light, Heated, 6-Pin DT Connector Type, LED Lamp, Swivel Mounting, Die Cast Aluminum Housing, Glass Lens, High Beam - 1400 Low Beam 750 Lumens, LB: SAE LB3V, HB: SAE UB3, FMVSS 108, IP67 Standards, 12 to 30 V, 2 Years Warranty
Features & Benefits
- Integrated sensor detects ambient temperature and activates heating element to melt snow and prevent ice buildup
- Heavy-duty construction ideal for the harshest environments
- Housing: Die-cast aluminum; Lens: Glass
- Mounting: Single Post Swivel Mount
- 6G Vibration – 8 hours; Reverse voltage protection
- Pigtail: Integrated 6 pin DT connector with blunt-cut adapter (included)
- Regulations/Standards: FMVSS 571.108; DOT; SAE UB3; LB: SAE LB3V, SAE J577, IP67
- Lumen Rating: High Beam 1400 LM Low Beam 750 LM
- 2-year warranty
- Includes LED turn signal
- Versatile, multi-volt design features reverse voltage protection
- Includes integrated 6-pin DT connector with blunt-cut adapter
Specifications
| Height | 9-3/4 in |
| Length | 6-51/64 in |
| Lens Material | Glass |
| Type | Heated |
| VMRS Code | 034-001-074 |
| Width | 12-1/4 in |
| Connector Type | 6-Pin DT |
| Housing Material | Die Cast Aluminum |
| Lamp Type | LED |
| Lumens | High Beam 1400 Low Beam 750 |
| Mounting Type | Single Post Swivel |
| Standards | LB: SAE LB3V, HB: SAE UB3, FMVSS 108, IP67 |
| Voltage Rating | 12 to 30 V |
| Warranty | 2 Years |
| Product Category | Snow Plow Light |
Interchanges & Equivalent parts:
| 846614 |
| 84661-4 |
| 9-150 |
| 9-151 |
| 7308361 |
| 730-8361 |
