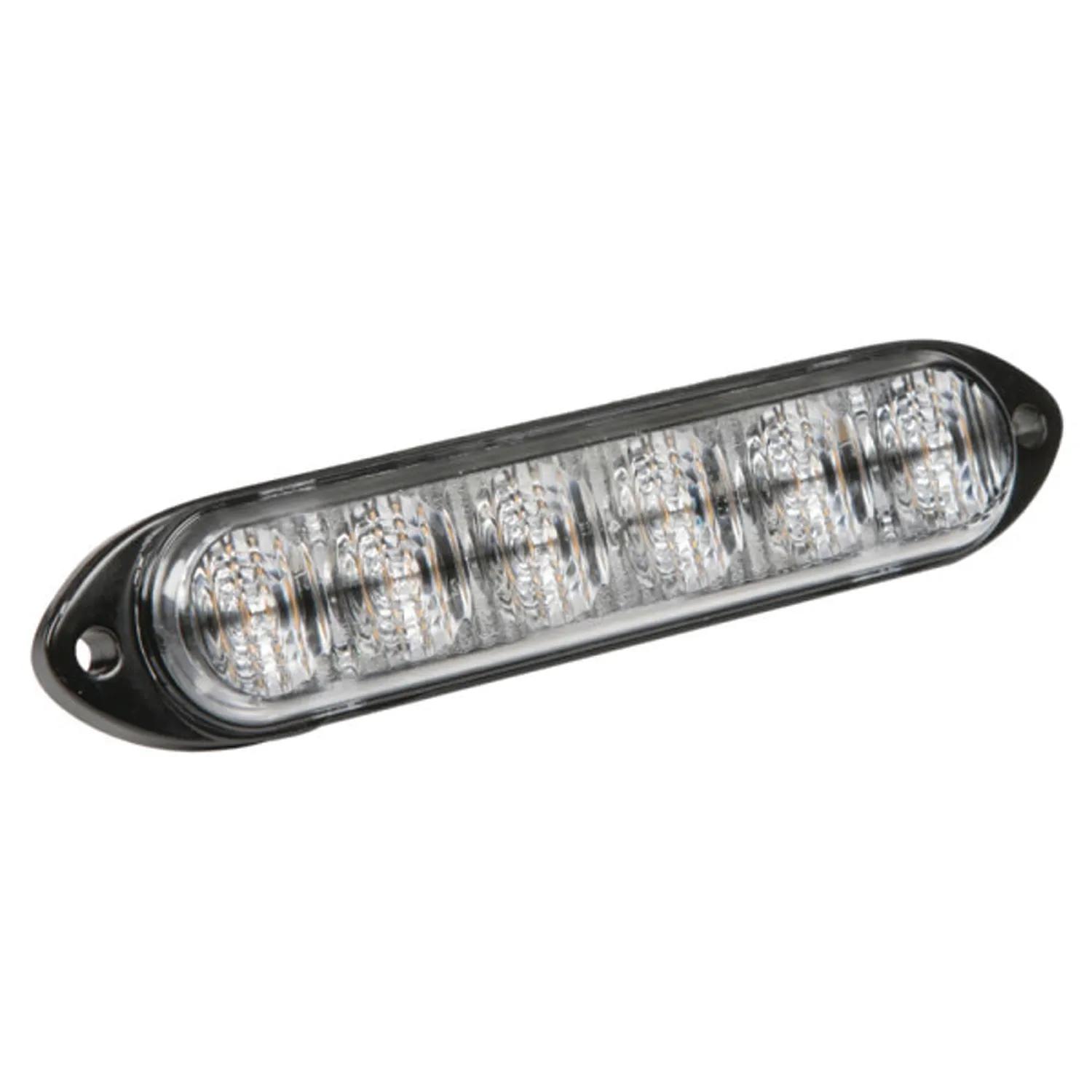

Grote LED Directional Warning Light, Ultra-Low Profile, Clear Lens, Polycarbonate/Aluminum, Rectangular, Class II SAE
Product Overview
Ultra-low profile LED directional warning lights offer a reliable, high-intensity solution with wide-angle visibility and a robust die-cast aluminum base. Available in single and split color models, featuring S-Link™ System synchronization with up to six compatible units and numerous built-in flash patterns for versatile applications. Designed for permanent mounting with a blunt cut connection, this versatile light meets J595 standards and operates reliably in temperatures from -40 to 55°C.Directional Warning Lamp, Low Profile, Blunt Cut Connection Type, LED, Permanent Mounting, Clear Lens, Polycarbonate/Aluminum, 0.55 A Current Rating, 22 GA Gauge, -40 to 55 deg C Operating Temperature, Class II SAE, Rectangular, J595 Standards, 12/24 V, 5 Years Warranty, 0.39 in Height, 4.5 in Length, 1 in Width
Features & Benefits
- Only .84" thin profile for discreet installation
- Selectable flash patterns in 2 phases + steady-on
- Synchronize with up to six other S-Link™ system units
- Compatible with other S-Link™ products for versatile use
- Grommet mount convertible to surface mount with optional bezels
- Robust die-cast aluminum base
- Self-contained high intensity, wide angle LED module
- Versatile LED directional warning light with 25 built-in flash patterns
- Permanent mounting with blunt cut connection
Specifications
| Color Temperature | IP68 |
| Connection Type | Blunt Cut |
| Effective Lumens | 5400 lm (Effective) |
| Gauge | 22 GA |
| Height | 0.39 po |
| Length | 4.5 po |
| Lens Color | Claire |
| Material | Aluminium / Polycarbonate |
| Mounting Type | Permanent |
| Operating Temperature | -40 à 55 deg C |
| SAE Class | Classe II |
| Shape | Rectangulaire |
| Standards | J595 |
| Type | Profil bas |
| VMRS Code | 034-001-021 |
| Voltage Rating | 12/24 V |
| Warranty | 5 ans |
| Width | 1 po |
| Current Rating | 0.55 A |
| Light Pattern | Selectable flash patterns in 2 phases + steady-on |
| Light Type | DEL |
| Product Category | Lampe de signalisation directionnelle |
Interchanges & Equivalent parts:
| 7376-78460 |
| 78460GR0 |
| 78460GRC |
| M84415 |
