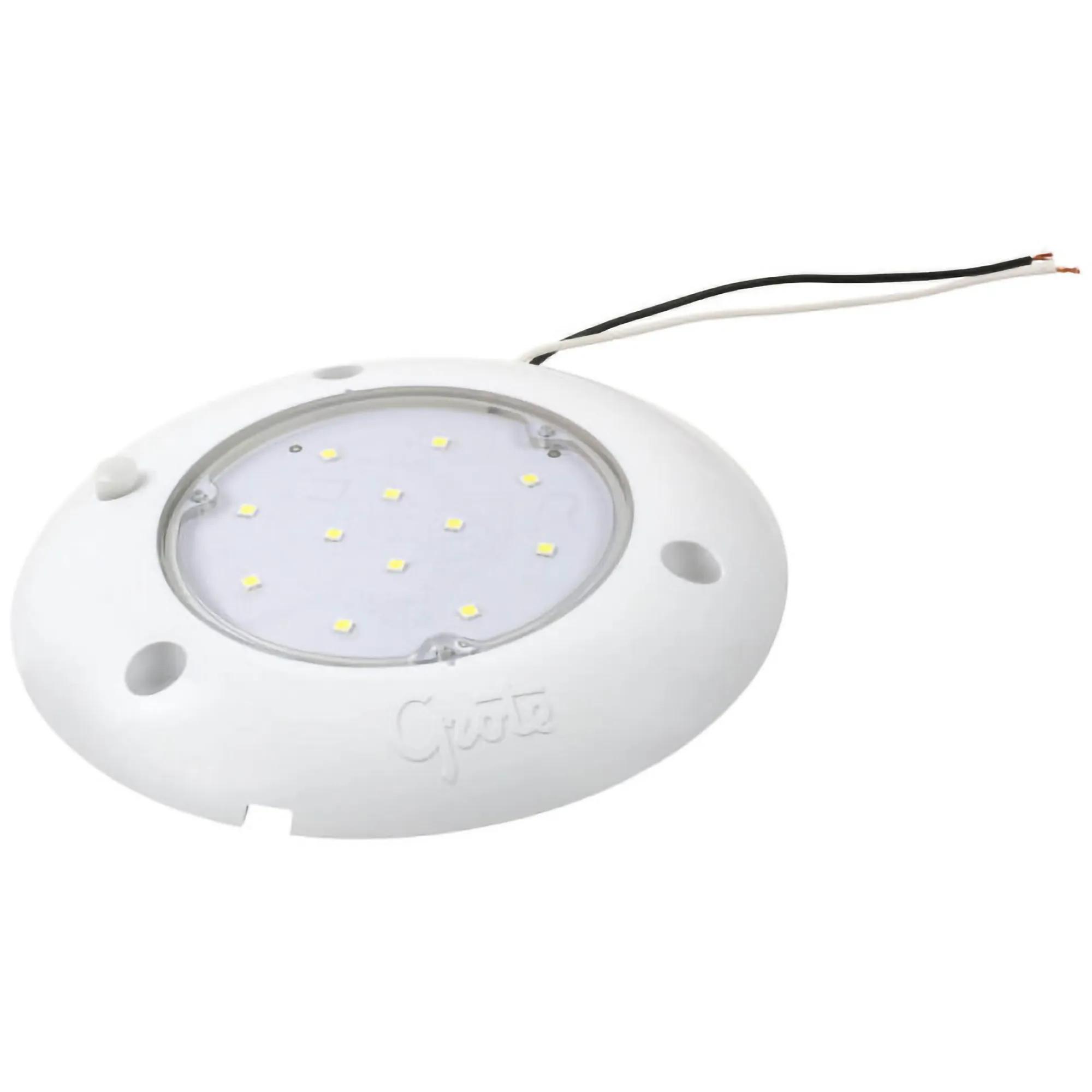

Grote S100 Low Profile LED Dome Light, White, Clear Polycarbonate Lens, 6.5 in, Surface Mount, Blunt Cut

#GRO61331

Product Overview

Warranty: GRO61331 - Warranty Documents - A

Grote's S100 family of surface mount dome lights utilizes our LED WhiteLight™ technology to provide 560 lumens of light output in nearly any interior space. Available in bi-voltage, with and without motion sensors, the light's moisture-proof construction meets IP69 requirements and operates in temperatures as low as -40°F without motion sensor and -4°F with motion sensor. This low profile, round dome light features a clear polycarbonate lens and housing, measures 6.5 inches in diameter, and includes a blunt cut connection for easy installation.DOME Light, Low Profile, Blunt Cut Connection Type, LED Lamp, Surface Mounting, White Housing, Clear Lens, Polycarbonate Lens, Polycarbonate Housing, 0.3 to 0.6 A Current Rating, 560 (Effective) Lumens, 2 Wires, -20 to 50 deg C Operating Temperature, Round, 6.5 in, ECE R10 Standards, 9 to 32 V, 3 Years Warranty

Features & Benefits

Features & Benefits GRO61331 - Features Documents - A

Surface mount allows for quick and easy installation

Moisture proof construction allows for a wide variety of uses

ECE R10

Low profile sleek design, less than 15.0mm height

ECE R10, Dir. 72/ 245/ EEC, Amended by 2006/ 28/ EC

Specifications

Connection Type	Blunt Cut
Height	Less than 15.0 mm
Housing Color	White
Lamp Type	LED
Lens Color	Clear
Mounting Type	Surface
Operating Temperature	-40 to 50 °F (-40 to 10 °C)
Shape	Round
Size	6.5 in
Standards	ECE R10, Dir. 72/245/EEC, Amended by 2006/28/EC
Type	Low Profile
Voltage Rating	9 to 32 V
Warranty	3 Years
Current Rating	0.3 to 0.6 A
Lumens	560 (Effective)
Product Category	DOME Light

Interchanges & Equivalent parts:

61331GR0

61331GRC

7376-61331

9-313
