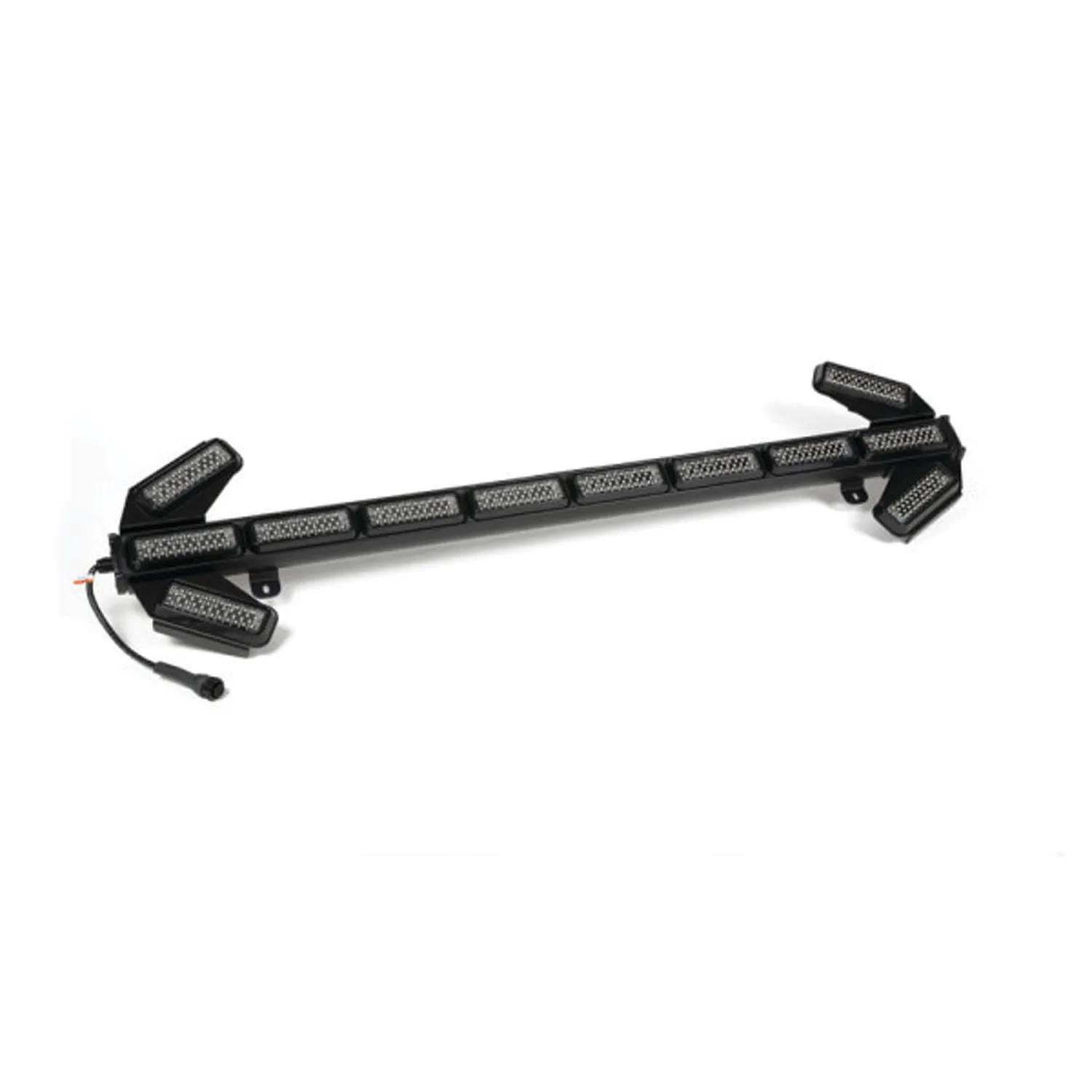

Grote Small LED Traffic Arrow with Clear Polycarbonate Lens and Aluminum Housing, Class I SAE
#GRO78210
Product Overview
Micro-processor controlled unit offers four distinct flash modes—left arrow, right arrow, center out, and warn—with easy front-load replacement for individual modules. Includes a backlit control unit, 35 ft wire harness, mounting kit (L-brackets and hardware), and instructions. Housed in durable extruded aluminum that resists warping and bending. Compatible with controller 98522 and module 98533 for units with date code prior to May 1, 2023.TRAFFIC DIRECTORS, LED, Permanent Mounting, Clear Lens, Polycarbonate Lens, Aluminum Housing, 2.4 A Current Rating, 18 and 22 GA Gauge, -30 to 50 deg C Operating Temperature, Class I SAE, Arrow, SAE J595 Standards, 12 VDC, 5 Years Warranty, 2 in Height, 46.8 in Length, 11.2 in Width
Features & Benefits
- DOT approved for legal compliance
- Reliable signaling for enhanced safety
- Efficient power consumption for extended use
- Ultra-bright LED bulbs for optimal illumination
- Genuine emergency light for increased visibility
- Durable construction for long-lasting performance
- Weather-resistant materials for all-weather driving
- Front load for easy replacement of individual module (Grote #98343)
- Made from durable extruded aluminum — traffic directors will not warp or bend
- Micro-processor control unit offers 4 modes with distinctive flash options
- Ships complete with backlit control unit 98523, 35’ wire harness, mounting kit (L-brackets, hardware), and instructions
- Traffic director 78210 with date code prior to May 1, 2023 is only compatible with controller 98522 and module 98533
Specifications
| Connection Type | Faisceau de câbles |
| Gauge | 18 et 22 GA |
| Height | 2 po |
| Length | 46,8 po |
| Lens Color | Transparent |
| Mounting Type | Permanent |
| Operating Temperature | -30 à 50 °C |
| SAE Class | Class I |
| Shape | Arrow |
| Standards | SAE J595 |
| Voltage Rating | 12 VDC |
| Warranty | 5 Years |
| Width | 11.2 in |
| Current Rating | 2.4 A |
| Light Pattern | Left Arrow, Right Arrow, Center Out, Warn |
| Light Type | LED |
| Product Category | TRAFFIC DIRECTORS |
Interchanges & Equivalent parts:
| 78210GR0 |
| 78210GRC |
| 21-DB001-E |
