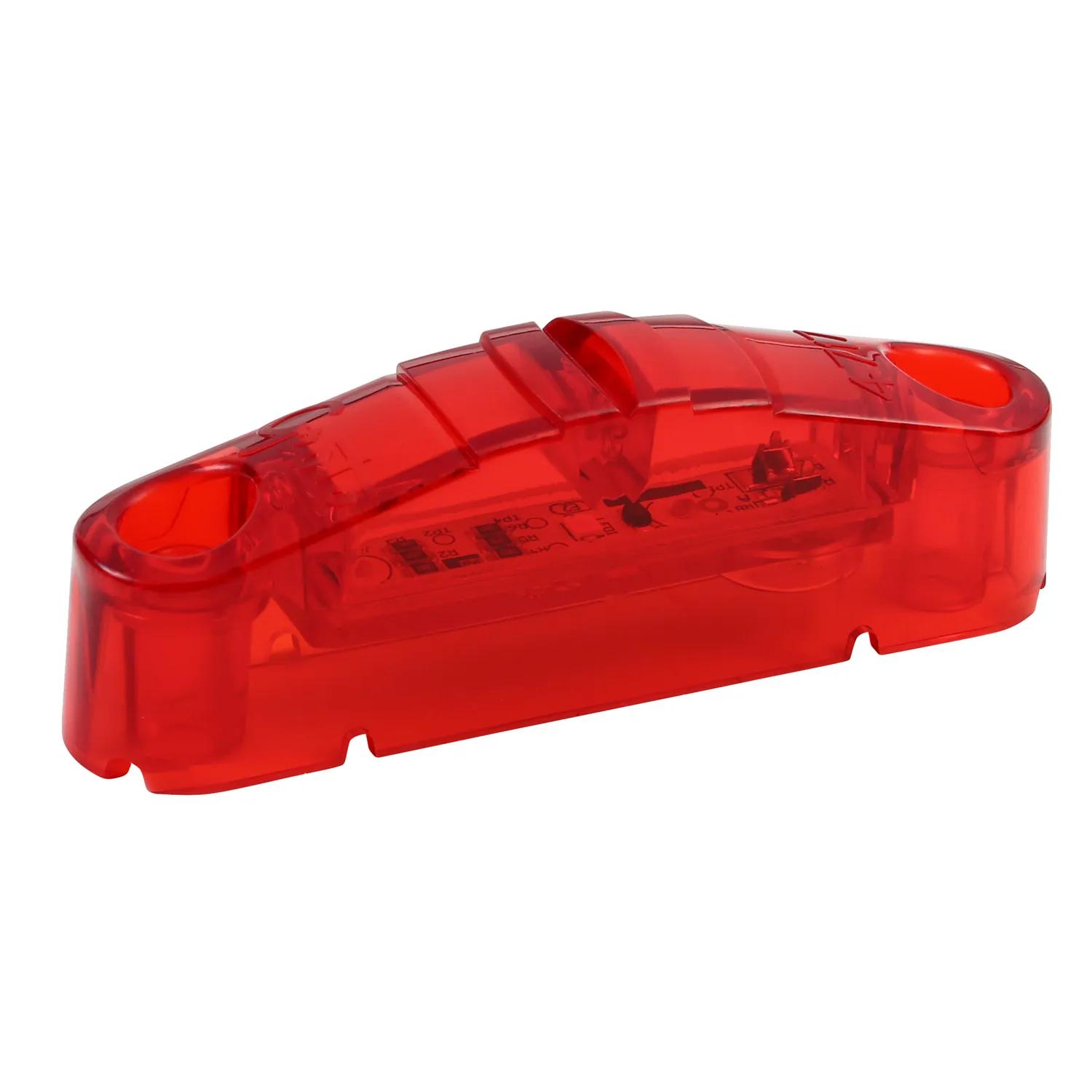

Grote SuperNova® 3 in Thin-Line Red LED Clearance Marker Light, Acrylic Lens, Faston Tab Connection
#GRO47172
Product Overview
Grote's SuperNova® 3-inch thin-line LED clearance marker light features encapsulant potting for total circuit-board protection and meets PC function when mounted at a 45° angle. Designed with an anti-torque feature to prevent over-tightening and lens cracking, this light includes wire exit holes at the ends for flow-through harnessing.Clearance Marker Light, LED Bulb, Faston Tab Connection Type, Screw Mounting, Red Lens, Red Light Output, Acrylic, 0.075 A Current Rating, PC, P2 Light Function, SuperNova®, 3 in, SAE J592E, SAE J1889, FMVSS 108 Standards, 12.8 V, 10 Years Warranty, 0.87 in Height, 3.84 in Length, 1.26 in Width
Features & Benefits
- 3" mounting center
- Anti-torque design protects against over-tightening and lens cracking
- Encapsulant potting for total circuit-board protection
- Meets PC function when mounted at a 45° angle
- Wire exit holes at ends allow for flow-through harnessing
Specifications
| Type d'ampoule | DEL |
| Type de connexion | Languette Faston |
| Hauteur | 0,87 po |
| Longueur | 3,84 po |
| Couleur des lentilles | Rouge |
| Matériel | Acrylique |
| Type de fixation | À vis |
| Size | 3 po |
| Standards | SAE J592E, SAE J1889, FMVSS 108 |
| VMRS Code | 034-004-253 |
| Voltage Rating | 12,8 V |
| Warranty | 10 ans |
| Width | 1,26 po |
| Current Rating | 0,075 A |
| Light Output Color | Red |
| Light Function | PC, P2 |
| Product Line | SuperNova® |
| Product Category | Feu de gabarit |
Interchanges & Equivalent parts:
| 35200R |
| M20340R |
| TLD35200R3 |
