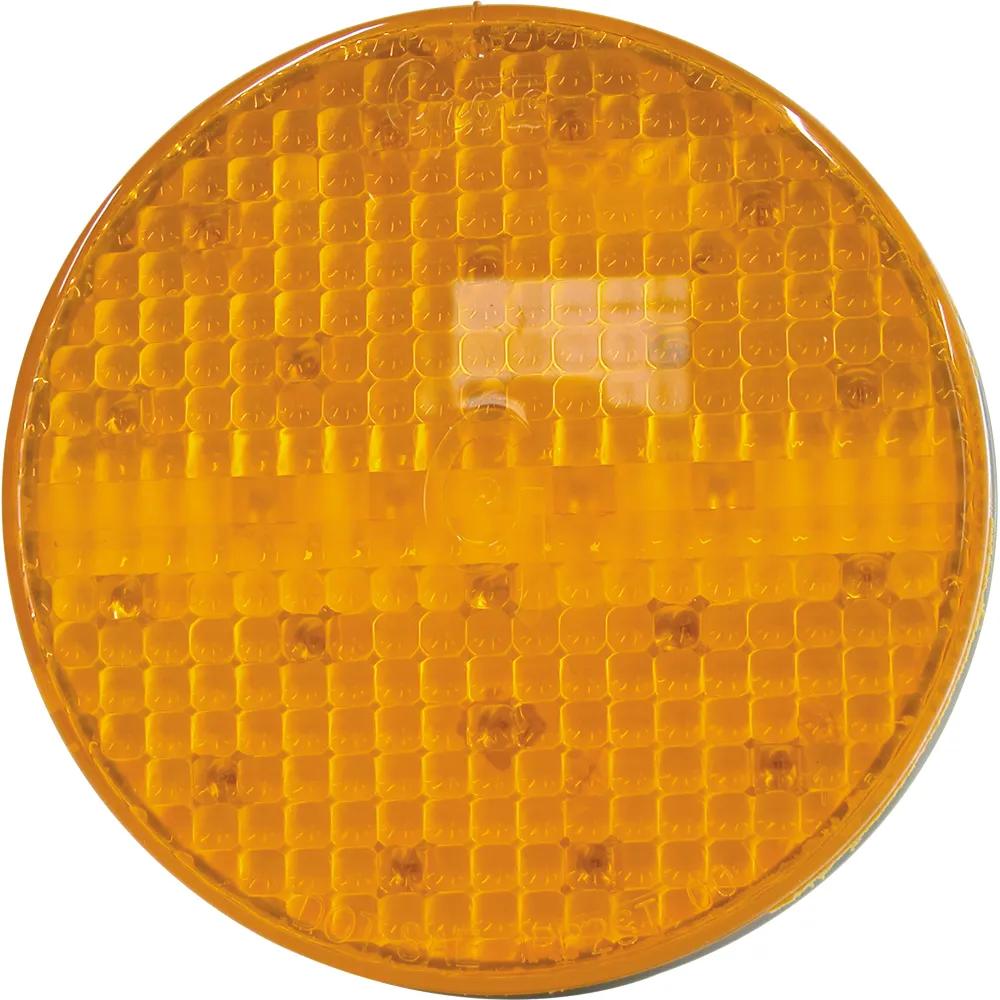

Grote SuperNova 4 in Round Amber LED Strobe Light, 12V, Dual/Quad Flash, Grommet or Bracket Mount, Class II SAE
#GRO77353
Product Overview
Bullet-proof potted circuit board offers maximum protection against dirt, moisture, and corrosion. Internal circuitry eliminates the need for an external power supply or control module. This 4-inch round amber LED strobe light features encapsulant potting for maximum circuit board protection and functions as either a dual flash or quad flash strobe. Designed for 12-volt DC power, it fits standard 4-inch mountings and can be mounted in any orientation.Strobe, Male Pin Connection Type, LED, Grommet, Bracket Mounting, Gray Housing, Amber Lens, Amber Light Output, Acrylic, ABS, 0.68 A Current Rating, Class II SAE, Round, 4 in, FMVSS 108 Standards, 12 V, 2 Years Warranty, 4 in Height, 0.75 in Length
Features & Benefits
- Lamps fit 4-inch standard mountings
- Requires only a 12-volt DC connection for power
- Works as a dual flash strobe or a quad flash strobe
- Encapsulant potting for maximum circuit board protection
- Circuitry eliminates external power supply/control module need
- Lamps mount in any orientation
Specifications
| Ampères | 0,3 A |
| Classe | II |
| Couleur | Ambre |
| Taille commune | 4 po |
| Type de connexion | Broche mâle |
| Profondeur | 2-1/2 po |
| DOT approuvé | Oui |
| FPM | 45 IPM |
| Hauteur | 5-1/2 po |
| Couleur du boîtier | Noir |
| Trousse (O/N) | Oui |
| Del | Oui |
| Length | 6 po |
| Lens Color | Ambre |
| Lens Material | Polycarbonate |
| Mounting Type | Oeillet, Support |
| Mount/Trim Material | PVC |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Extrémité dénudée) |
| Plug Side Two | Metripack |
| Power Type | À distance |
| Regulations | FMVSS 108 |
| SAE Class | Classe II |
| Shape | Rond |
| Size | 4 po |
| Standard | FMVSS 108 |
| Standards | FMVSS 108 |
| Style | SuperNova 4 po |
| Technology | Tube stroboscopique |
| Type | Phare stroboscopique |
| VMRS Code | 034-001-021 |
| Volt | 12V |
| Voltage Rating | 12 V |
| Warranty | 2 ans |
| Watts | 20 W |
| Weight | 0,43 lb (0,2 kg) |
| Width | 5-1/2 po |
| Wire Gauge | 18 ga |
| Current Rating | 0,68 A |
| Light Output Color | Amber |
| Light Type | DEL |
| Product Category | Stroboscope |
Interchanges & Equivalent parts:
| 418SA |
| 77353 |
| 40500A |
| 417SA1 |
| 44101YTLT |
| 7376-77353 |
| 77353-GL |
| 77353GR0 |
| GR-77353 |
| GR77353 |
| GRO 77353 |
| GRO77353 |
| GRT77353 |
| GT77353 |
| M42700Y |
| M42701Y |
| TKL44101Y |
| ZBJ77353 |
| ZBJD77353 |
| 740011 |
| 44144Y |
| 310589 |
| 725441 |
| 5561PT |
| 5563PT |
| 5568PT |
| 5570PT |
| 5572PT |
| 5573C |
| 5577PT |
| 5581PT |
| 5585PT |
| 5590C |
| 5590PT |
| 5638PT |
| 5653C |
| 58340 |
| 90054 |
| 421123 |
| 40242Y |
| 4051A |
| 50981013 |
| 92550Y |
| 5624207 |
| RTC433254001 |
