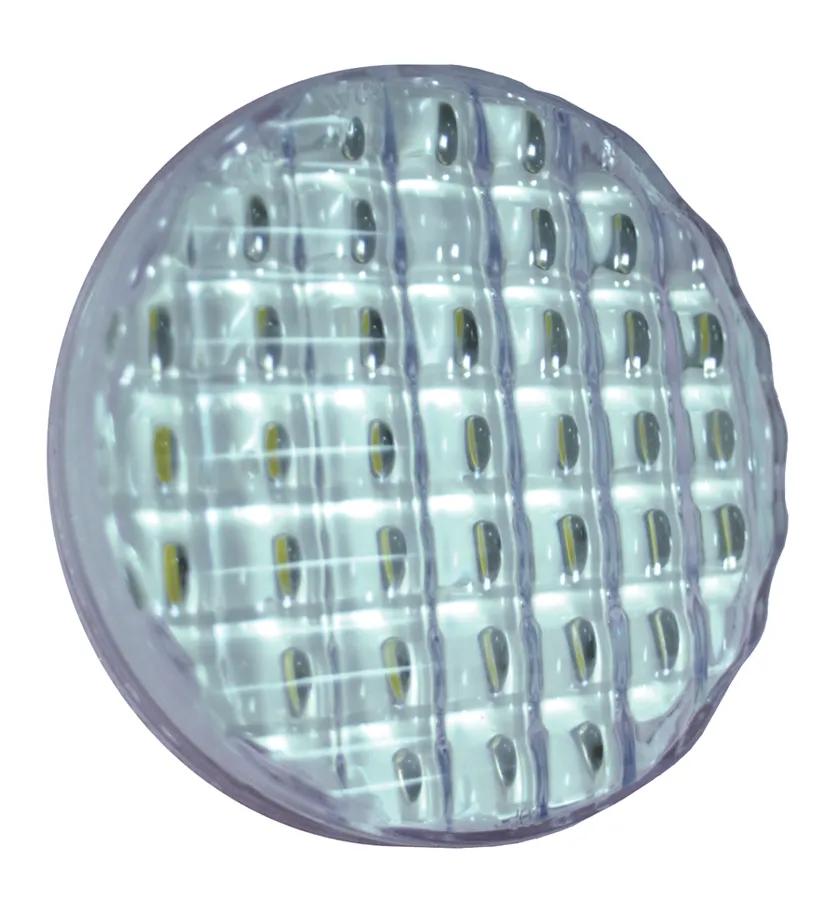

Grote SuperNova® 4 in Round White LED Back-Up Light, Single-System, Male Pin, Polycarbonate Lens
Product Overview
Grote's SuperNova® 4-inch round single-system LED back-up light features encapsulant potting for total circuit board protection and an advanced pin system with tin-plated, solid-brass terminals for reliable connectivity. Designed to meet or exceed OEM specifications, it uses the standard UBS pigtail compatible with male pin incandescent lamps and includes a hard-coated polycarbonate lens for long-term UV protection. Suitable for grommet or bracket mounting and compliant with FMVSS 108 standards.Backup Lamp, Single-System, LED Bulb, Male Pin Connection Type, Grommet, Bracket Mounting, Black Housing, Clear Lens, White Light Output, Polycarbonate, 0.45 A Current Rating, R Light Function, SuperNova®, Round, 4 in, FMVSS 108 Standards, 9 to 16 V, 10 Years Warranty
Features & Benefits
- Male Pin
- Designed for easy integration into existing lighting systems
- Compatible with standard UBS pigtail used for male pin incandescent lamps
- Encapsulant potting safeguards the circuit board from vibration and corrosion
- Advanced pin system with tin-plated, solid-brass terminals ensures reliable connectivity
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit
- Hard-coated lens for long-term UV protection
- Meets backup function with single-lamp system
Specifications
| Type d'ampoule | DEL |
| Couleur | White |
| Type de connexion | Male Pin |
| Dimension | 108mm (dia.) x 20mm (d) |
| Couleur du boîtier | Noir |
| Longueur | 4 po |
| Couleur des lentilles | Clair |
| Matériau de la lentille | Polycarbonate |
| Matériel | Polycarbonate |
| Type de fixation | Oeillet, support |
| Type de support | Montage sur oeillet ou support |
| Nombre de diodes | 24 |
| Fiche #1 | Broche mâle |
| Type de produit | Feu de recul |
| Forme | Rond |
| Standard | FMVSS 108 |
| Style | SuperNova, 4 po, Système unique, DEL |
| Technologie | DEL |
| Code VMRS | 034-003-142 |
| Tension nominale | 9 V et 16 V |
| Garantie | 10 ans |
| Largeur | 4 po |
| Courant nominal | 0,45 A |
| Fonction d'éclairage | R |
| Product Line | SuperNova® |
| Product Category | Feu de recul |
Interchanges & Equivalent parts:
| 62401 |
| 624013 |
| GRO624013 |
| 44350CTLT |
| 62401GR0 |
| GRO 62401 |
| GRO62401 |
| ZBJ62401 |
| ZBJD62401 |
| 7376-62401 |
| 417CP |
| TKL44350C |
| 44040C |
| 44044C |
| 44205C |
| 44235C |
| 5543PT |
| 5544PT |
