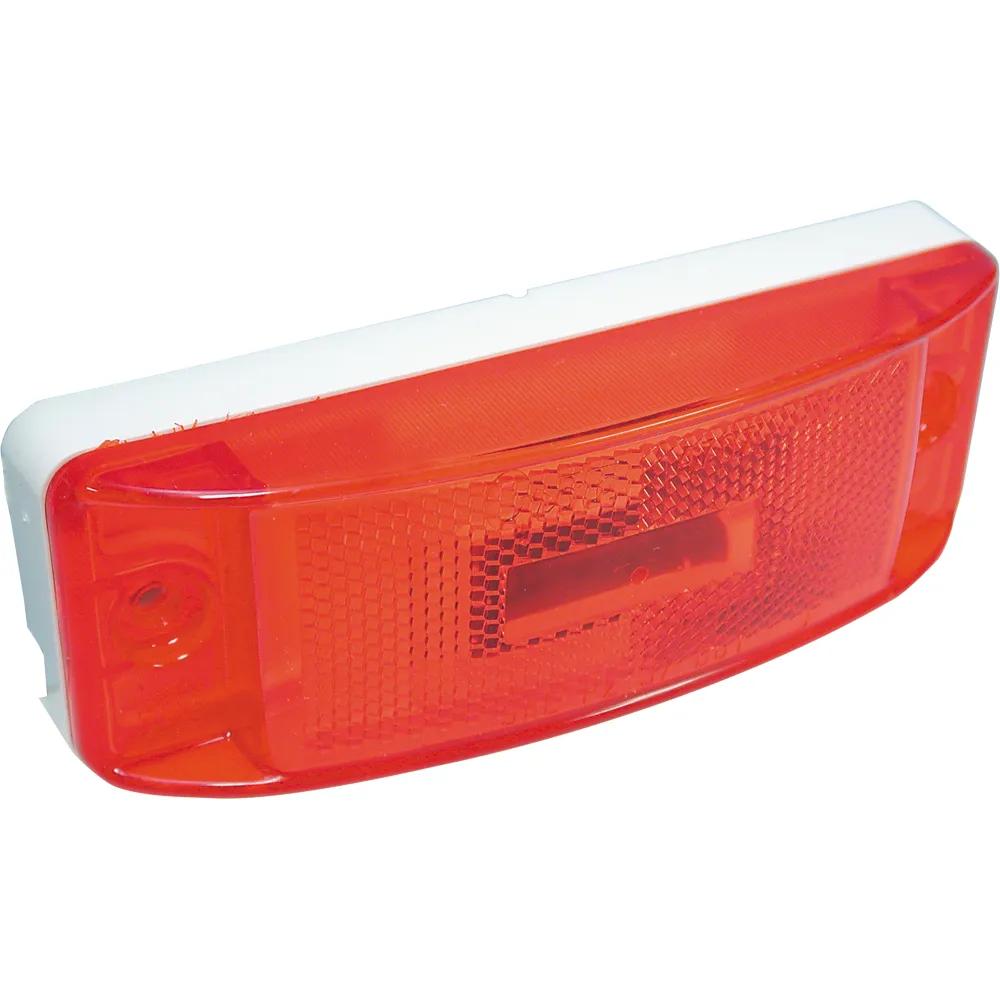

Grote SuperNova® Turtleback® II LED Clearance Marker Light, Red, Rectangular, Male Pin
Product Overview
Grote's SuperNova® sealed Turtleback® II LED clearance marker lights feature encapsulant potting for total circuit board protection and a hermetic lens-to-housing seal. Designed to meet PC function only when mounted at a 45° angle, these lights resist corrosion with tin-plated solid brass terminals sealed to the housing, eliminating failure-causing leak paths. Not designed for vertical mount, they comply with FMVSS 108 standards and offer long-lasting durability.Clearance Marker Light, LED Bulb, Male Pin Connection Type, Bracket Mounting, White Housing, Red Lens, Red Light Output, Acrylic Lens, Polycarbonate Housing, 0.06 A Current Rating, PC, P2, A Light Function, Turtleback®, SuperNova®, Rectangular, FMVSS 108 Standards, 10 Years Warranty
Features & Benefits
- Quick retrofit with UBS double-seal pigtail for convenient installation
- Tin-plated brass terminals resist corrosion, ensuring reliable performance
- Encapsulant potting protects circuit board from damage, prolonging lifespan
- Hermetic lens seal prevents moisture ingress, ensuring long-lasting durability
- Solid brass terminals eliminate failure-causing leak paths, enhancing reliability
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Encapsulant potting for total circuit board protection
- Hermetic lens to housing seal
- Meets PC function when mounted at a 45 deg angle
- Not designed for vertical mount
- Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
Specifications
| Type d'ampoule | DEL |
| Type de connexion | Connexion Mâle |
| Contient | Feu de gabarit |
| Hauteur | 2-1/32 po |
| Couleur du boîtier | Rouge |
| Trousse (O/N) | Non |
| Longueur | 6 po |
| Couleur des lentilles | Rouge |
| Type de fixation | Montage sur support |
| Nombre de câbles | 2 |
| Réfléchissant (O/N) | Oui |
| Forme | Rectangulaire |
| Taille | 2 po |
| Standards | FMVSS 108 |
| Type | Feu de gabarit |
| Code VMRS | 034-004-253 |
| Tension nominale | 12V |
| Garantie | 10 ans |
| Largeur | 2-1/32 po |
| Calibre de(s) fil(s) | 16 ga |
| Longueur de fil | 3 po |
| Puissance de bougie | 0,1 amp |
| Courant nominal | 0,06 A |
| Light Output Color | Red |
| Light Function | A, P2, PC |
| Product Line | Turtleback®, SuperNova® |
| Product Category | Feu de gabarit |
Interchanges & Equivalent parts:
| 47072 |
| 47072-3 |
| 470723 |
| GRO47072-3 |
| GRO470723 |
| M1581R |
| 21051R1 |
| 47072-GL |
| 81720 |
| 84325 |
| GR-47072 |
| GRO 47072 |
| GRO47072 |
| GRT47072 |
| ZBJ47072 |
| ZBJD47072 |
| GR47072 |
| 158R |
| 188R |
| 7376-47072 |
| GT47072 |
| LED21R |
| LL046802 |
| M158R |
| M20330R |
| TKL21051R |
| TKL21251R |
| 12711284 |
| GR047072 |
| M20391R |
| MCL76RBP |
| 34004049 |
| ROS34004049 |
| 1560M |
| 1588KT |
| 422439 |
| 21251R |
