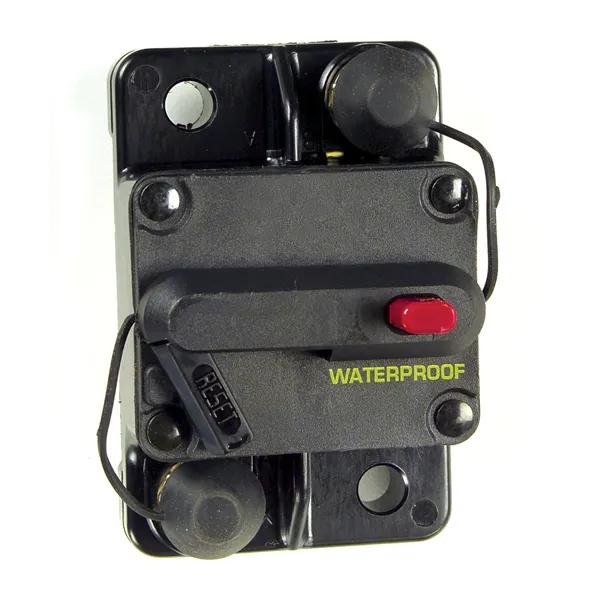

Grote Thermal Breaker 200 Amp, Type III, Single Pole, Manual Reset, 42 VDC
#GRO82-2217
Product Overview
Our high amperage thermal circuit breakers range from 40A to 200A, with this model rated at 200A. These circuit breakers are designed to protect your vehicle's electrical system from overcurrent, overload, and short circuit situations. All products in this category are waterproof and UL listed, meeting SAE J1625 and SAE J1171 standards.Circuit Breaker, Type III, Surface Mounting, Manual Reset, Stud Termination, Thermal Trip, Black, Thermoplastic, 200 A Current Rating, 1 Poles, -40 to 85 deg C Operating Temperature, UL Listed, SAE J1625, SAE J1171 Standards, 1/4-28 NPT Stud, 42 VDC, 1 Year Warranty, For Trucks, Buses, RV and Marine
Features & Benefits
- Surface Mount, Type III; Single Pole
- Thermoplastic; UL Rated 94V – 0 housing
- Stud insulators provided; 1/4” – 28 thread studs
- Also used as battery chargers and DC audio systems
- Can be used in auxiliary and accessory circuits; trucks, buses, RV and marine applications
Specifications
| Application | Trucks, Buses, RV and Marine |
| Material | Thermoplastic |
| Type | High Amperage Thermal Circuit Breakers |
| UPC | 621935173227 |
| Color | Black |
| Current Rating | 200 A |
| Mounting Type | Surface |
| Number of Poles | 1 |
| Operating Temperature | -40 to 85 deg C |
| Reset Type | Manual |
| Standards | UL Listed, SAE J1625, SAE J1171 |
| Stud Size | 1/4-28 NPT |
| Termination Type | Stud |
| Trip Type | Thermal |
| Voltage Rating | 42 VDC |
| Warranty | 1 Year |
| Product Category | Circuit Breaker |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 822217 |
| 0990C |
| 7376-822217 |
| 82-2217GR0 |
| 822217GRC |
| 91003200 |
| 3405-34 |
| 549996 |
| 82-2217 |
| 1-51204 |
| 200AMP |
| 0990PT |
