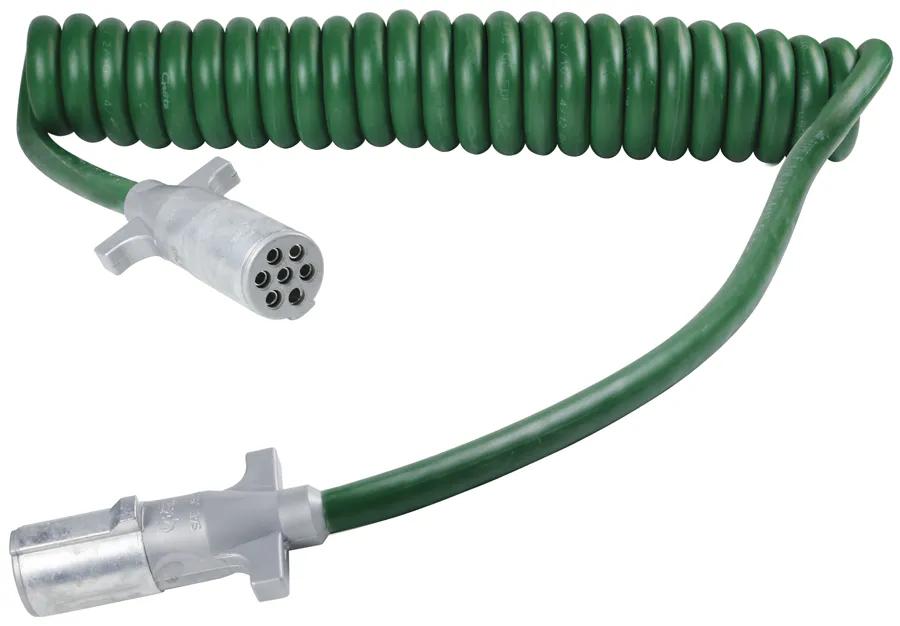

Grote UltraLink Coiled Trailer Connector Cable, 15 ft, Green, 7-Contact, 4/12 GA, 2/10 GA, 1/8 GA
#GRO87170
Product Overview
Grote’s UltraLink coiled trailer connector cable features a crush-resistant design that withstands heavy-duty vehicle use without deformation. Equipped with elastomer-filled zinc die-cast plugs that seal solid brass terminals from moisture, this cable exceeds minimum legal lamp power delivery requirements for single or double trailer configurations. The advanced polymer jacketing provides complete sealing and abrasion protection in extreme temperatures, ensuring durability and reliable performance.Trailer Cable, Coiled, Green, EVA Insulation, 4/12 GA, 2/10 GA, 1/8 GA Gauge, 12 in, 48 in Lead Wire, J560b, J2394, J2222 Standards, -40 to 80 °C Temperature Range, 15 ft Length
Features & Benefits
- Provides Superior Power Delivery & Exceeds Power Delivery Minimum Legal Lamp Requirements For Single Or Double Trailer Configurations, UltraLink Zinc Die-Cast Plugs Are Filled w/ Elastomeric Material That Resists Crushing & Acts As Potting To Seal Sold Brass Terminals From Moisture, Special Adhesive Bonds The Cable To The Plug, Eliminating The Need For A Supporting Spring & Preventing Moisture From Entering The Back Of The Plug, Solid Brass Terminals Are Corrosionn Resistant & Provide Superior Current Capacity w/ Minimal Voltage Drop, Advanced Polymer Jacketing Material Provides Complete Sealing & Abrasion Protection Between Neg 55 Deg Fahrenheit & 190 Deg Fahrenheit
- Advanced polymer jacketing ensures full sealing and abrasion resistance in extreme temperatures
- Solid brass terminals offer corrosion resistance and superior current capacity with minimal voltage drop
- Zinc die-cast plugs are elastomer-filled for crush resistance and moisture sealing of solid brass terminals
- Special adhesive bonds the cable to the plug, eliminating the need for a spring and blocking moisture entry
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Provides excellent recoil memory, chemical, and abrasion resistance
- UltraLink™ power cords exceed minimum legal lamp power delivery requirements for single or double trailer configurations
Specifications
| Application | ABS Electrical Assemblies |
| Color | Green |
| Conductor Material | Solid Brass |
| Gauge | 1/8 ga, 2/10 ga, 4/12 ga |
| Length | 15 ft |
| Material | Metal |
| Number Of Contacts | 7 |
| Temperature Range | -66°C (-87°F) to 80°C (176°F) |
| Type | Wire |
| VMRS Code | 034-003-037 |
| Current Rating | Exceeds minimum legal lamp power delivery requirements |
| Insulation Material | EVA |
| Jacket Material | Advanced Polymer |
| Lead Wire | 12 in, 48 in |
| Number Of Wires | 7 |
| Package Type | Bagged |
| Standards | J560b, J2394, J2222 |
| Product Category | Trailer Cable |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 87170 |
| 30-4927 |
| PHI30-4927 |
| 87170GRC |
| 213-304921 |
| GRO 87170 |
| GRT87170 |
| PHI304921 |
| 304921 |
| 590163 |
| 59016310V |
| 304920 |
| 724113 |
| PTL3004R |
| PTL3507A |
| PTL8001 |
| PTL8020 |
| 179301715 |
