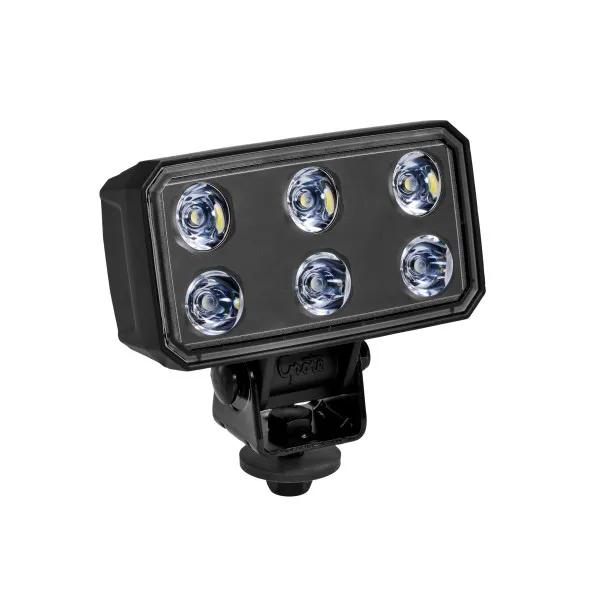

Grote Work Lamp, LED Bulb, DT Connector Connection, Pendant Mounting, Polycarbonate Lens, Die-Cast Aluminum Housing, Black Housing
Product Overview
The Grote e series LED work lamps offer a powerful and versatile equipment lighting solution. With multiple sizes and mounting options, the series also features a range of beam patterns and performance types. We also incorporate advances in thermal design to ensure a long service life. When you need work lamps for demanding equipment applications, the e series has the right lamp, at the right price. For the European markets, please refer to our MX line of work lamps.Work Lamp, LED Bulb, DT Connector Connection, Pendant Mounting, Polycarbonate Lens, Die-Cast Aluminum Housing, Color Temperature: 5700 K, Black Housing, Clear Lens, Powder Coated, 3.47 A at 12 V, 1.73 A at 24 V, 3000 lm, Hybrid Pattern, Product Line: e140R, Rectangular Shape, Standards: IP69K, ECE R10, 9 to 32 V, Warranty: 2 Years
Features & Benefits
- Thanks to a variable voltage range of 9 to 32 volts, the e140R LED work lamp is highly adaptable for different environments
- Meets stringent EMC requirements in accordance with CISPR 25 class 5
- Constant luminance over the whole operating temperature range
- State-of-the-art TIR-only lens design maximizes optical efficiency
- Rated IP69K, making it pressure-washer safe
- Circuitry protected against automotive transients, DC over- and undervoltage, and ESD
- Unique thermal design improves durability for a lamp that lasts longer
Specifications
| Bulb Type | LED |
| Color Temperature | 5700 K |
| Finish | Powder Coated |
| Material | Die-Cast/Polycarbonate |
| Mounting Type | Pendant |
| Pattern | Hybrid |
| Shape | Rectangular |
| Warranty | 2 Years |
| Connection Type | DT Connector |
| Current Rating | 3.47 A at 12 V, 1.73 A at 24 V |
| Housing Color | Black |
| Lens Color | Clear |
| Lumens | 3000 lm |
| Product Line | e140R |
| Standards | IP69K, ECE R10 |
| Voltage Rating | 9 to 32 V |
| Manufacturer Part Number | 64Y91 |
| Product Category | Work Lamp |
