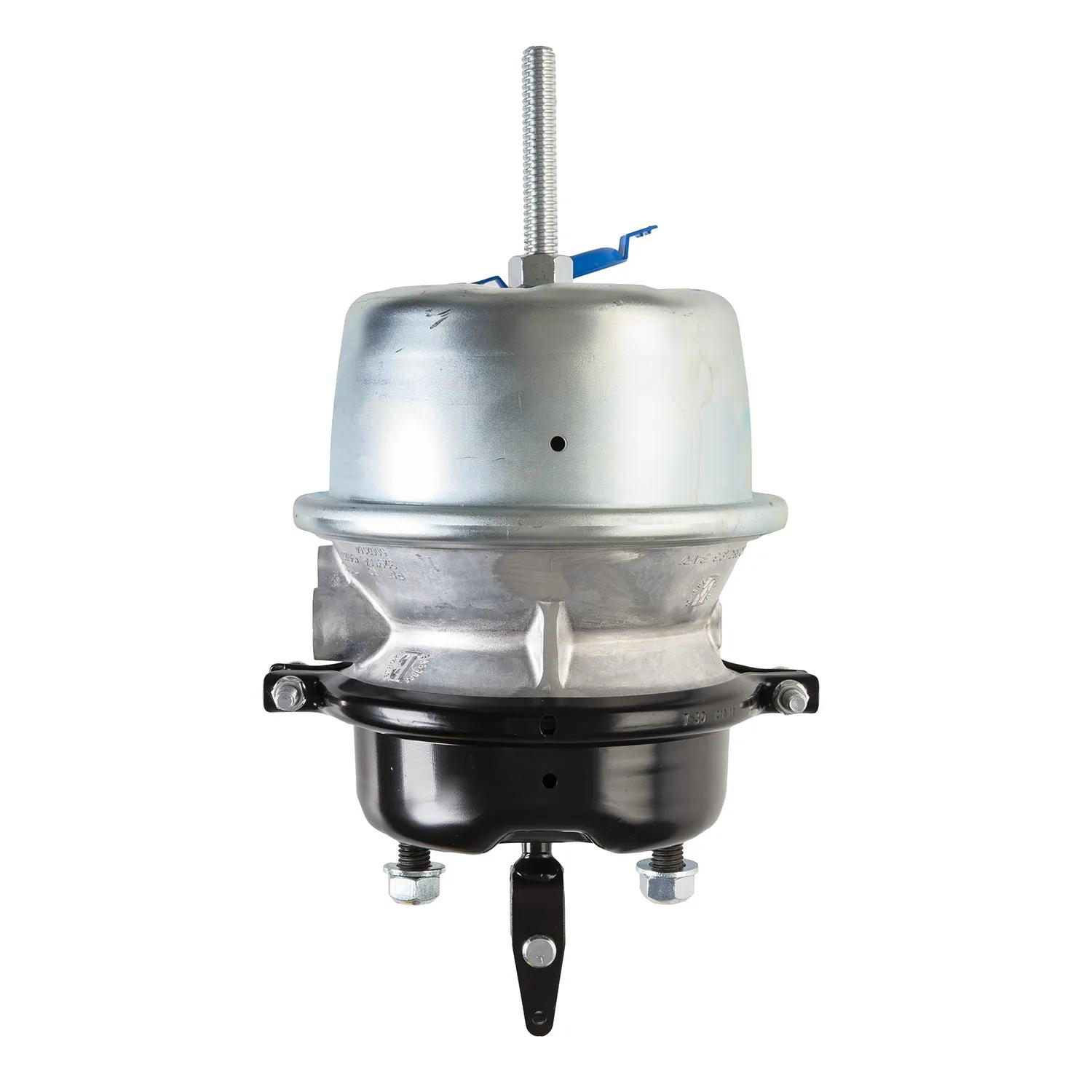

Haldex Brake Chamber, Combination T30/36 Type, Steel, 150 psi
#MIDGC3036CW
Product Overview
Brake Chamber, Combination, 30-36 Chamber, Steel, 3/8-18 NPTF Inlet Port, 5/8-11 UNC Mounting Stud, 150 psi Pressure Rating, Prop65
Features & Benefits
- Superior power spring technology; advanced powder coating process; resists corrosion and fatigue
- Double O-ring centerseal; two O-rings for positive sealing and plastic bearings for long life
- World class diaphragm; high quality rubber compound, resistant to heat and cold; superior flexibility even at -40 deg F
- Rugged service housing; 9 gauge steel, powder coated
- Orange Alert® Stroke Indicator
- Self-piloting dust shield
- Sizes to fit all drum brake applications
- With welded clevis
Specifications
| Material | Steel |
| Type | Combination |
| Chamber Type | 30-36 |
| Fits Models | T30/36 |
| Inlet Port | 3/8-18 NPTF |
| Mounting Stud | 5/8-11 UNC |
| Pressure Rating | 150 psi |
| Prop65 | Yes |
| Product Category | Brake Chamber |
Interchanges & Equivalent parts:
| 5396-GC3036CW |
| MIDGC3036CW |
