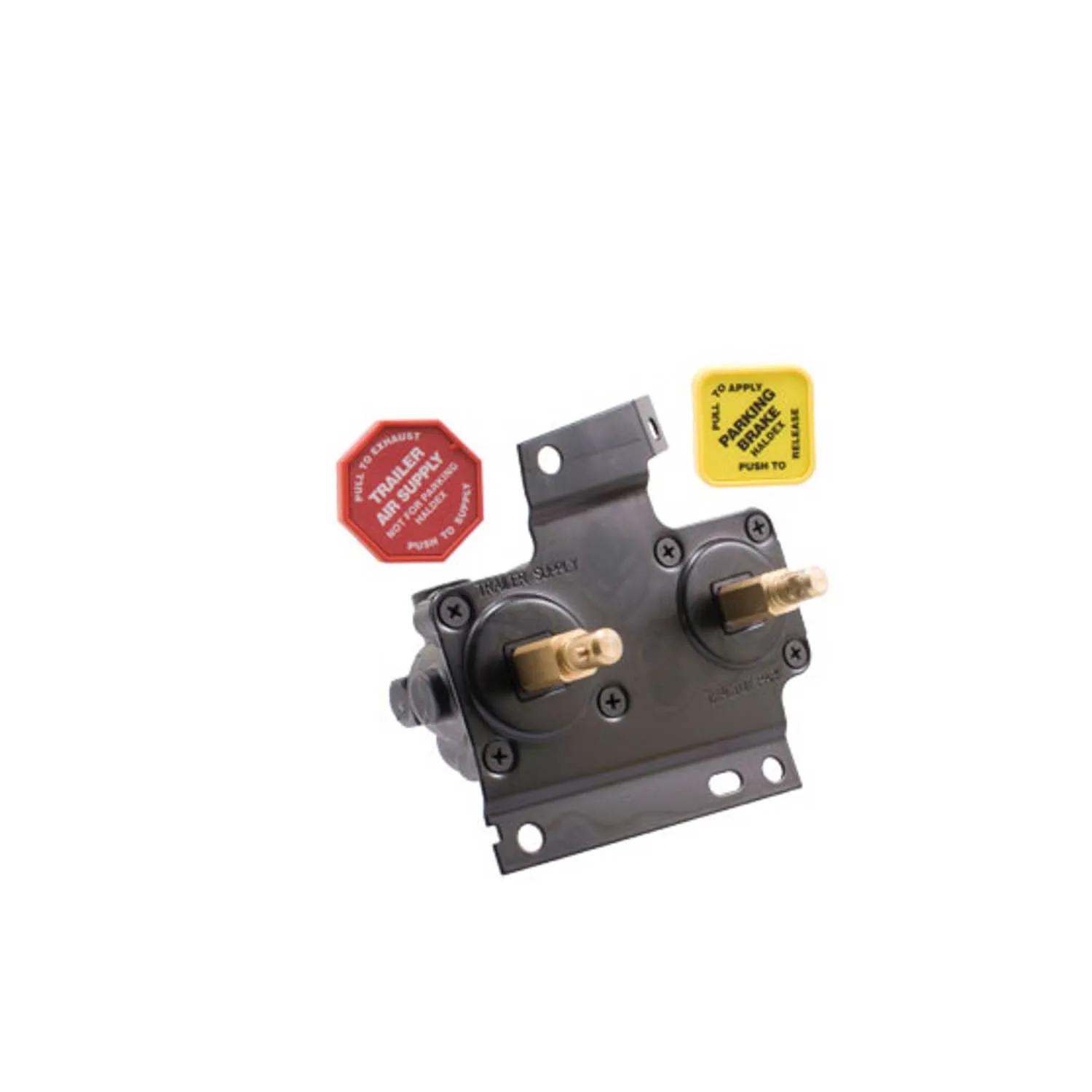

Haldex Manifold Dash Air Control Valve, Hand Operated, 3/8 in Inlet and Outlet for Heavy Duty Trucks
#MIDKN20619
Product Overview
Haldex develops and manufactures brake systems for heavy trucks, trailers, and buses. The product offering covers all primary components and subsystems included in complete air brake systems. This manifold dash air control valve is designed for reliable performance in heavy-duty applications.Control Valve, Hand Operated, 3/8 in Inlet, 5.1 in L, 3/8 in Outlet, 20 to 35 psi Tractor, 20 to 45 psi Trailer Valve, 25 ± 5 psi Non-Override Pressure, 5.33 in W
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Manifold dash valve
- Engineering grade composite (EGC) - one piece housing
- Ports have molded identification
- Completely serviceable
- 1/4 in hole in mounting cover
- 3/8 in PTC reservoirs
- One-piece housing
Specifications
| Application | Heavy Duty Trucks |
| Length | 5.1 in |
| Width | 5.33 in |
| Body Material | Engineering grade composite (EGC) |
| Connection Type | PTC |
| Fits Models | Tractor, Trailer |
| Inlet Size | 3/8 in |
| Outlet Size | 3/8 in |
| Pressure Rating | 20 to 35 psi Tractor, 20 to 45 psi Trailer Valve, 25 ± 5 psi Non-Override |
| Type | Hand Operated |
| Product Category | Control Valve |
Interchanges & Equivalent parts:
| KN20619 |
| S-23282 |
| 9366490260 |
| 9366490300 |
| 9366490310 |
| N4400BA |
| N4400EL |
| RKN20619 |
| 767653214733 |
| R955KN20619X |
| 20560009 |
| TDARKN20619 |
| 5396-KN20619 |
| 9366490380 |
| N4400GA |
| RKN20638 |
| KN20638 |
| WA13120619 |
| MIR-KN-20619 |
| RL3548SA14 |
| 5396KN20619 |
| MIRKN20619 |
