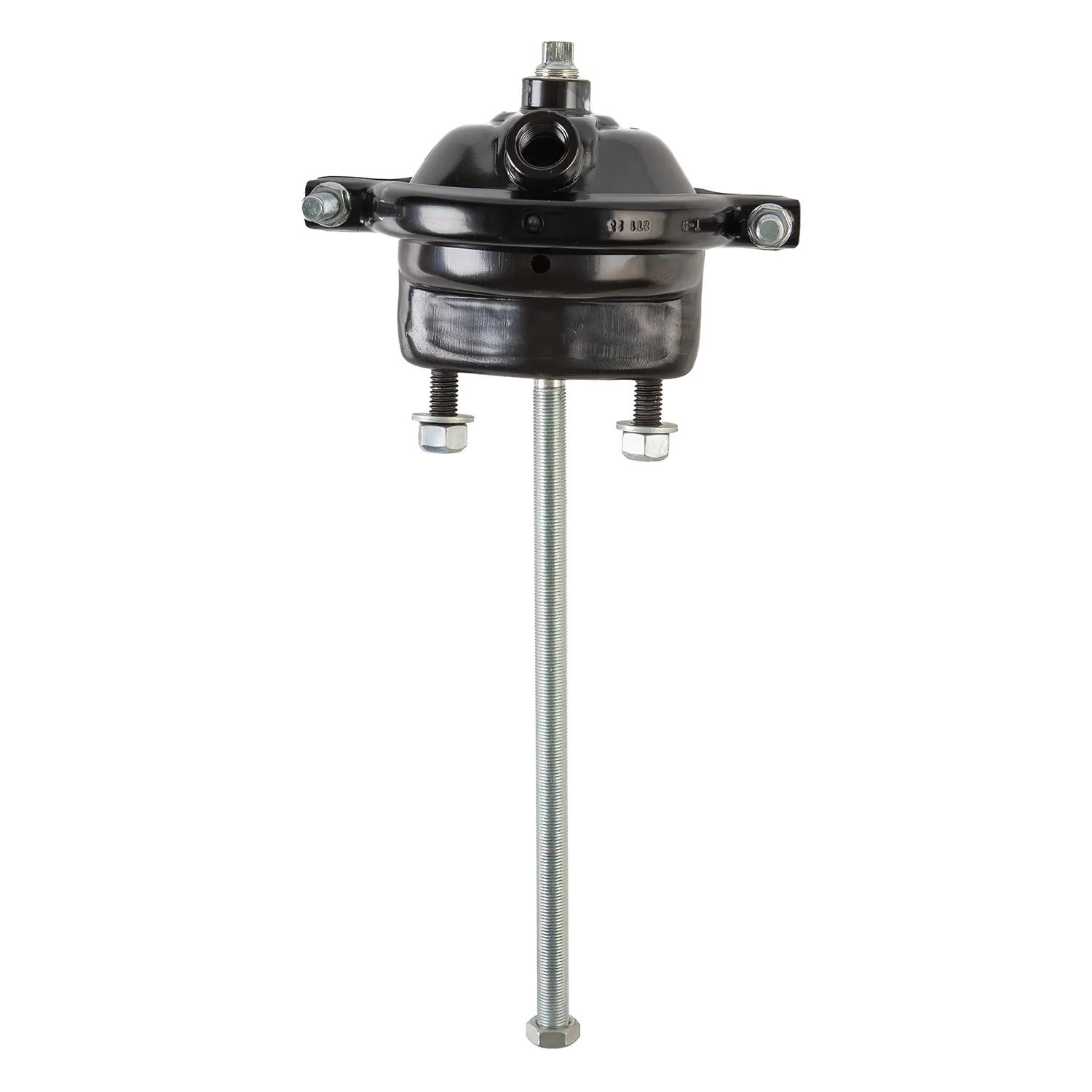

Haldex T9 Service Brake Chamber, Stroke 1-3/4 in, Push Rod 10-3/8 in, Steel Construction
#ANLSC09
Product Overview
Our service chambers are manufactured to the exacting specifications that Haldex has been known to provide for decades. Featuring a steel pressure housing with powder coating and resistance welded air ports, a world-class diaphragm made from high-quality rubber compound resistant to heat and cold, and superior flexibility even at -40°F, this chamber ensures reliable performance. The sturdy service housing is powder coated for corrosion resistance and includes a step bottom with 12 gauge steel.Service Chamber Brake, Stroke Type: Standard, Steel, T09 Chamber, 3/8-18 in NPTF Inlet Port, Mounting Stud: 7/16-14 UNC, Yes Prop65, 10.4 in Push Rod Length, Stroke Length: 1-3/4 in
Features & Benefits
- Orange Alert Stroke Indicator
- Piloting Dust Shield
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Steel pressure housing; powder coated with resistance welded air ports
- World class diaphragm; high quality rubber compound, resistant to heat and cold; superior flexibility even at -40°F
- Sturdy service housing; powder coated for corrosion resistance; step bottom with 12 ga steel
Specifications
| Material | Steel |
| Model | T9 |
| Type | Service Chamber |
| Weight | 4.2 lb |
| Brake Type | Service |
| Chamber Size | T09 |
| Inlet Port | 3/8-18 in NPTF |
| Mounting Stud | 7/16-14 UNC |
| Prop65 | Yes |
| Push Rod Length | 10-3/8 in |
| Stroke Type | Standard |
| Product Category | Service Chamber Brake |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 298019R91 |
| 298950R91 |
| 215713R91 |
| 514520C91 |
| 1006906002 |
| 144431R91 |
| 455037C91 |
| 635001651000 |
| 635001860000 |
| 226172 |
| 226173 |
| 226174 |
| 226176 |
| 226693 |
| 226694 |
| 227550 |
| 1006906001 |
| 300775R91 |
| 145517R91 |
| 67412AM |
| 225922 |
| 225929 |
| 227392 |
| 227690 |
| 227691 |
| 228004 |
| 228016 |
| 228130 |
| 228218 |
| 228422 |
| 228504 |
| 228517 |
| 228674 |
| 228833 |
| 229994 |
| 229995 |
| AC22384 |
| B22708 |
| B22815 |
| 712002005 |
| N30109AC |
| N30109AF |
| N30109AG |
| N30109AH |
| N30109BA |
| MA36090 |
| MA36095 |
| N36209 |
| N36209AA |
| N36209AB |
| N36209AC |
| N36209AD |
| N36209AE |
| N36209AF |
| N36209AG |
| N36209B |
| N36209E |
| N36209F |
| N36209GA |
| N36209GC |
| N36209GD |
| N36209J |
| N36209K |
| N36209L |
| N36209M |
| N36209N |
| N36209R |
| N36209S |
| N36209T |
| N36209Y |
| N36209Z |
| V13276J10 |
| SC9 |
| KN36090 |
| 15506032 |
| 15513598 |
| 275131 |
| 276800 |
| 278491 |
| 281174 |
| 282028 |
| 284441C91 |
| 284442C91 |
| 284443C91 |
| 285163 |
| 285231 |
| 286806 |
| 286918 |
| 287302 |
| 287331 |
| 287349 |
| 160460 |
| 160461 |
| 160462 |
| 287904 |
| 287905 |
| 287906 |
| 287907 |
| 287917 |
| 2015233 |
| 2015234 |
| 2015238 |
| A22384 |
| A22384001 |
| SC09 |
| Z563276J10 |
| Z573276J10 |
| 2029211 |
| 287908 |
| 287909 |
| 287910 |
| 287911 |
| 287912 |
| 287913 |
| 287914 |
| 287915 |
| 287916 |
| 287919 |
| 28792 |
| 287920 |
| 287921 |
| 287922 |
| 287923 |
| 287924 |
| 287 |
| 40085881 |
| P66938 |
| A21542 |
| BSC09 |
