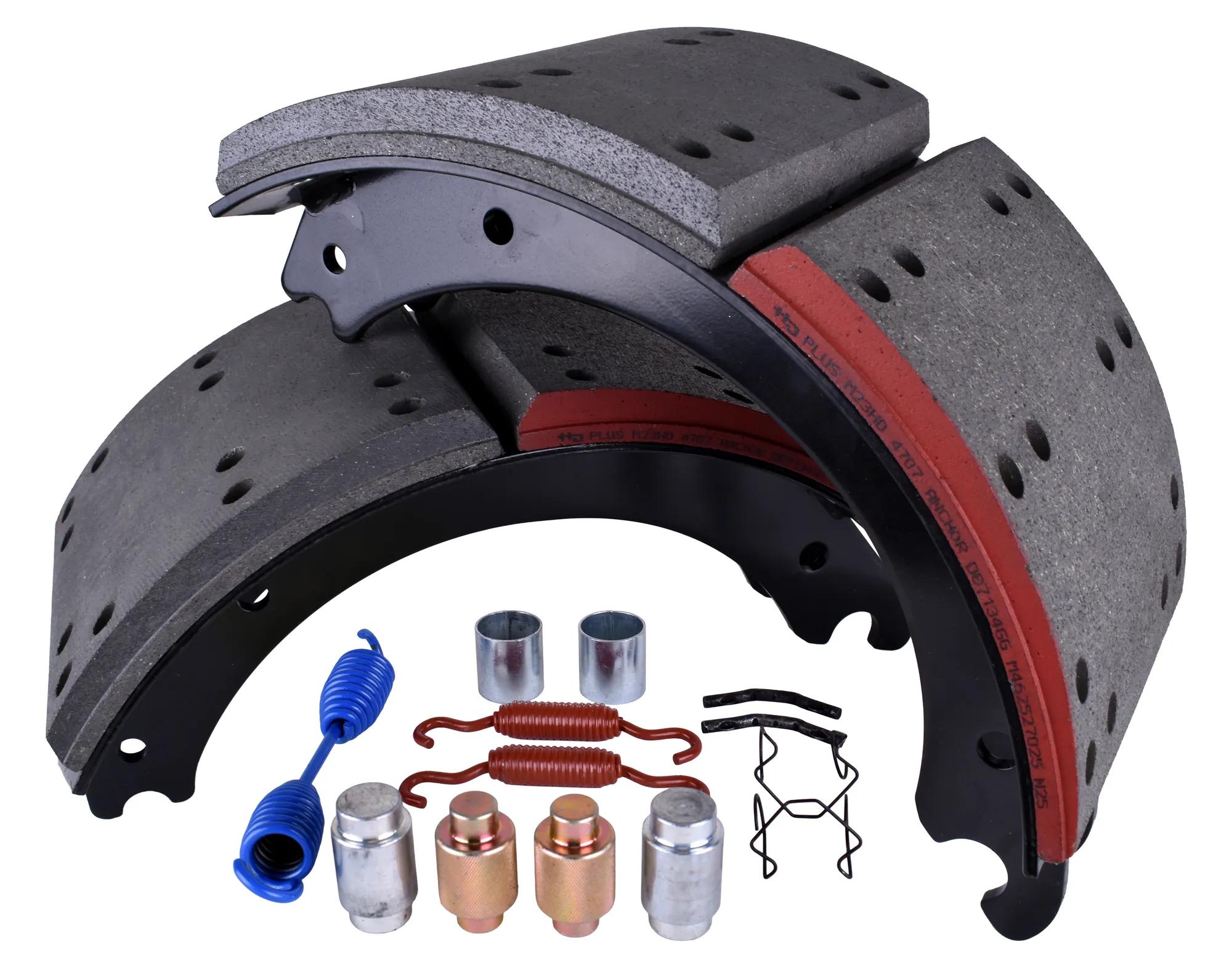

HD Plus Brake Shoes Kit, new, 4692M23HD, 12-1/2 in x 7-1/2 in
#TRB088M23HD-6N
Product Overview
HD Plus Brakes provide world-class quality and dependability, combined with industry-proven form, fit and severe duty performance. HD Plus’s heaviest grade of friction, M23HD provides severe duty braking confidence combined with long drum and lining life for maximum fleet uptime in severe duty applications such as tankers, logging, aggregates, refuse, and other tough applications! Using the highest quality raw materials and greater density friction formulations than competitors, HD Plus’s M23SHD delivers exceptionally consistent stopping power for severe conditions under extra-heavy loads and tough terrain. Select M23HD part numbers are RSD-approved, and all M23HD lining is 100% copper free.
Features & Benefits
- HD Plus’s M23HD delivers exceptionally consistent stopping power for severe conditions under extra-heavy loads and tough terrain.
- Provides exceptional fade & recovery performance at high temperatures.
- Engineered specifically for best performance and durability in severe duty applications such as tankers, logging, aggregates, refuse, and other tough applications.
- HD Plus’s heaviest grade of friction provides severe duty braking confidence combined with long drum and lining life.
- HD Plus Friction is N-rated and compliant for the most stringent current Copper-Free regulations
- Select part numbers are available for RSD-approved Lining
Specifications
| Application | Spicer & Standard Forge U & FT Brakes 2nd Generation |
| Brake Shoe Lining Grade | M23HD |
| Brake Shoe Width | 7-1/2 in (19.05 cm) |
| Brake Size | 12-1/2 in x 7-1/2 in |
| Brake Surface Diameter | 12-1/2 in (31.75 cm) |
| Brake Surface Width | 7-1/2 in (19.05 cm) |
| Brake Type | Dana Spicer Fast Change 2 |
| Contains | 2 lined new brake shoes with hardware, boxed |
| FMSI | 4692 |
| Friction Lining Mfg | HD Plus |
| Height | 7-1/2 in (19.05 cm) |
| New or Remanufactured | New |
| Rivet Holes | 20 |
| Rivet Size | 1/4 in (0.64 cm) |
| Type | Fabricated |
| Weight Rating | 26,000 lbs |
| Product Category | Two Shoes Boxed New with Hardware |
| Brake Shoe Type | AIR |
