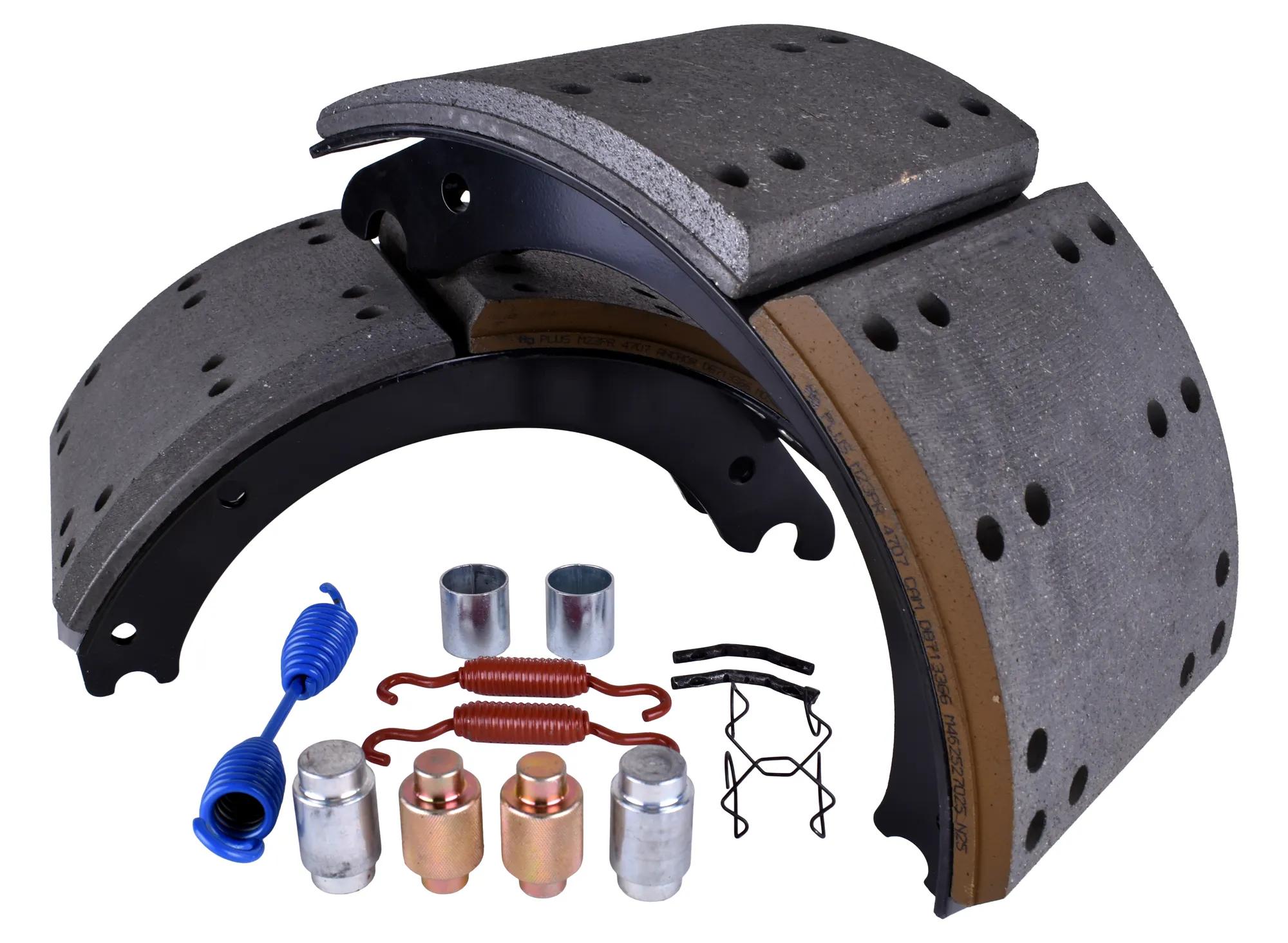

HD Plus Brake Shoes Kit, reman, 4719M23PR, 16-1/2 in x 5 in
#TRB078M23PR-6R
Product Overview
HD Plus Brakes provide world-class quality and dependability, combined with industry-proven form, fit and premium performance. HD Plus’s track-tested, OEM-approved M23PR premium brake lining uses only superior quality raw materials and higher density friction formulations than competitors, resulting in excellent fade & recovery performance over a wide range of applications. Combine that with the superior drum and lining wear for smooth, consistent braking and better system response! Select M23PR part numbers are available for RSD-approved lining, and all M23PR is 100% copper-free to meet the most stringent regulations.
Features & Benefits
Features & Benefits
TRB078M23PR-6R - Features Documents - A
TRB078M23PR-6R - Features Documents - B
TRB078M23PR-6R - Features Documents - C
TRB078M23PR-6R - Features Documents - D
- HD Plus’s Premium, OEM-approved M23PR brake lining provides superior stopping power with excellent drum and lining life, perfect for Truck, Tractor, Trailer, Multi-Duty, and Line Haul applications
- Delivers consistent stopping performance as well as excellent fade & recovery performance over a wide range of applications.
- HD Plus’s premium M23PR lining formulations are track tested to ensure it meets or beats the new Reduced Stopping Distance requirements and proven on OE builds
- Select part numbers are available for RSD-approved Lining
- HD Plus Friction is N-rated and compliant for the most stringent current Copper-Free regulations
- Meets or beats OE specifications for fit, form and performance.
Specifications
| Application | Essieu avant et arrière sans languette Eaton ES Extended Service 2e génération |
| Classe de garniture de segment de frein | M23PR |
| Largeur de segment de frein | 16-1/2 po (41,91 cm) |
| Dimension du frein | 16-1/2 po x 5 po |
| Diamètre de la surface du frein | 16-1/2 po (41,91 cm) |
| Largeur de la surface de freinage | 5 po (12,7 cm) |
| Type de frein | Frein Eaton ES - 2e version |
| Contient | 2 garnitures de freins reconditionnées avec quincaillerie, en boîte |
| FMSI | 4719 |
| Fabricant de revêtement de friction | HD Plus |
| Hauteur | 5 po (12,7 cm) |
| Neuf ou remanufacturé | Reconditionné |
| Rivet Holes | 20 |
| Rivet Size | 1/4 po (0,64 cm) |
| Type | Fabriqué |
| Weight Rating | 23,000 lbs |
| Product Category | Deux sabots de frein reconditionnés, emballés avec quincaillerie |
| Brake Shoe Type | Pneumatique |
