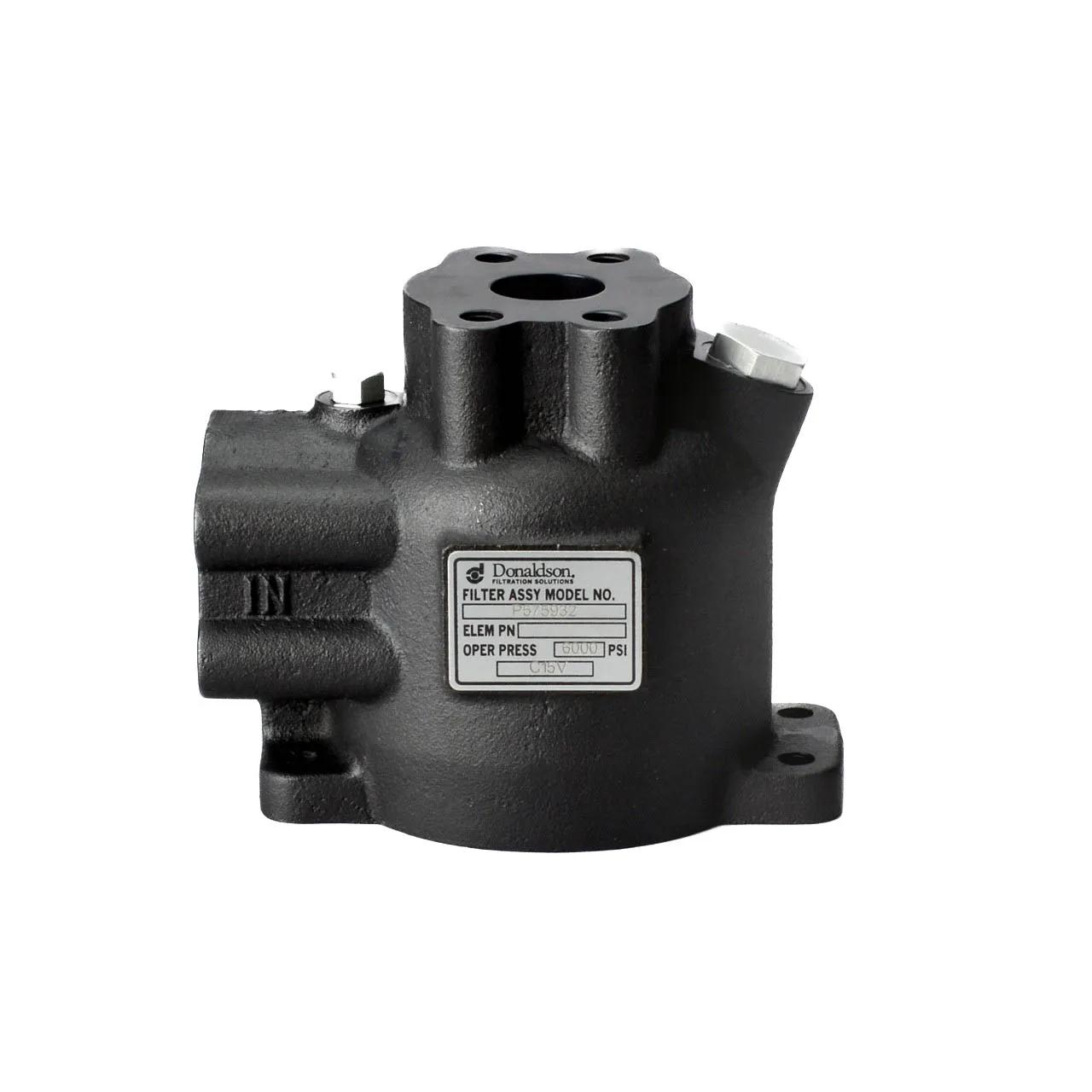

HEAD ASSEMBLY
#DONP575932
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 3.45 bar |
| Bypass Valve Setting LR | 3,45 bar |
| Efficiency Beta 1000 | 11 Micron |
| Efficiency Beta 1000 (Micron) | 14 Micron |
| Efficiency Beta 2 | 75 Micron |
| Efficiency Beta 2 (Micron) | 75 Micron |
| Efficiency Test Std | ISO 16889 |
| Family | W620 |
| Gasket ID | 1.86 in (47.3 mm) |
| Gasket OD | 2.14 in (54.4 mm) |
| Height | 5.63 in (143.01 mm) |
| Inlet Size | 1 1/4 SAE 4 BOLT CODE 62 |
| Inner Diameter | 2.87 in (72.9 mm) |
| Length | 4-49/64 in (12.12 cm) |
| Media Brand | Synteq XP™ |
| Outer Diameter | 1 1/4 SAE 4 Bolt Code 62 |
| Outlet Diameter | 2.25 in (57.15 mm) |
| Outlet Size | 1 1/4 SAE 4 BOLT CODE 62 |
| Overall Length | 35.94 in (912.9 mm) |
| Series | W620 |
| Length Range | 4 to 5 in |
| Temperature Range | -40 to 250°F / -40 to 121°C |
| Width | 6.58 in (167.2 mm) |
