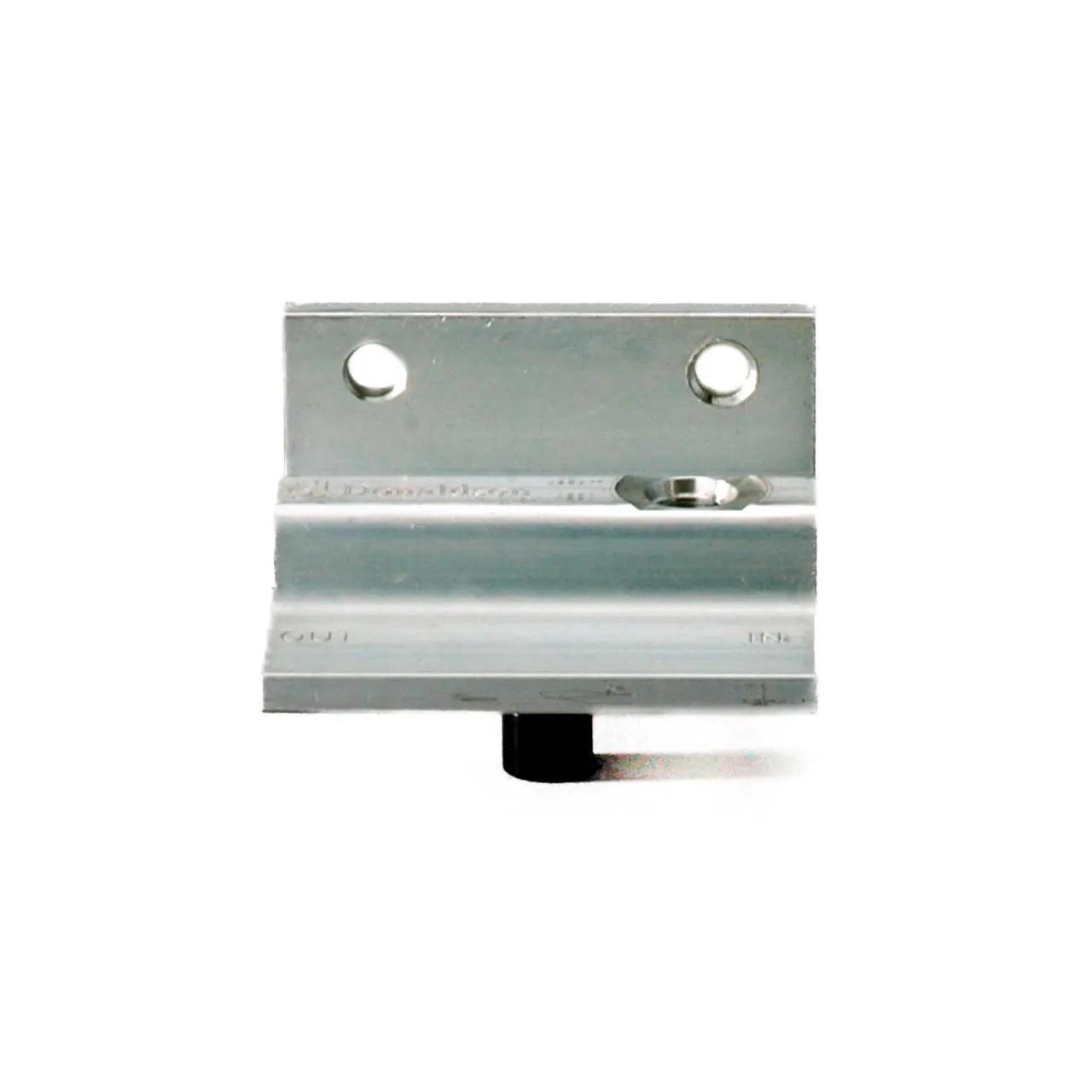

Head Assembly Fuel

#DONP562263

Product Overview


HEAD ASSEMBLY, FUEL

Features & Benefits


  • Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
  • Products and technology designed to consistently meet required specifications – and your expectations.
  • Superior performance in thousands of on- and off-road applications.

Specifications


Bowl Thread 3 1/4-10 UN
Bypass Valve No
Diameter Range 3 to 3.99 in
Efficiency 50% 3 Micron
Efficiency 95% 10 Micron
Efficiency 99% 9 Micron
Efficiency Beta 75 4 Micron
Emulsified H2O Efficiency 95 Percent
Filter-to-Head Thread M16 x 1.5
Height 2-7/16 in (6.2 cm)
Inlet Size 1/2-20 UN
Length 3-17/64 in (8.31 cm)
Notes Not for Marine Applications
Outer Diameter 1/2-20 UN
Outlet Size 1/2-20 UN
Length Range 3 to 3.99 in
Width 3.27 in (83.1 mm)

Interchanges & Equivalent parts:


DONP174775, P174775, 2191-P562263, DN P562263, DN P562263, DONP562263, P562263
