2 POINTS

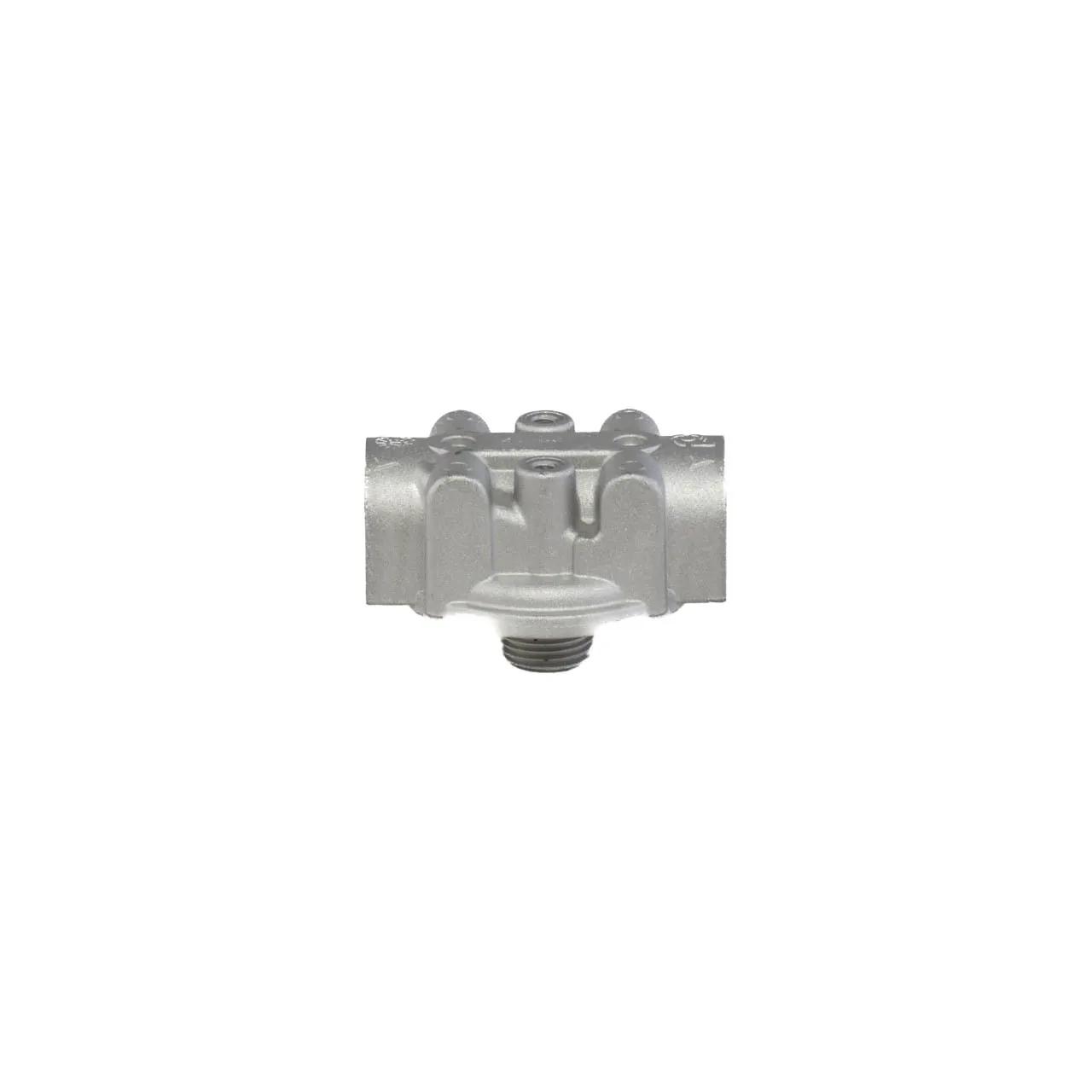

HEAD ASSEMBLY L: 3,7 in, OD: SAE-12
#DONP563279
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 14.51 psi |
| Efficiency Beta 20 | 10 Micron |
| Efficiency Beta 20 (Micron) | 10 Micron |
| Filter-to-Head Thread | 1-12 UN |
| Height | 2-13/32 in |
| Inlet Size | SAE-12 |
| Length | 3-45/64 in |
| Outer Diameter | SAE-12 |
| Outlet Size | SAE-12 |
| Series | SP15/25 |
| Length Range | 3 to 3.99 in |
Interchanges & Equivalent parts:
| P563279 |
| 5053575 |
| DN P563279 |
| 053575 |
| 2191-P563279 |
| DONP563279 |
| 53575 |
