2 POINTS

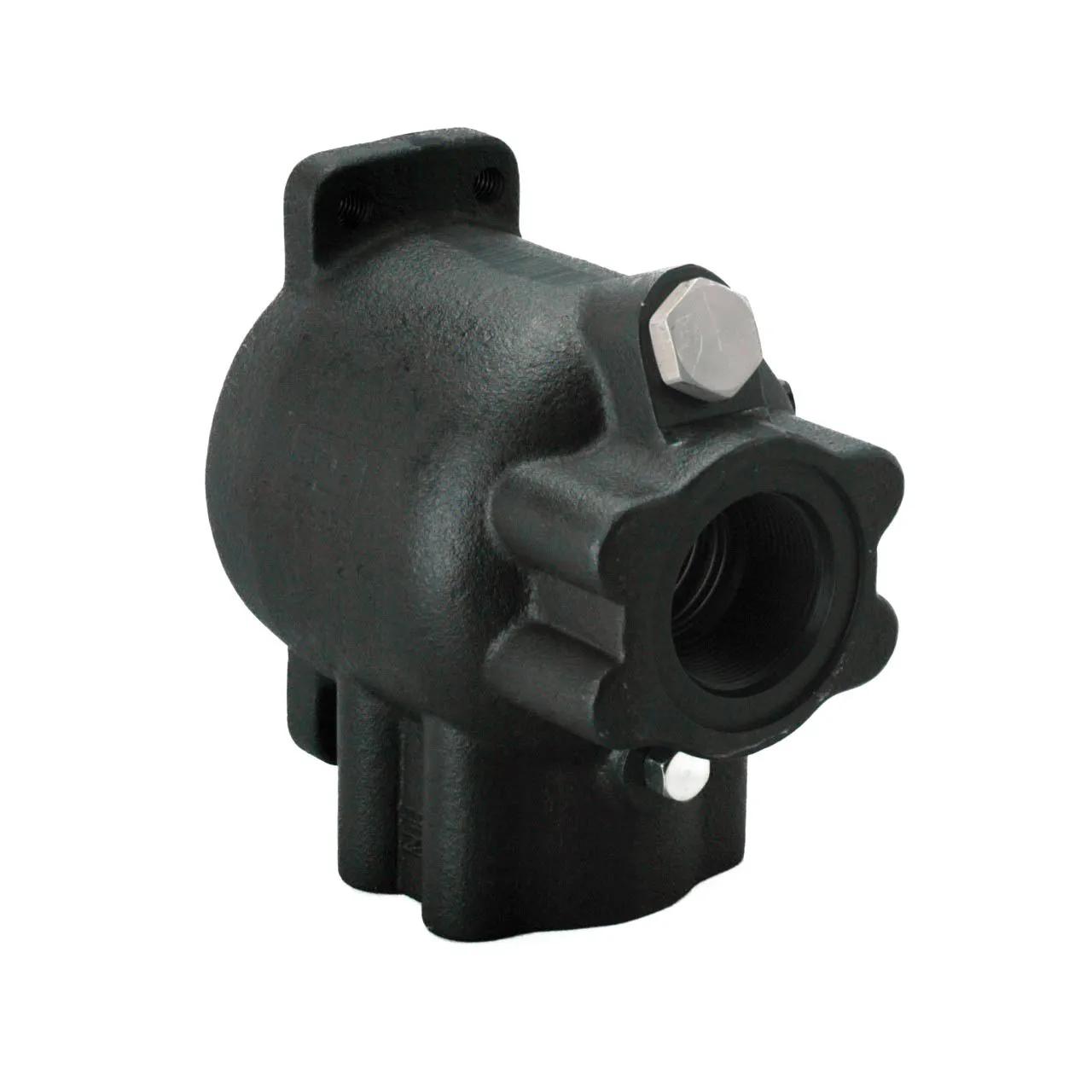

HEAD ASSEMBLY OD: SAE-24
#DONP574253
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 50.77 psi |
| Inlet Diameter | 3-21/32 in (9.3 cm) |
| Inlet Size | SAE-24 |
| Outer Diameter | SAE-24 |
| Outlet Diameter | 1.22 in |
| Outlet Size | SAE-24 |
| Series | W620 |
Specifications
| Body Length | 16-51/64 in (42.67 cm) |
| Construction | Forged |
| Handle Type | No Handle |
| Maximum Flow Rate | 100 ft³/min |
| Mounting Hardware Included | No |
| Overall Height | 7.5 in |
| Working Pressure | Max. 200 lbs/in² |
Interchanges & Equivalent parts:
| P574253 |
| W6201D4JNB |
