2 POINTS

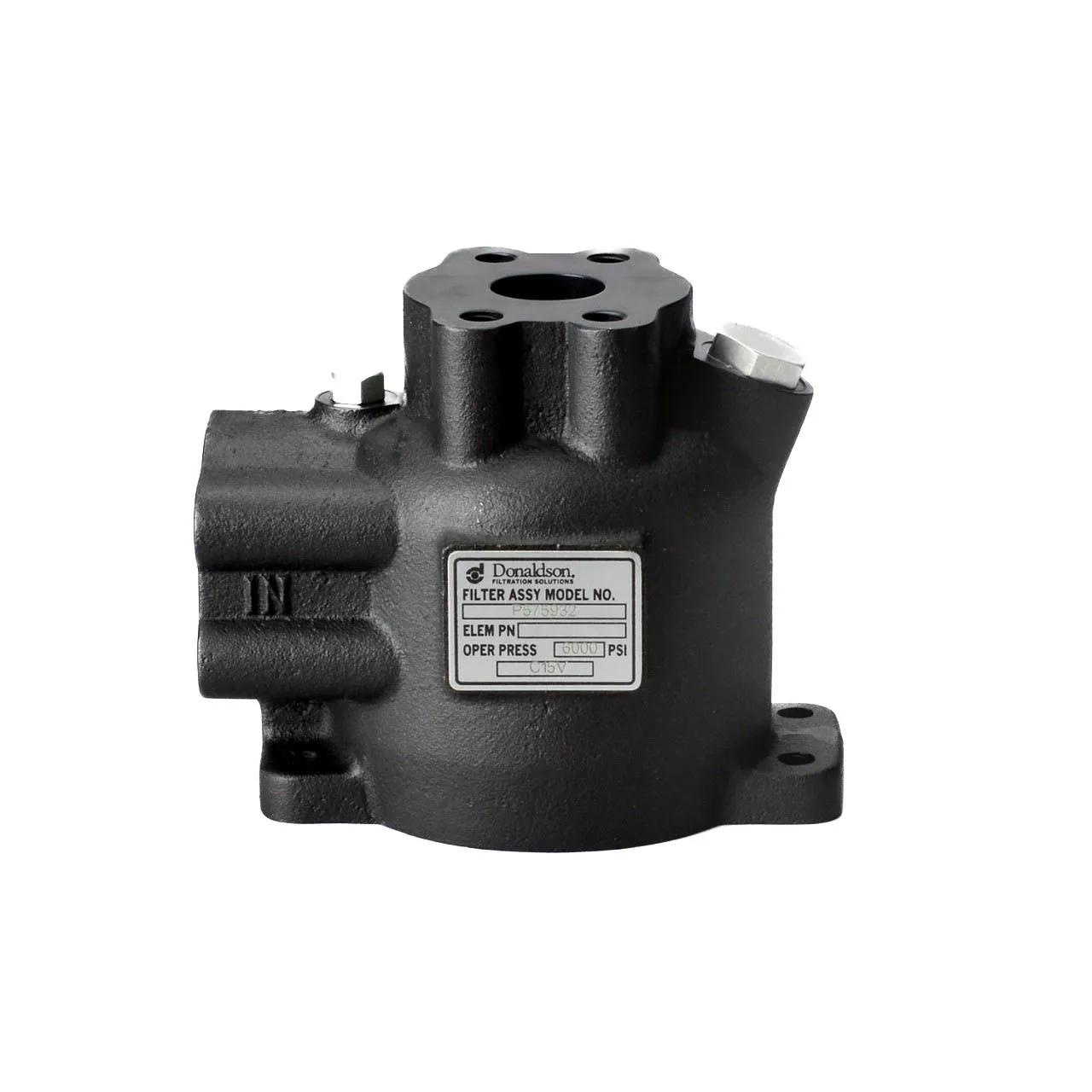

HEAD ASSEMBLY
#DONP575932
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 3.45 bar |
| Bypass Valve Setting LR | 3,45 bar |
| Efficiency Beta 20 | 40 Micron |
| Efficiency Beta 200 (Micron) | 23 Micron |
| Efficiency Beta 20 (Micron) | 40 Micron |
| Family | W620 |
| Height | 5-5/8 in |
| Inlet Diameter | 1-21/32 in |
| Inlet Size | 1 1/4 SAE 4 BOLT CODE 62 |
| Length | 4-49/64 in |
| Media Brand | Synteq XP™ |
| Outer Diameter | 1 1/4 SAE 4 Bolt Code 62 |
| Outlet Diameter | 2.25 in |
| Outlet Size | 1 1/4 SAE 4 BOLT CODE 62 |
| Primary Application | PALL HC9604FKN16H |
| Series | W620 |
| Length Range | 4 to 4.99 in |
| Temperature Range | -40 to 250°F / -40 to 121°C |
| Water Capacity | 1800 ml |
| Width | 6-37/64 in |
Specifications
| Pressure Range (psi) | 7 to 125 psi |
Interchanges & Equivalent parts:
| P575932 |
| W6201Q4JNV |
