2 POINTS

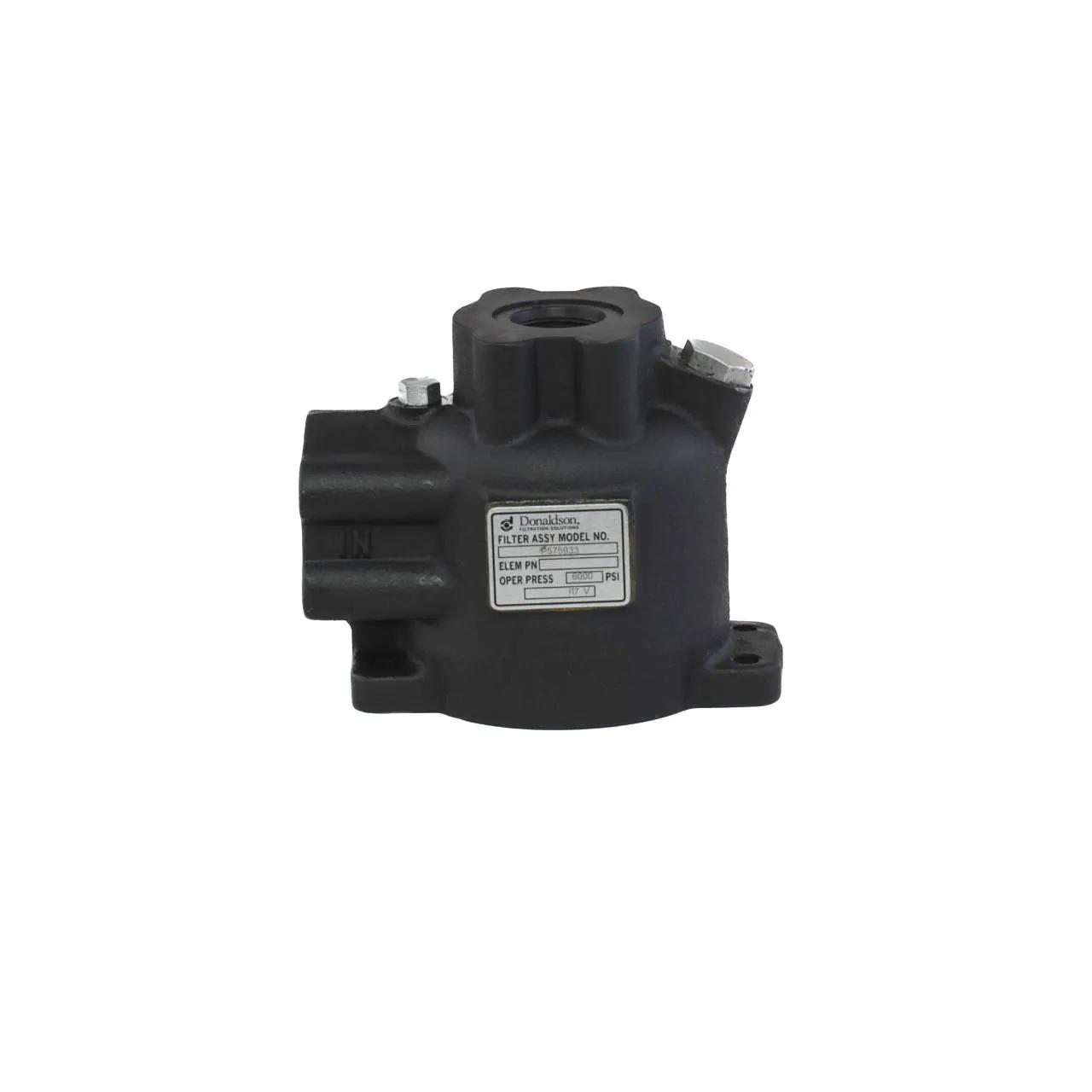

HEAD ASSEMBLY
#DONP575933
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 6.2 bar |
| Bypass Valve Setting LR | 6,21 bar |
| Family | W620 |
| Height | 5-5/8 in |
| Inlet Diameter | 1-21/32 in |
| Inlet Size | SAE-16 |
| Length | 4-49/64 in |
| Outer Diameter | SAE-16 |
| Outlet Diameter | 1.42 in |
| Outlet Size | SAE-16 |
| Series | W620 |
| Length Range | 4 to 4.99 in |
| Width | 6-37/64 in |
Interchanges & Equivalent parts:
| P575933 |
| W6201B6JNV |
