2 POINTS

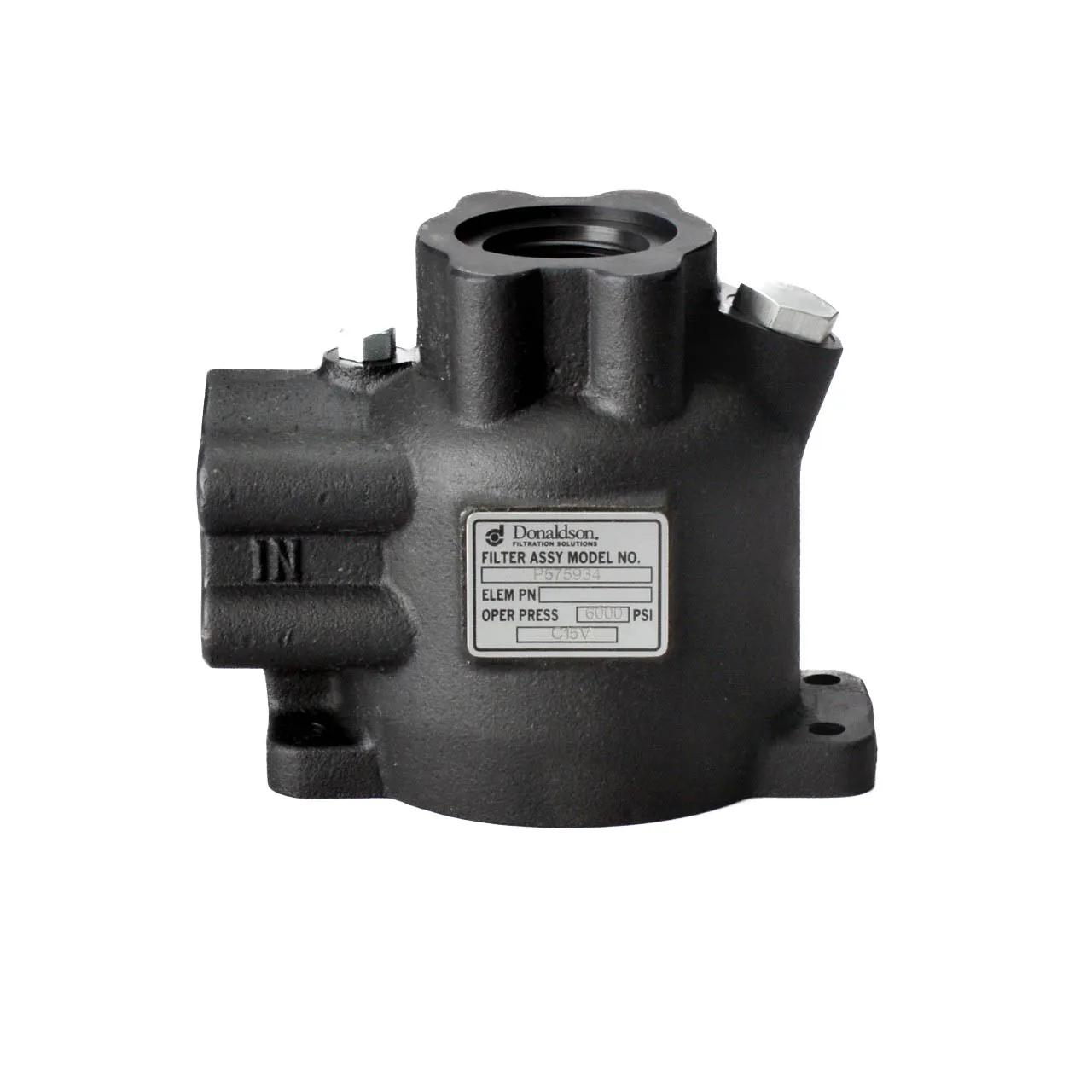

HEAD ASSEMBLY
#DONP575934
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 3.45 bar |
| Bypass Valve Setting LR | 3,45 bar |
| Family | W620 |
| Height | 5-5/8 in |
| Inlet Size | SAE-20 |
| Length | 4-49/64 in |
| Outer Diameter | SAE-20 |
| Outlet Size | SAE-20 |
| Series | W620 |
| Length Range | 4 to 4.99 in |
| Width | 6-37/64 in |
Specifications
| Body Length | 20-13/64 in (51.31 cm) |
| Construction | Forged |
| Handle Type | No Handle |
| Mounting Hardware Included | No |
| Working Pressure | Max. 150 lb/in² |
Interchanges & Equivalent parts:
| W6201C4JNV |
| P575934 |
