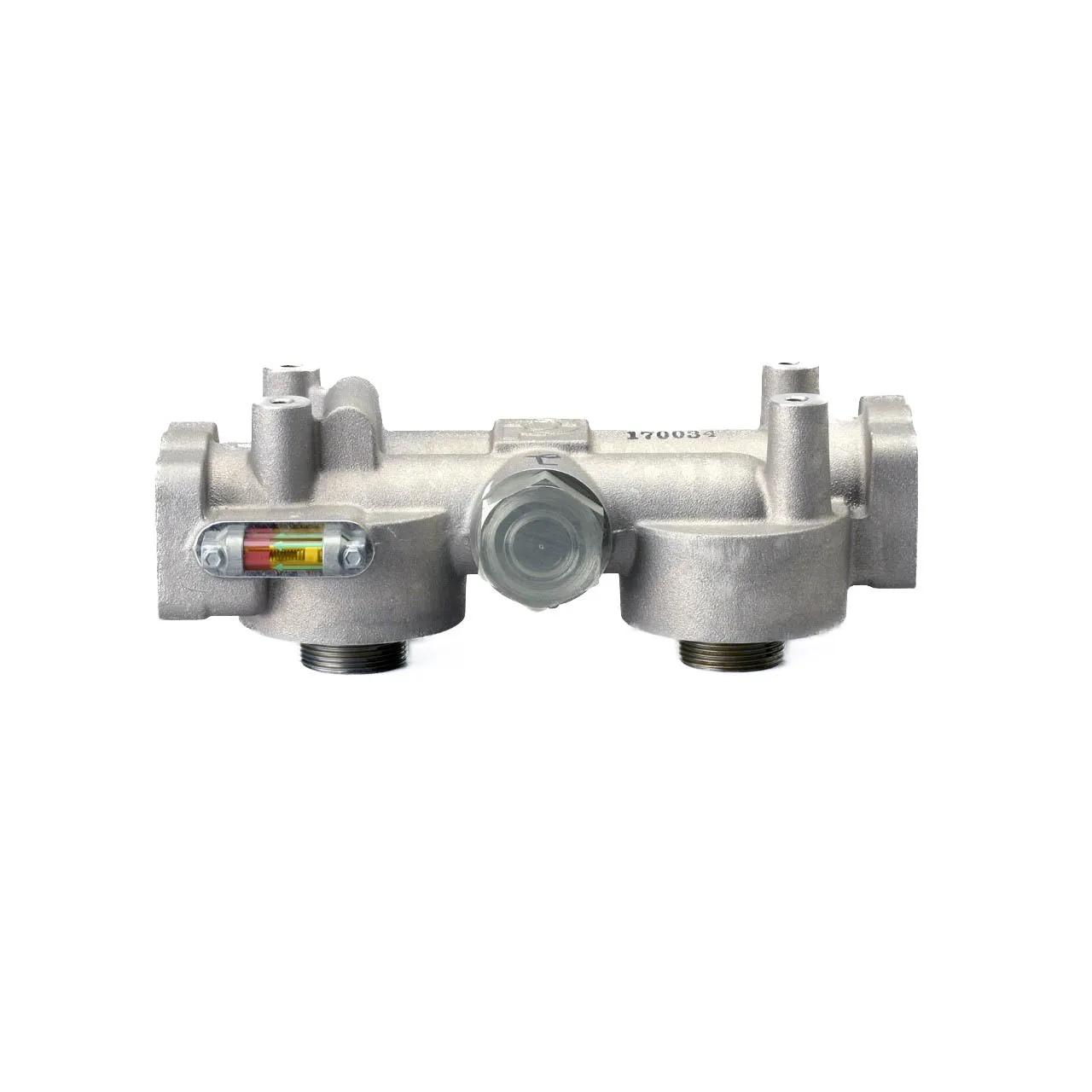

Head Assy L: 11,84 in, OD: 1 1/2-11 1/2 NPT , H: 5,15 in
#DONP169985
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 24.66 psi (1.7 bar) |
| Family | HMK25 |
| Filter-to-Head Thread | 1 3/4-12 UN (x2) |
| Height | 5-5/32 in |
| Inlet Size | 1 1/2 NPT |
| Length | 11-27/32 in |
| Outer Diameter | 1 1/2-11 1/2 NPT |
| Outlet Size | 1 1/2 NPT |
| Series | HMK05/25 |
| Length Range | 11 to 11.99 in |
Interchanges & Equivalent parts:
| WM1002U33DBSB |
| 501818541 |
| DN P169985 |
| 050181850041 |
| 2191-P169985 |
| DONP169985 |
| DN P169985 |
| 50181850041 |
