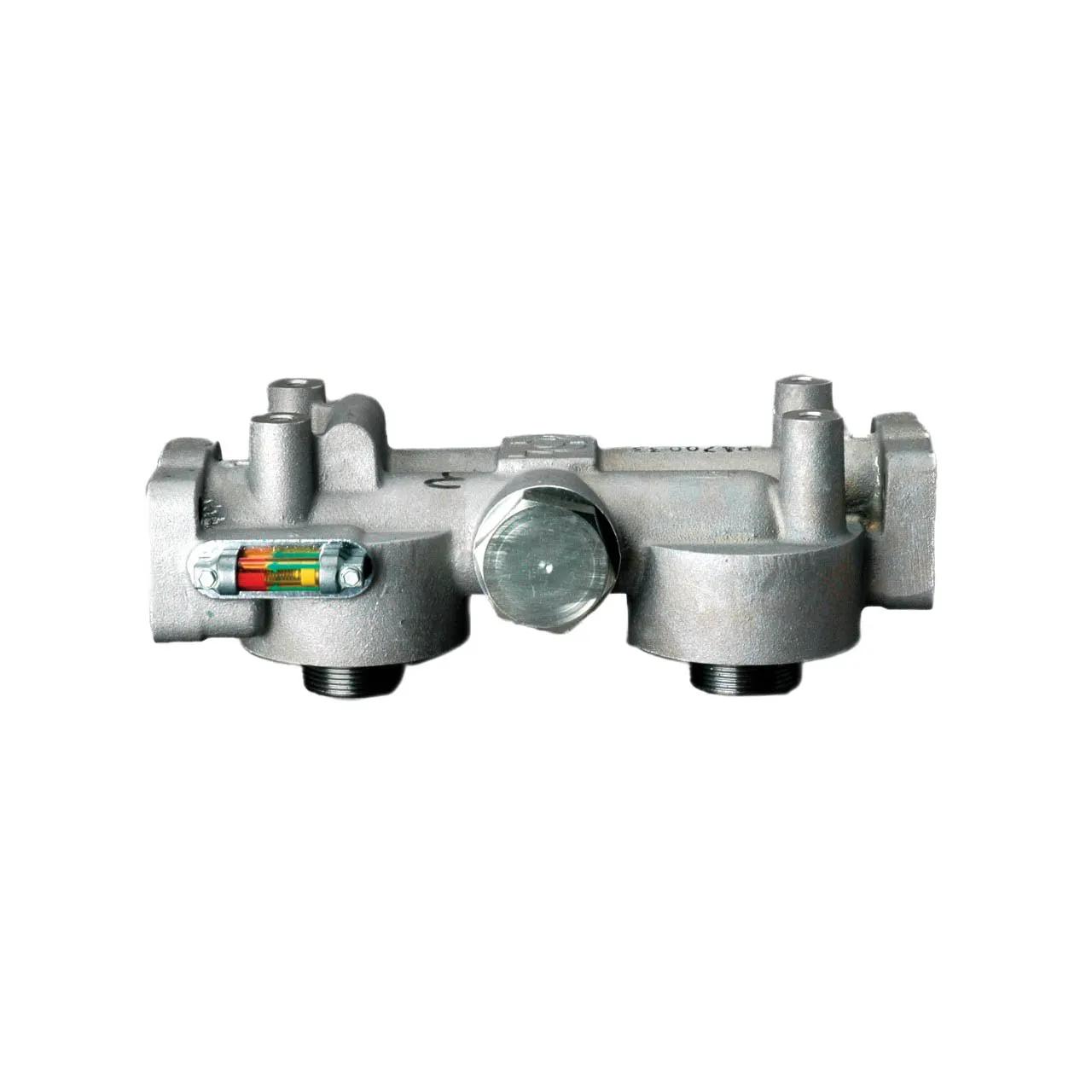

Head Assy L: 11,84 in, OD: 1 1/2 SAE 4 Bolt CDEe 61 , H: 6,3 in
#DONP169984
Product Overview
Why Choose Donaldson?
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Bypass Valve | No |
| Family | HMK25 |
| Filter-to-Head Thread | 1 3/4-12 UN (x2) |
| Height | 6-19/64 in (16 cm) |
| Inlet Size | 1 1/2 SAE 4 BOLT CODE 61 |
| Length | 11-27/32 in (30.07 cm) |
| Outer Diameter | 1 1/2 SAE 4 Bolt Code 61 |
| Outlet Size | 1 1/2 SAE 4 BOLT CODE 61 |
| Series | HMK05/25 |
| Length Range | 11 to 11.99 in |
Interchanges & Equivalent parts:
| WM1002E13DBSB |
| R55632D1 |
| DN P169984 |
| DN P169984 |
| 08415015 |
| 2191-P169984 |
| DONP169984 |
| 8415015 |
