Head Assy L: 12,02 in, OD: SAE-24 , H: 6,3 in
#DONP167297
Product Overview

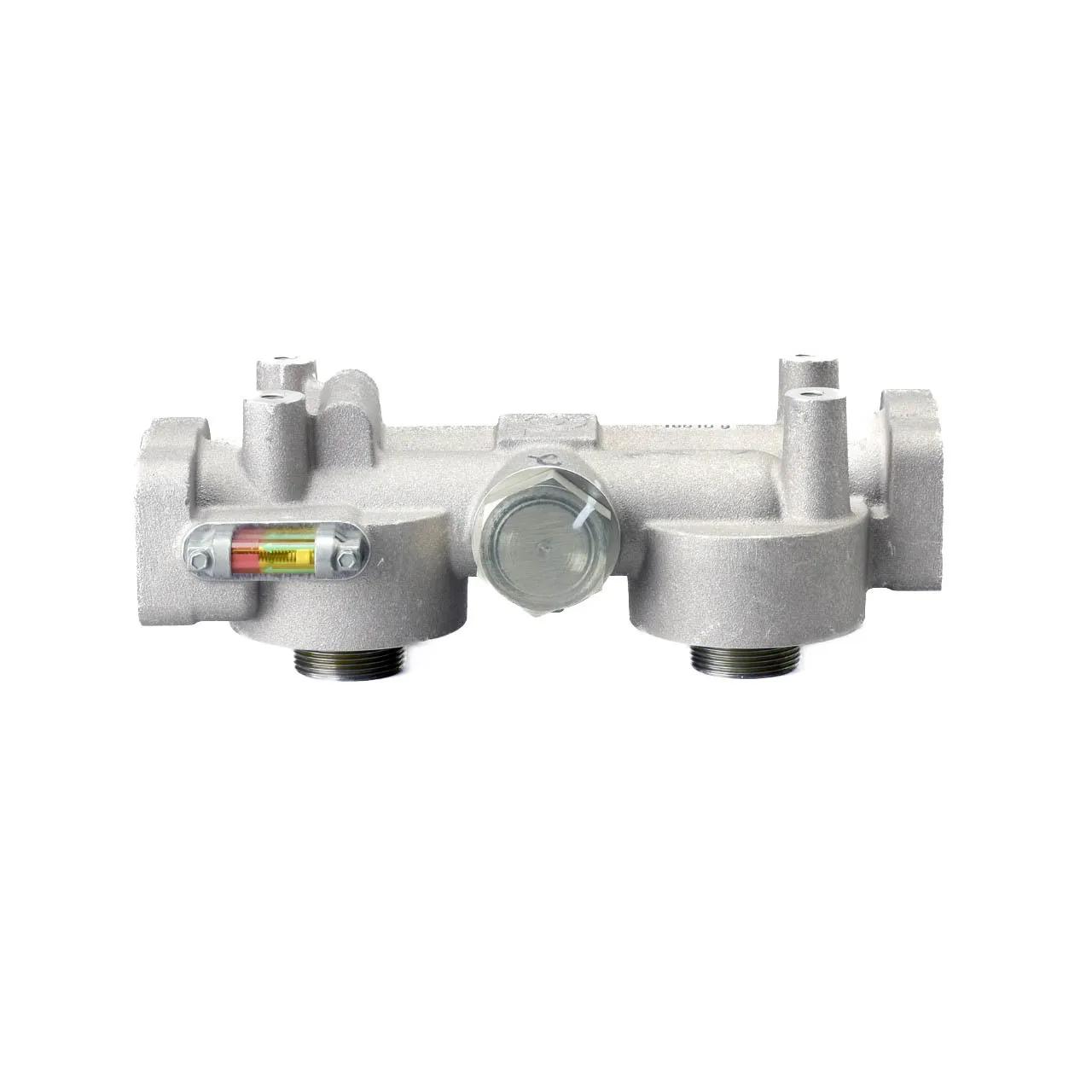

HEAD ASSEMBLY, HMK25 DURAMAX
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 24.66 psi (1.7 bar) |
| Family | HMK25 |
| Filter-to-Head Thread | 1 3/4-12 UN (x2) |
| Height | 6-19/64 in (16 cm) |
| Inlet Size | 1 1/2 SAE |
| Length | 12-1/64 in (30.53 cm) |
| Outer Diameter | SAE-24 |
| Outlet Size | 1 1/2 SAE 24 |
| Series | HMK05/25 |
| Length Range | 12 to 12.99 in |
Interchanges & Equivalent parts:
| P167297 |
| WM1002D33DBSB |
| VLS011A |
| 16140 |
| 016140A |
| 157487 |
| 549740 |
| DN P167297 |
| DN P167297 |
| 016140 |
| 2191-P167297 |
| DONP167297 |
