2 POINTS

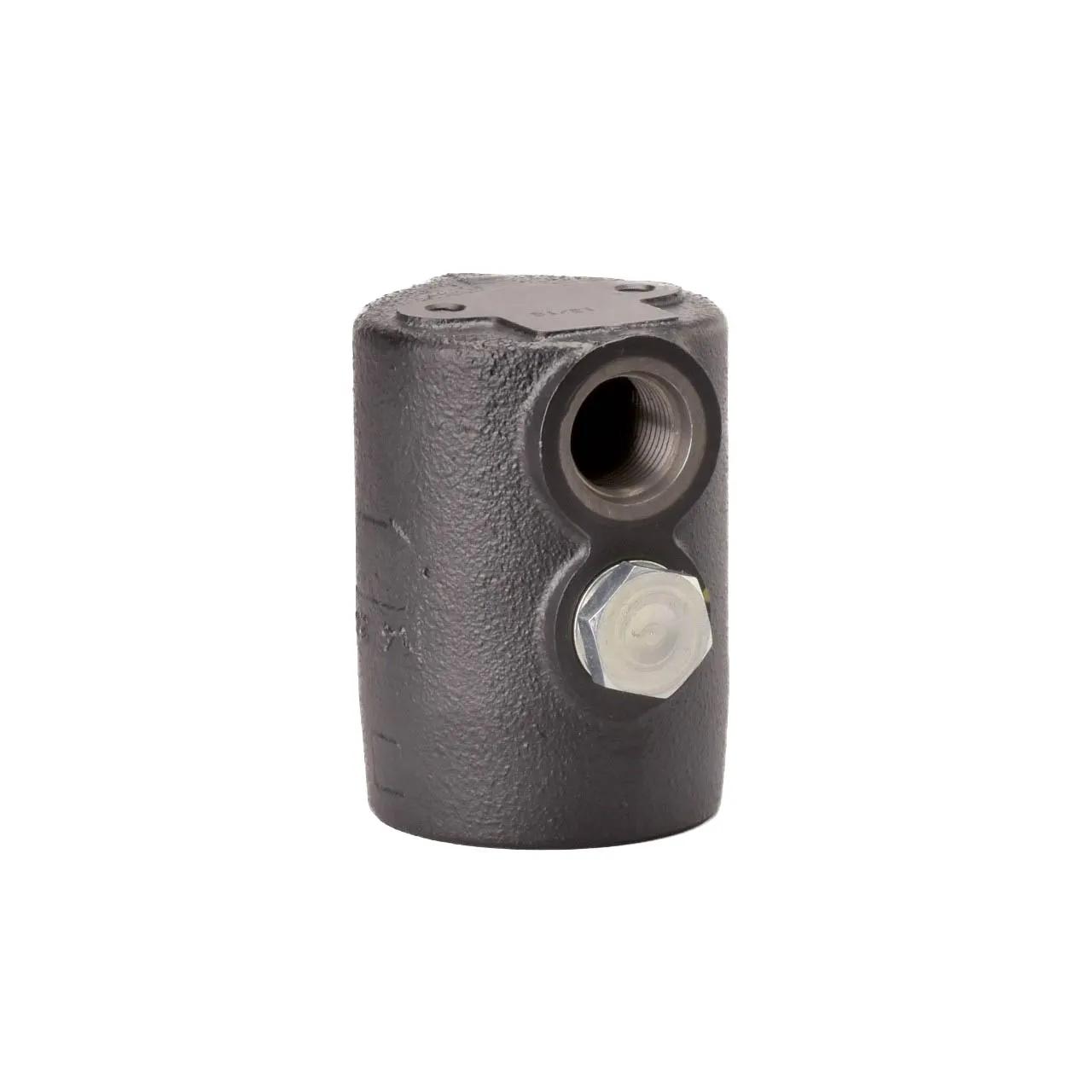

Head Assy L: 3,7 in, OD: SAE-12 , H: 4,49 in
#DONP762767
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 87.03 psi (6 bar) |
| Filter-to-Head Thread | M68 x 1,5 |
| Height | 4-31/64 in |
| Inlet Size | SAE-12 |
| Length | 3-45/64 in |
| Outer Diameter | SAE-12 |
| Outlet Size | SAE-12 |
| Series | FPK02 |
| Length Range | 3 to 3.99 in |
Interchanges & Equivalent parts:
| P762767 |
| DN P762767 |
| DN P762767 |
| 2191-P762767 |
| DONP762767 |
