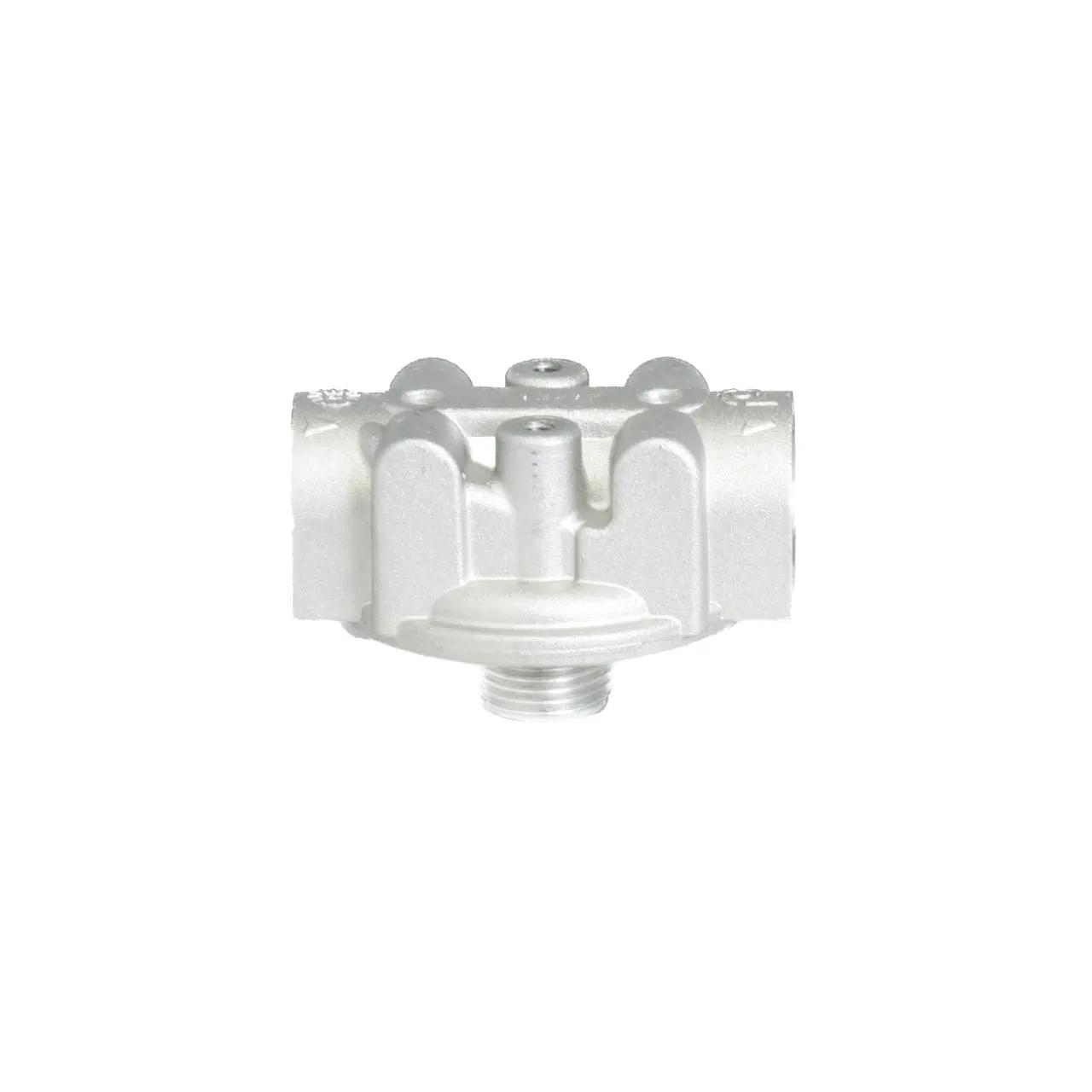

Head Assy L: 3,74 in, OD: SAE-12 , H: 2,4 in

#DONP561141

See More
See Less

Features & Benefits


  • Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
  • Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
  • Products and technology designed to consistently meet required specifications - and your expectations.

Specifications


Bypass Valve Yes
Bypass Valve Setting LR 24.66 psi (1.7 bar)
Filter-to-Head Thread 1-12 UN
Height 2-13/32 in
Inlet Size SAE-12
Length 3-47/64 in
Outer Diameter SAE-12
Outlet Size SAE-12
Series SP15/25
Length Range 3 to 3.99 in

Interchanges & Equivalent parts:


P561141
SP15SHN0
AN202895
506827500
133274
136403AA
PAF16PZ10S
7618906
PAF16P10S
7618900
PAF16PZ25S
7639827
2191-P561141
DONP561141
DN P561141
DN P561141
See more
