2 POINTS

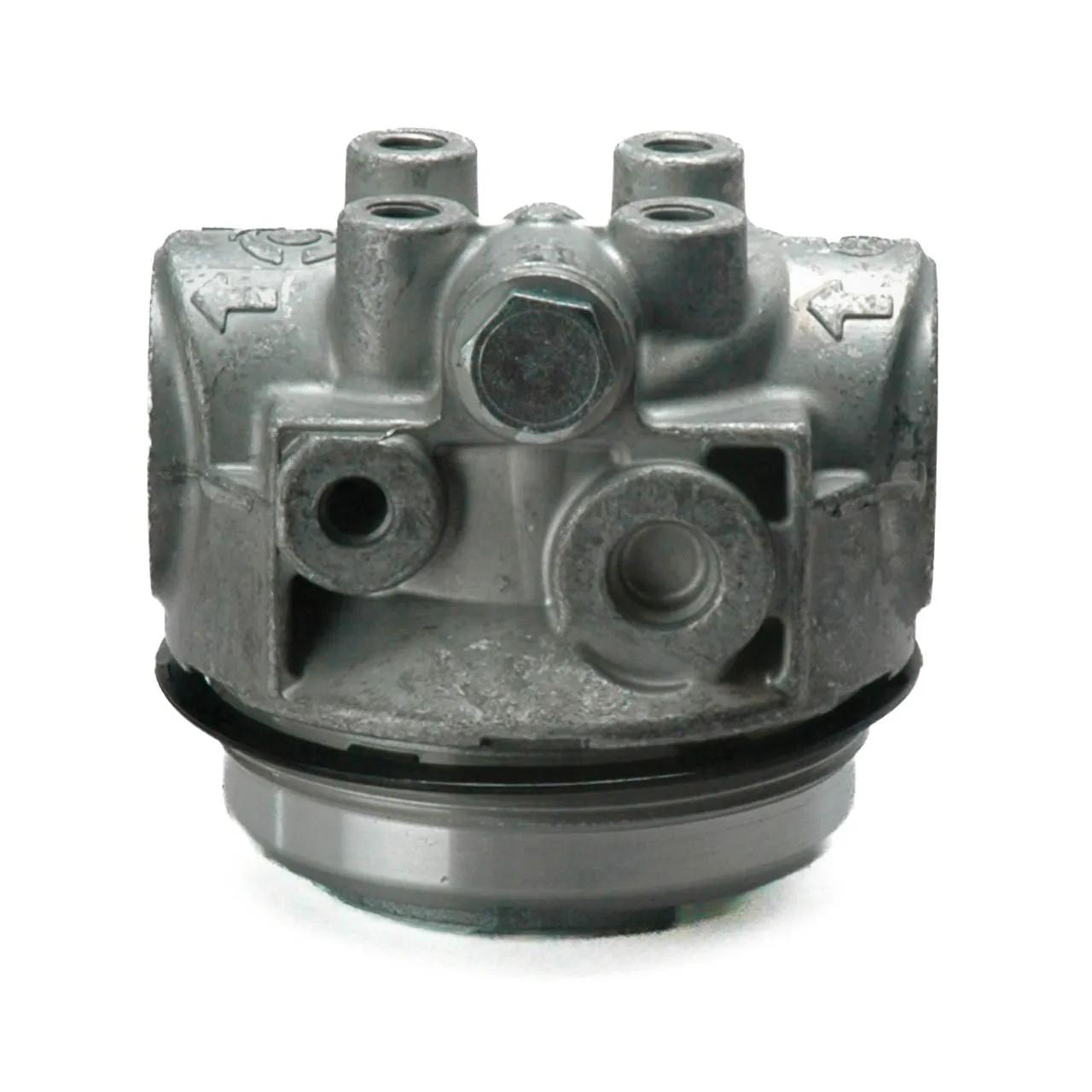

Head Assy L: 3,99 in, OD: SAE-12 , H: 3,66 in
#DONP568856
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 50.77 psi (3.5 bar) |
| Filter-to-Head Thread | M87 x 2,5 |
| Height | 3-21/32 in |
| Inlet Size | SAE-12 |
| Length | 3-63/64 in |
| Outer Diameter | SAE-12 |
| Outlet Size | SAE-12 |
| Series | HNK04/05 |
| Length Range | 3 to 3.99 in |
Interchanges & Equivalent parts:
| P568856 |
