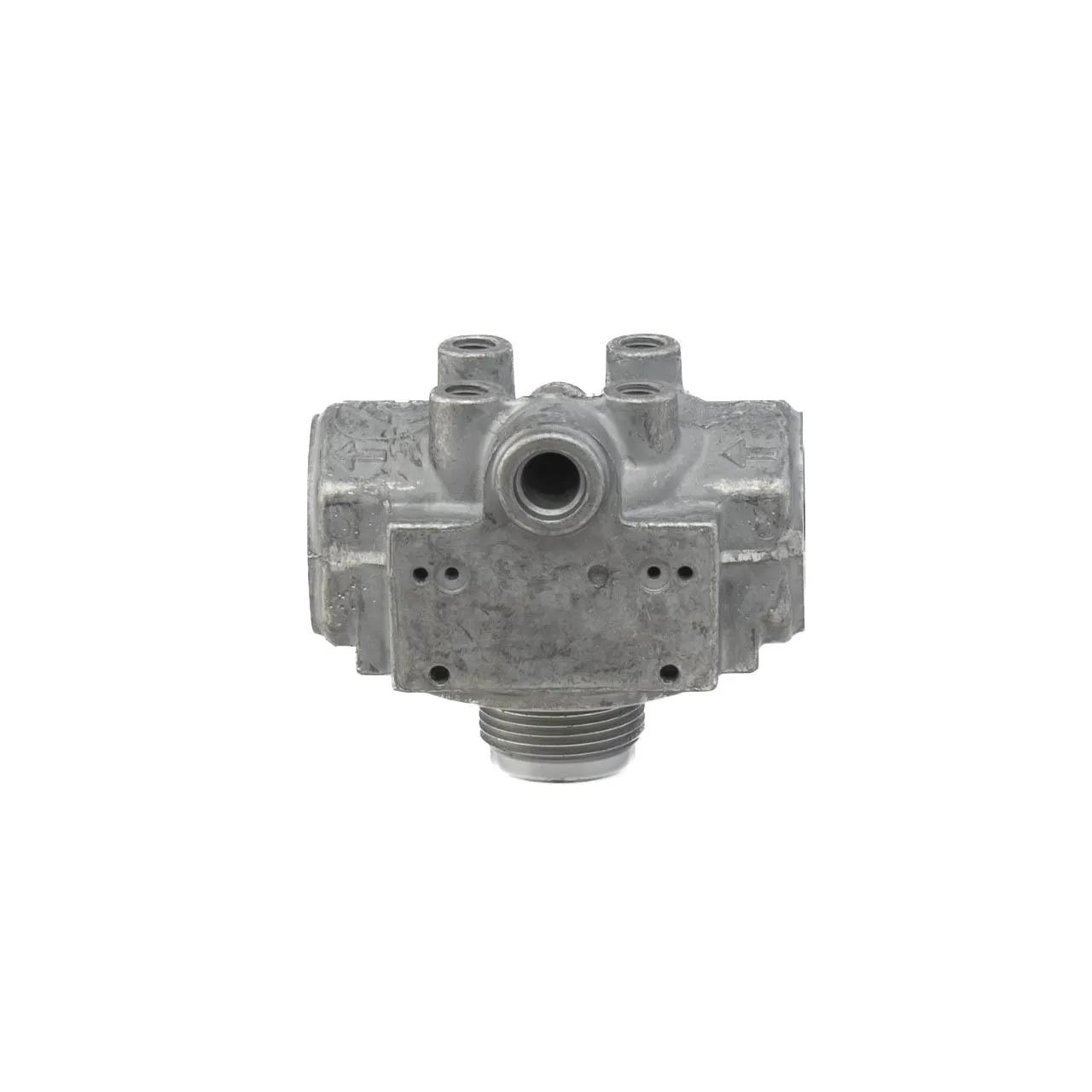

Head Assy L: 4,08 in, OD: 1-11 1/2 NPT , H: 3,38 in
#DONP169309
Product Overview
Head assembly, hmk04 duramax
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 24.66 psi (1.7 bar) |
| Family | HMK04 |
| Filter-to-Head Thread | 1 3/8-12 UN |
| Height | 3-3/8 in (8.59 cm) |
| Inlet Size | 1-11 1/2 NPT |
| Length | 4-5/64 in (10.36 cm) |
| Outer Diameter | 1-11 1/2 NPT |
| Outlet Size | 1-11 1/2 NPT |
| Series | HMK04/24 |
| Length Range | 4 to 4.99 in |
Interchanges & Equivalent parts:
| OB8731 |
| 118302400 |
| 35244 |
| DN P169309 |
| DN P169309 |
| 035244 |
| 2191-P169309 |
| DONP169309 |
