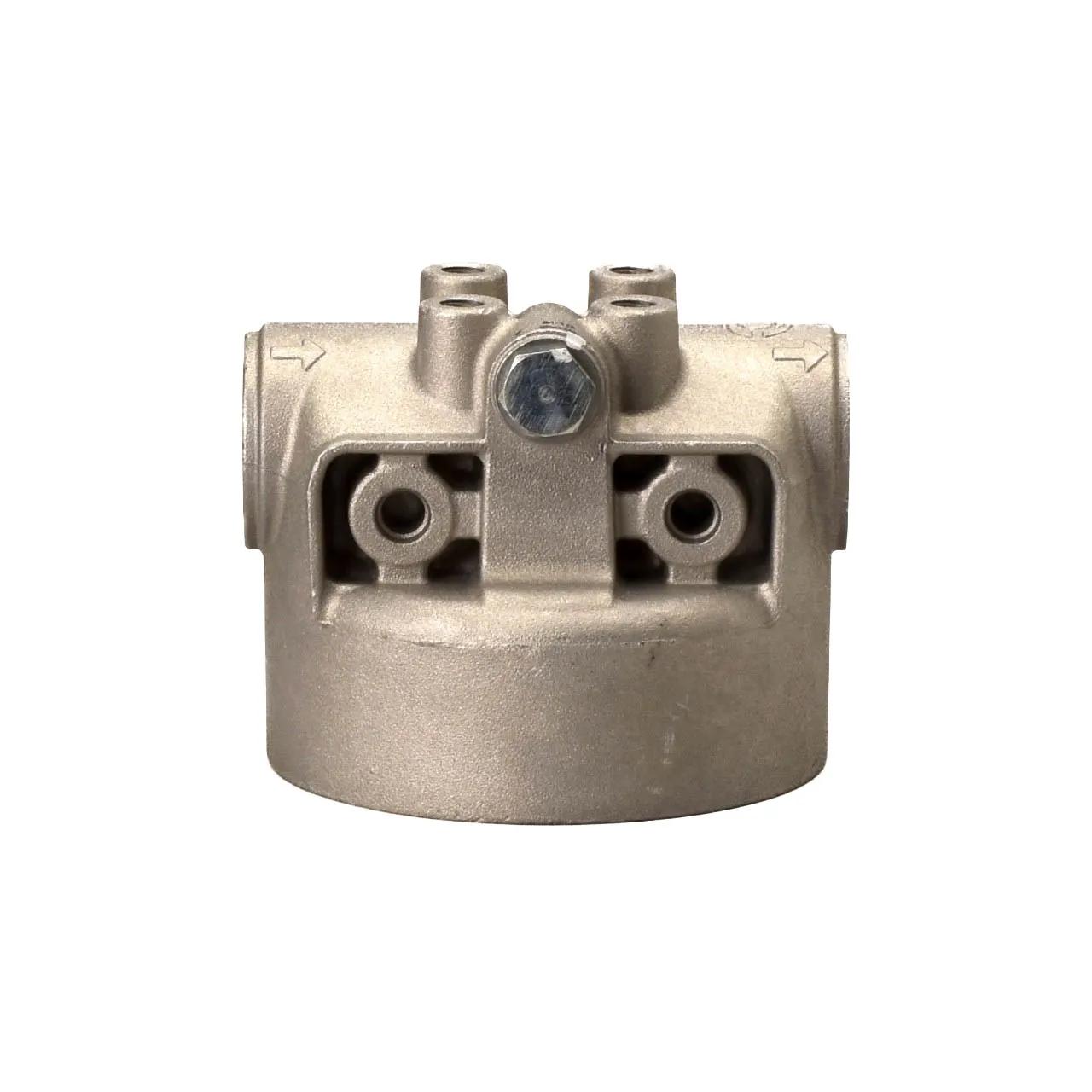

Head Assy L: 4,91 in, OD: 1 1/16-12 UN , H: 3,95 in
#DONP574995
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Application | PARKER 936602Q |
| Bolt Hole Circle Diameter | 2.87 in (72.9 mm) |
| Bolt Hole Diameter | 0.24 in (6.1 mm) |
| Bypass Valve | No |
| Height | 3.95 in (100.33 mm) |
| Inlet Diameter | 1.65 in (41.91 mm) |
| Inlet Size | 1 1/16-12 UN |
| Inner Diameter | 1.08 in (27.5 mm) |
| Length | 4-29/32 in (12.47 cm) |
| Outer Diameter | 1 1/16-12 UN |
| Outlet Size | 1 1/16-12 UN |
| Series | FLK90 |
| Length Range | 4 to 5 in |
| Thread Size | M106 x 2.5 |
| Overall Length | 6.12 in (155.5 mm) |
| Outlet Diameter | 2.52 in (64.01 mm) |
Specifications
| Number of Bolt Holes | 6 |
| Vehicle Make | Hydac/Hycon |
