Head Assy L: 4 in, OD: SAE-12 , H: 3,12 in
#DONP167473
Product Overview

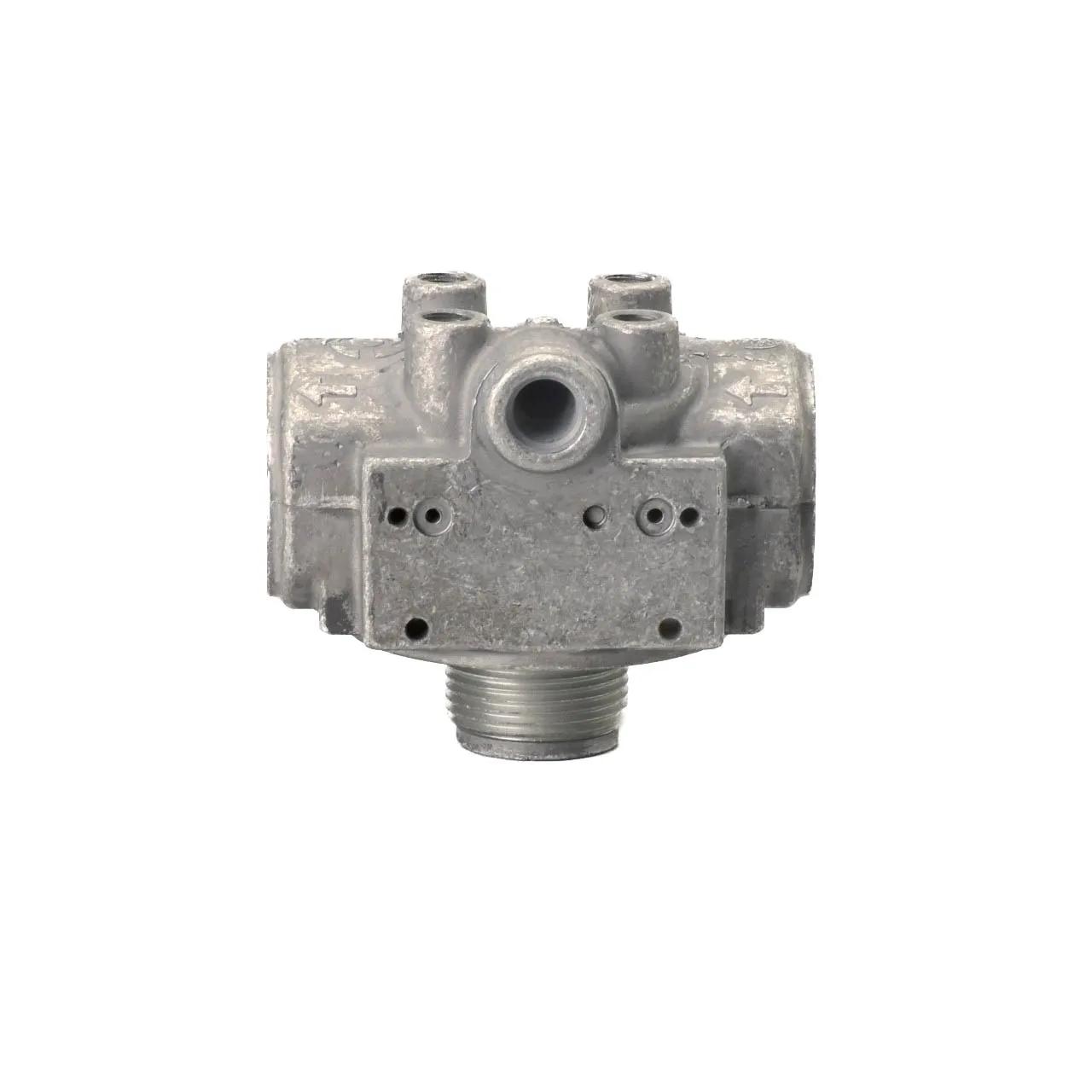

HEAD ASSEMBLY, HMK04 DURAMAX
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1,7 bar |
| Filter-to-Head Thread | 1 3/8-12 UN |
| Height | 3-1/8 in (7.95 cm) |
| Inlet Size | SAE-12 |
| Length | 4 in (10.16 cm) |
| Outer Diameter | SAE-12 |
| Outlet Size | SAE-12 |
| Series | HMK04/24 |
| Length Range | 4 to 4.99 in |
Specifications
| Body Length | 19-19/64 in (49.02 cm) |
Interchanges & Equivalent parts:
| OB8721 |
| 83976539 |
| E8NND885AA |
| 839765390 |
| 9437100631 |
| 4418912 |
| 26838866 |
| 138397 |
| 138397AC |
| 2404218 |
| 273440001 |
| DN P167473 |
| DN P167473 |
| 04418912 |
| 042557 |
| 2191-P167473 |
| DONP167473 |
| 42557 |
