Head Assy L: 4 in, OD: SAE-12 , H: 3,39 in
#DONP166387
Product Overview

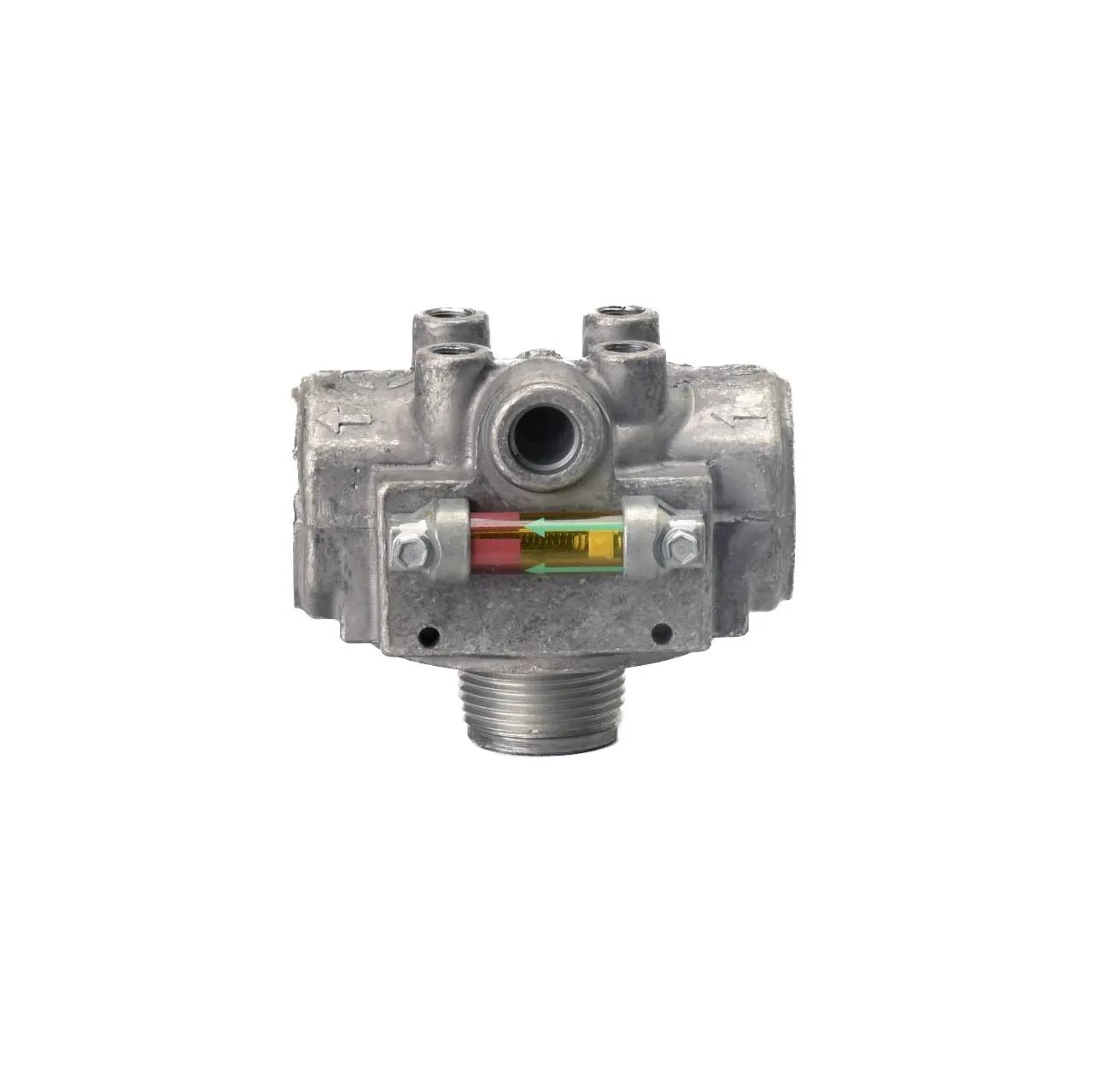

HEAD ASSEMBLY, HMK04 DURAMAX
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Bypass Valve | Oui |
| Bypass Valve Setting LR | 1,7 bar |
| Filter-to-Head Thread | 1 3/8-12 UN |
| Height | 3-25/64 po (8,61 cm) |
| Inlet Size | SAE-12 |
| Length | 4 po (10,16 cm) |
| Outer Diameter | SAE-12 |
| Outlet Size | SAE-12 |
| Series | HMK04/24 |
| Length Range | 4 à 4.99 po |
Specifications
| Body Length | 11-49/64 in (29.9 cm) |
Interchanges & Equivalent parts:
| OB8722 |
| 1183960 |
| P472404 |
| VA22610001 |
| VA31160019 |
| 138397A |
| 42557 |
| DN P166387 |
| DN P166387 |
| 2191-P166387 |
| DONP166387 |
| 99256 |
