Head Assy L: 4 in, OD: SAE-16 , H: 3,38 in
#DONP163681
Product Overview

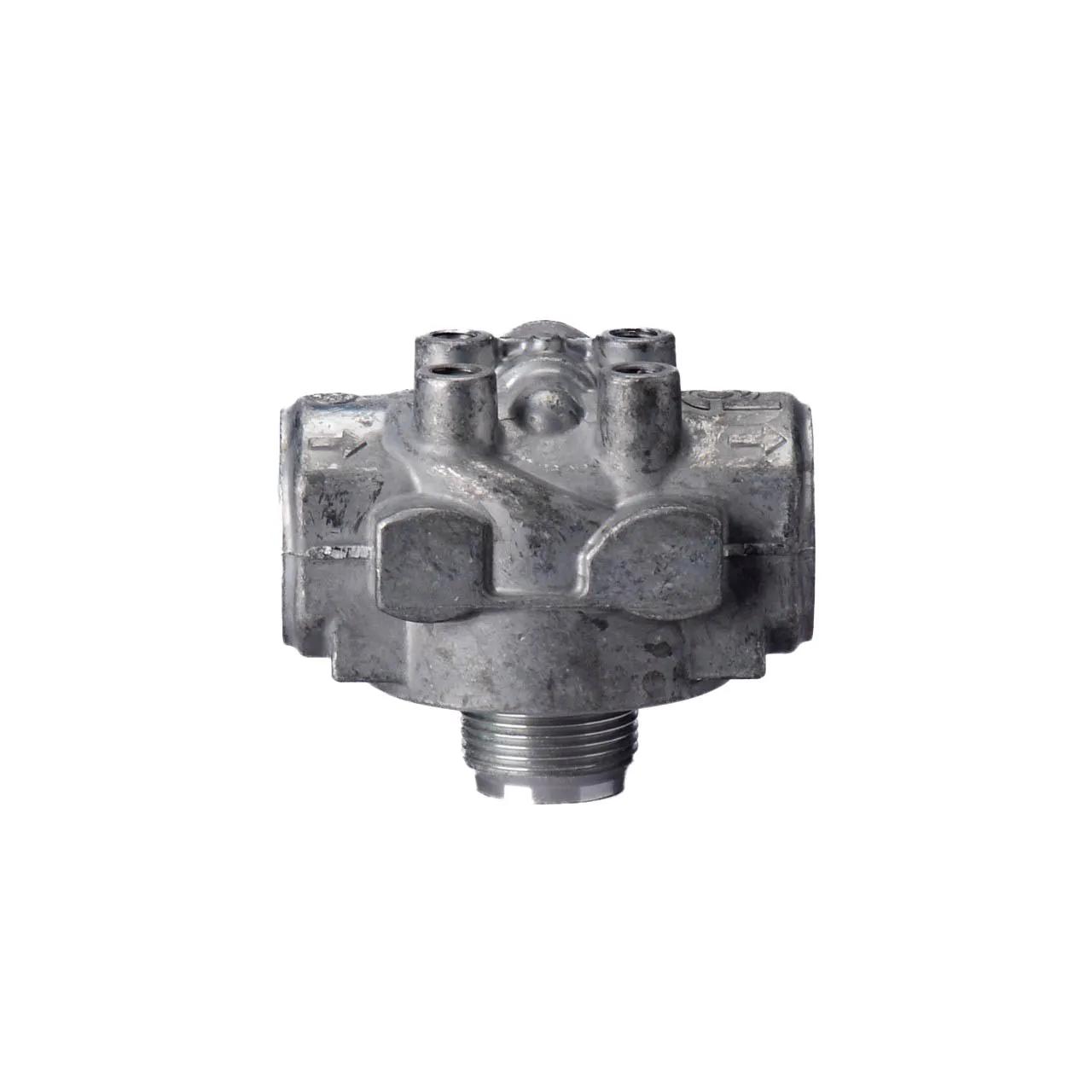

HEAD ASSEMBLY, HMK04 DURAMAX
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 24.66 psi (1.7 bar) |
| Family | HMK04 |
| Filter-to-Head Thread | 1 3/8-12 UN |
| Height | 3-3/8 in (8.59 cm) |
| Inlet Size | SAE-16 |
| Length | 4 in (10.16 cm) |
| Outer Diameter | SAE-16 |
| Outlet Size | SAE-16 |
| Series | HMK04/24 |
| Length Range | 4 to 4.99 in |
Interchanges & Equivalent parts:
| P163681 |
| OB8741 |
| 8FL20027 |
| 76092860 |
| KCY070A |
| 157946 |
| 1514315 |
| 1001081318 |
| 999999999999901 |
| 1000000000000000 |
| 26838865 |
| 8532933 |
| 38588 |
| 038588 |
| 2191-P163681 |
| DONP163681 |
| DN P163681 |
| DN P163681 |
